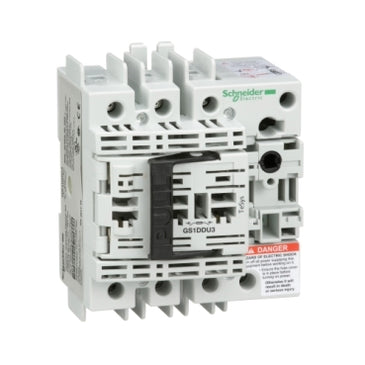

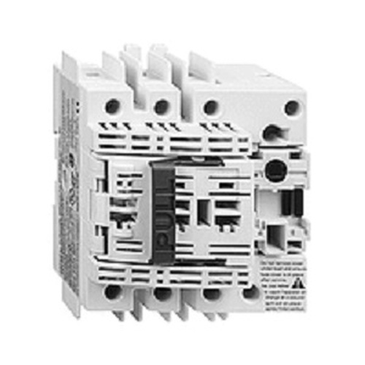

Disconnect Switch, fuse body GS1,TeSys GS,3 poles, UL, 30 A,fuse size CC
TeSys GS fuse switch-disconnector, 3 poles (3P), 30A/800V, to be used with class CC fuse links up to 30A, for motor applications up to 15kW@400V AC-23. To be equipped with a direct operating handle GS1AH106 (to be ordered separately), or with an external front side mounting operating handle (several models available). It provides screw terminals with 3P terminal shrouds, high short circuit current rating 100kA@600V. Add-on auxiliary contact modules front mounting GS1AM (early-break and position signaling) can complete the assembly (to be ordered separately). UL/CSA certified, Green Premium compliant (RoHS/REACh).Specifications
- range
- TeSys
- product name
- TeSys GS
- device short name
- GS1 DD
- Product or Component Type
- Switch-disconnector-fuse
- Device Application
- Protection
- design
- Compact
- poles description
- 3P
- protected poles description
- 3t
- contacts type and composition
- 3 NO
- [Ith] conventional free air thermal current
- 30 A 104 °F (40 °C)
- [Ie] rated operational current
- 30 A
- fuse type
- UL
- fuse size
- CC
- network type
- AC;DC
- Network Frequency
- 50/60 Hz
- type of operating handle
- External frontal;Direct frontal
- Mounting Support
- Rail;Plate
- [Ui] rated insulation voltage
- 690 V
- [Uimp] rated impulse withstand voltage
- 8 kV
- rated operational power in W
- 15 kW 400 V;18.5 kW 500 V;25 kW 690 V
- short-circuit withstand
- 5.5 kA
- mechanical durability
- 10000 cycles
- electrical durability
- 6000 cycles
- connections - terminals
- Power circuit lugs-ring terminals 0.00…0.01 in² (2…6 mm²)
- tightening torque
- Power circuit 26.55 lbf.in (3 N.m)
- Standards
- UL 489;CSA C22.2 No 5
- Product Certifications
- LROS (Lloyds register of shipping);LOVAG;ASEFA
- IP degree of protection
- IP20 IEC 60529 with terminal cover)
- Ambient air temperature for operation
- -4…158 °F (-20…70 °C)
- Ambient Air Temperature for Storage
- -40…176 °F (-40…80 °C)
- fire resistance
- 1760 °F (960 °C) body IEC 60695-2-1
- Height
- 4.57 in (116 mm)
- Width
- 3.82 in (97 mm)
- Depth
- 3.29 in (83.5 mm)
- Net Weight
- 1.32 lb(US) (0.6 kg)
- Category
- 22640-IEC DISCONNECT-GS1;LK3
- Discount Schedule
- I11
- GTIN
- 3389110179538
- Returnability
- Yes
- Country of origin
- FR
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 4.88 in (12.400 cm)
- Package 1 Width
- 5.67 in (14.400 cm)
- Package 1 Length
- 7.09 in (18.000 cm)
- Package 1 Weight
- 19.40 oz (550 g)
- Unit Type of Package 2
- S03
- Number of Units in Package 2
- 8
- Package 2 Height
- 11.81 in (30.000 cm)
- Package 2 Width
- 11.81 in (30.000 cm)
- Package 2 Length
- 15.75 in (40.000 cm)
- Package 2 Weight
- 10.75 lb(US) (4.875 kg)
- Unit Type of Package 3
- P06
- Number of Units in Package 3
- 64
- Package 3 Height
- 29.53 in (75.000 cm)
- Package 3 Width
- 23.62 in (60.000 cm)
- Package 3 Length
- 31.50 in (80.000 cm)
- Package 3 Weight
- 119.50 lb(US) (54.204 kg)
- Warranty
- 18 months
