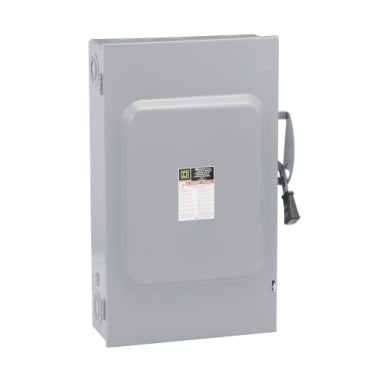

DU324 | Single Throw Safety Switch, GD, 240V, 200A, 3P, NEMA 1 | Square D by Schneider Electric

Square D | DU324
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to DU324

Documents and manuals

Square D DU324 Documents

Overview

Details for DU324

Single Throw Safety Switch, GD, 240V, 200A, 3P, NEMA 1

Single Throw Safety Switch
  • Line Rated Current: 200A
  • Enclosure Rating: NEMA 1
  • Disconnect Type: Non-fusible disconnect
  • Mounting Type: Surface
  • Number of Poles: 3
  • Electrical Connection: Lugs
  • Duty Rating: General duty
General duty safety switches are designed for residential and commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. They are suitable for use as service equipment when equipped with a factory-installed neutral assembly or field-installed service grounding kit, as applicable. General duty safety switches are UL® Listed, and meet or exceed the NEMA® Standard KS1. This Single Throw Safety Switch which has a rated current of 200A with a NEMA 1 degree of protection. This non-fusible disconnect switch comes with no neutral. This general duty switch is a 3-pole, 240VAC has a short circuit rating of 100kA and is surface mounted. This switch has lugs for an electrical connection which will accept AWG 6/250 kcmil, aluminum/copper. This switch is certified to UL standards. Dimensions for this product are 29 in (H), 19 in (W), 8.25 in (D). General Duty safety switches come with an 18 months warranty.

Specifications

Product
Single Throw Safety Switch
Duty Rating
General duty
Device Application
Residential
Disconnect Type
Non-fusible disconnect switch
Factory Installed Neutral
None
Phase
3 phase
Number of Poles
3
Current Rating
200 A
Voltage Rating
240 V AC
Enclosure Rating NEMA
NEMA 1
Motor power hp
15 hp at 240 V AC 60 Hz for 1 phase motors;60 hp at 240 V AC 60 Hz for 3 phase motors
Mounting Type
Surface
Electrical Connection
Lugs
wiring configuration
3-wire
Wire Size
AWG 6...250 kcmil aluminium/copper
tightening torque
275 lbf.in (31.07 N.m) (AWG 6...250 kcmil)
Depth
8.25 in (209.55 mm)
Width
19 in (482.60 mm)
Height
29 in (736.60 mm)
Net Weight
52.01 lb(US) (23.59 kg)
Certifications
UL listed file E2875
Category
00006-D & DU SW;NEMA1;30-200A
Discount Schedule
DE1A
GTIN
785901491866
Returnability
Yes
Country of origin
US
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
8.50 in (21.59 cm)
Package 1 Width
19.40 in (49.276 cm)
Package 1 Length
30.70 in (77.978 cm)
Package 1 Weight
39.90 lb(US) (18.098 kg)
Unit Type of Package 2
PAL
Number of Units in Package 2
15
Package 2 Height
46.50 in (118.11 cm)
Package 2 Width
40.00 in (101.6 cm)
Package 2 Length
50.00 in (127.0 cm)
Package 2 Weight
630.00 lb(US) (285.763 kg)
Warranty
18 months
