DU322 | SWITCH NOT FUSIBLE GD 240V 60A 3P NEMA1 | Square D by Schneider Electric

Brand: Square DSKU: DU322

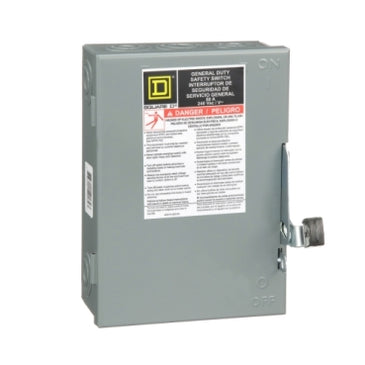

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to DU322

Jump to: Overview & Specifications Reviews

Overview Details for DU322

SWITCH NOT FUSIBLE GD 240V 60A 3P NEMA1

SWITCH NOT FUSIBLE GD

Current Rating : 60 A
Enclosure Rating : NEMA 1
Number of Poles : 3
Voltage Rating : 240 V AC

General duty safety switches are designed for residential and commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. They are suitable for use as service equipment when equipped with a factory-installed neutral assembly or field-installed service grounding kit, as applicable. General duty safety switches are UL® Listed, and meet or exceed the NEMA® Standard KS1. This Single Throw Safety Switch which has a rated current of 60A with a NEMA 1 degree of protection. This non-fusible disconnect switch comes with no neutral. This general duty switch is a 3-pole, 240VAC has a short circuit rating of 100kA and is surface mounted. This switch has lugs for an electrical connection which will accept AWG 12 AWG 3, aluminum & AWG 14 AWG 3, copper. This switch is certified to UL standards. Dimensions for this product are 9.25 in (H), 7.25 in (W), 3.63 in (D). General Duty safety switches come with an 18 months warranty.

Specifications

Product: Single Throw Safety Switch
Duty Rating: General duty
Device Application: Residential
Disconnect Type: Non-fusible disconnect switch
Factory Installed Neutral: None
Phase: 3 phase
Number of Poles: 3
Current Rating: 60 A
Voltage Rating: 240 V AC
Enclosure Rating NEMA: NEMA 1
Maximum Horse Power Rating: 10 hp 240 V at AC 60 Hz for 1 phase conforming to NEC 430.52;15 hp 240 V at AC 60 Hz for 3 phase conforming to NEC 430.52
Mounting Type: Surface
Electrical Connection: Lugs
wiring configuration: 3-wire
Wire Size: AWG 12...AWG 3 aluminium;AWG 14...AWG 3 copper
tightening torque: 35 lbf.in (3.95 N.m) 0.00…0.01 in² (2.08…5.26 mm²) (AWG 14...AWG 10);35 lbf.in (3.95 N.m) (AWG 14...AWG 10);45 lbf.in (5.08 N.m) 0.01 in² (8.37 mm²) (AWG 8);45 lbf.in (5.08 N.m) 0.02…0.03 in² (12.3…21.12 mm²) (AWG 6...AWG 4);50 lbf.in (5.65 N.m) 0.04 in² (26.67 mm²) (AWG 3)
Depth: 3.63 in (92.20 mm)
Width: 7.25 in (184.15 mm)
Height: 9.25 in (234.95 mm)
Net Weight: 19.84 lb(US) (9 kg)
Certifications: UL listed file E2875
Category: 00006-D & DU SW;NEMA1;30-200A
Discount Schedule: DE1A
GTIN: 785901491743
Returnability: Yes
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 5.20 in (13.208 cm)
Package 1 Width: 6.80 in (17.272 cm)
Package 1 Length: 9.30 in (23.622 cm)
Package 1 Weight: 4.30 lb(US) (1.95 kg)
Unit Type of Package 2: PAL
Number of Units in Package 2: 200
Package 2 Height: 43.50 in (110.49 cm)
Package 2 Width: 40.00 in (101.6 cm)
Package 2 Length: 48.00 in (121.92 cm)
Package 2 Weight: 950.00 lb(US) (430.912 kg)
Unit Type of Package 3: CAR
Number of Units in Package 3: 5
Package 3 Height: 10.10 in (25.654 cm)
Package 3 Width: 8.60 in (21.844 cm)
Package 3 Length: 19.10 in (48.514 cm)
Package 3 Weight: 22.45 lb(US) (10.183 kg)
Warranty: 18 months
