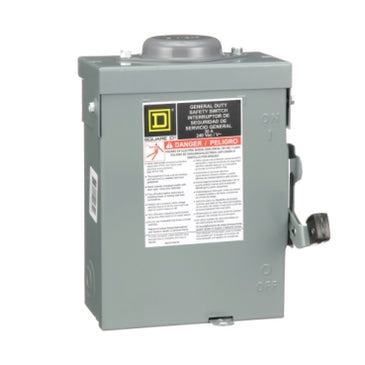

DU221RB | Single Throw Safety Switch, GD, 240V, 30A, 2P, NEMA 3R | Square D

Single Throw Safety Switch, GD, 240V, 30A, 2P, NEMA 3R

Single Throw Safety Switch

• Line Rated Current: 30A
• Enclosure Rating: NEMA 3R
• Disconnect Type: Non-fusible disconnect
• Mounting Type: Surface
• Number of Poles: 2
• Electrical Connection: Lugs
• Duty Rating: General duty

General duty safety switches are designed for residential and commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. They are suitable for use as service equipment when equipped with a factory-installed neutral assembly or field-installed service grounding kit, as applicable. General duty safety switches are UL® Listed, and meet or exceed the NEMA® Standard KS1. This Single Throw Safety Switch which has a rated current of 30A with a NEMA 3R degree of protection. This non-fusible disconnect switch comes with no neutral. This general duty switch is a 2-pole, 240VAC has a short circuit rating of 10kA and is surface mounted. This switch has lugs for an electrical connection which will accept AWG 14 AWG 6, copper & AWG 12 AWG 6, aluminum. This switch is certified to UL standards. Dimensions for this product are 9.63 in (H), 7.75 in (W), 3.75 in (D). General Duty safety switches come with an 18 months warranty.
