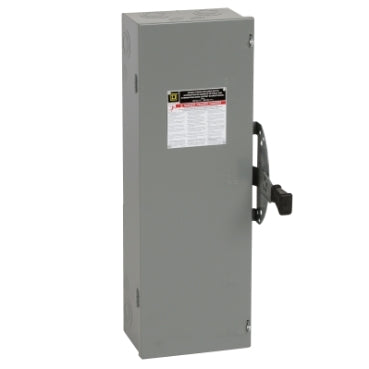

DTU362 | SWITCH NOT FUSIBLE DT N1, 600V, 60A, 3P | Square D by Schneider Electric

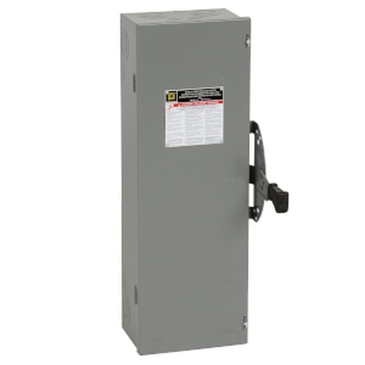

Square D | DTU362
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to DTU362

Documents and manuals

Square D DTU362 Documents

Overview

Details for DTU362

SWITCH NOT FUSIBLE DT N1, 600V, 60A, 3P

The Square D™ by Schneider Electric brand Double Throw Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. Double throw safety switches are designed for Residential, light commercial, and industrial installations. Double throw safety switches transfer a load from one power source to another power source. 30A-100A F Series safety switches provide significantly higher levels of mechanical endurance than NEMA KS-1 or UL98 standards require and switches can be field-converted to transfer a power source from one load to another. These switches come in fusible or non-fusible configurations and can be padlocked in the ON-OFF positions. This Double Throw Safety Switch has a rated current of 60A. This non-fusible disconnect switch is surface mounted and has a NEMA 1 protection rating. This Double Throw Safety Switch complies to UL listed certifications. Dimensions for this product are 11.96 in (H),29.94 in (W), 6.93 in (D). This product comes with an 18 month warranty.

Specifications

Product
Double Throw Safety Switch
Duty Rating
Heavy duty
Disconnect Type
Non-fusible disconnect switch
Factory Installed Neutral
None
Number of Poles
3
Current Rating
60 A
Voltage Rating
600 V AC;600 V DC
Enclosure Rating
NEMA 1
Maximum Horse Power Rating
10 hp 240 V at AC 50-60 Hz for 1 phase conforming to NEC 240.6;20 hp 240 V at AC 50-60 Hz for 3 phase conforming to NEC 430.52;25 hp 480 V at AC 50-60 Hz for 1 phase conforming to NEC 240.6;50 hp 480 V at AC 50-60 Hz for 3 phase conforming to NEC 430.52;30 hp 600 V at AC 50-60 Hz for 1 phase conforming to NEC 240.6;60 hp 600 V at AC 50-60 Hz for 3 phase conforming to NEC 430.52;10 hp 250 V at DC;30 hp 600 V at DC
short-circuit current
10 kA H or K;200 kA R;J or T
fuse type
H or K;R;J or T
Mounting Type
Surface
Wire Size
AWG 12...AWG 2 aluminium;AWG 14...AWG 2 copper
tightening torque
35 lbf.in (3.95 N.m) 0.00…0.01 in² (2.06…5.26 mm²) (AWG 14...AWG 10);40 lbf.in (4.52 N.m) 0.01 in² (8.37 mm²) (AWG 8);45 lbf.in (5.08 N.m) 0.02…0.03 in² (13.3…21.15 mm²) (AWG 6...AWG 4);50 lbf.in (5.65 N.m) 0.04…0.05 in² (26.67…33.62 mm²) (AWG 3...AWG 2)
Depth
6.93 in (176.02 mm)
Width
11.96 in (303.78 mm)
Height
29.94 in (760.48 mm)
Net Weight
39.00 lb(US) (17.69 kg)
Certifications
UL Listed
Category
00033-DT SWITCH;NEMA1
Discount Schedule
DE1
GTIN
785901308676
Returnability
Yes
Country of origin
US
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
10.30 in (26.162 cm)
Package 1 Width
12.50 in (31.75 cm)
Package 1 Length
33.00 in (83.82 cm)
Package 1 Weight
35.00 lb(US) (15.876 kg)
Warranty
18 months
