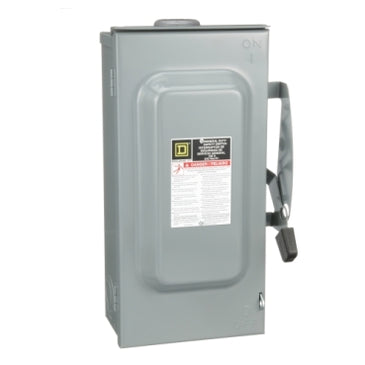

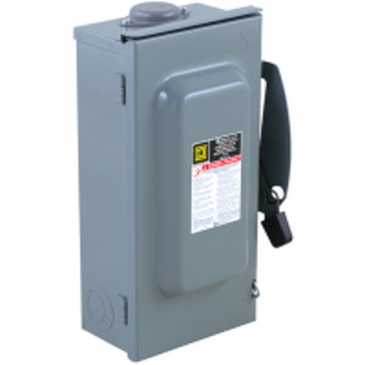

Single Throw Fusible Safety Switch, 100A, NEMA 3R, 3-Poles, 240V

Single Throw Safety Switch
  • Line Rated Current: 100A
  • NEMA Degree of Protection: NEMA 3R
  • Disconnector Device Type: Fusible disconnect
  • Number of Poles: 3-Poles
  • 240V
  • Electrical Connection: Lugs
General duty safety switches are designed for residential and commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. They are suitable for use as service equipment when equipped with a factory installed neutral assembly or field installed service grounding kit. This general duty single throw safety switch is a three pole, 100A, fusible disconnect with a 240VAC voltage rating. This switch has a factory installed neutral and a NEMA 3R enclosure and is surface mounted. This safety switch accepts H, K, or R fuses. This switch comes with lugs suitable for aluminum or copper conductors. This safety switch accepts H, K, or R fuses. These general duty switches are UL listed.

Specifications

Product
Single Throw Safety Switch
Duty Rating
General duty
Device Application
Residential
Disconnect Type
Fusible disconnect switch
Factory Installed Neutral
Neutral (factory installed)
Phase
3 phase
Number of Poles
3
Current Rating
100 A
Voltage Rating
240 V AC
Enclosure Rating NEMA
NEMA 3R
Maximum Horse Power Rating
7.5 hp 240 V at AC 60 Hz for 1 phase conforming to NEC 240.6;15 hp 240 V at AC 60 Hz for 3 phase conforming to NEC 240.6;15 hp 240 V at AC 60 Hz for 1 phase conforming to NEC 430.52;30 hp 240 V at AC 60 Hz for 3 phase conforming to NEC 430.52
Short Circuit Current Rating
100 kA maximum depending on fuse H;K or R
fuse type
H;K or R
Mounting Type
Surface
Electrical Connection
Lugs
wiring configuration
4-wire (3PH + G)
Wire Size
AWG 14...AWG 1 copper;AWG 12...AWG 1 aluminium
tightening torque
35 lbf.in (3.95 N.m) 0.00…0.01 in² (2.08…5.26 mm²) (AWG 14...AWG 10);35 lbf.in (3.95 N.m) (AWG 14...AWG 10);40 lbf.in (4.52 N.m) 0.01 in² (8.37 mm²) (AWG 8);45 lbf.in (5.08 N.m) 0.02…0.03 in² (12.3…21.12 mm²) (AWG 6...AWG 4);50 lbf.in (5.65 N.m) (AWG 3...AWG 1)
Depth
6.5 in (165.10 mm)
Width
10.5 in (266.70 mm)
Height
17.5 in (444.50 mm)
Net Weight
17.00 lb(US) (7.71 kg)
Certifications
UL listed file E2875
Category
00106-D & DU SW;NEMA3R;30-200A
Discount Schedule
DE1A
GTIN
785901461401
Returnability
Yes
Country of origin
US
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
7.40 in (18.796 cm)
Package 1 Width
10.80 in (27.432 cm)
Package 1 Length
20.20 in (51.308 cm)
Package 1 Weight
16.05 lb(US) (7.28 kg)
Unit Type of Package 2
PAL
Number of Units in Package 2
40
Package 2 Height
41.00 in (104.14 cm)
Package 2 Width
40.00 in (101.6 cm)
Package 2 Length
48.00 in (121.92 cm)
Package 2 Weight
674.00 lb(US) (305.721 kg)
Warranty
18 months
