D322NRB | Single Throw Fusible Safety Switch, 60A, NEMA 3R, 3-Poles, 240V | Square D by Schneider Electric

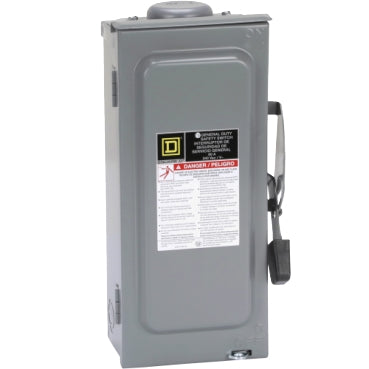

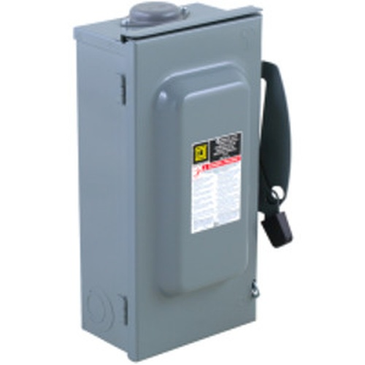

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to D322NRB
Overview
Details for D322NRB
Single Throw Fusible Safety Switch, 60A, NEMA 3R, 3-Poles, 240V
Single Throw Safety Switch- Line Rated Current: 60A
- NEMA Degree of Protection: NEMA 3R
- Disconnector Device Type: Fusible disconnect
- Number of Poles: 3-Poles
- 240V
- Electrical Connection: Lugs
Specifications
- Product
- Single Throw Safety Switch
- Duty Rating
- General duty
- Device Application
- Residential
- Disconnect Type
- Fusible disconnect switch
- Factory Installed Neutral
- Neutral (factory installed)
- Phase
- 3 phase
- Number of Poles
- 3
- Current Rating
- 60 A
- Voltage Rating
- 240 V AC
- Enclosure Rating NEMA
- NEMA 3R
- Maximum Horse Power Rating
- 1.5 hp 120 V at AC 60 Hz for 1 phase conforming to NEC 240.6;3 hp 120 V at AC 60 Hz for 3 phase conforming to NEC 430.52;3 hp 240 V at AC 60 Hz for 1 phase conforming to NEC 240.6;7.5 hp 240 V at AC 60 Hz for 3 phase conforming to NEC 240.6;10 hp 240 V at AC 60 Hz for 1 phase conforming to NEC 430.52;15 hp 240 V at AC 60 Hz for 3 phase conforming to NEC 430.52
- Short Circuit Current Rating
- 100 kA maximum depending on fuse H;K or R
- fuse type
- H;K or R
- Mounting Type
- Surface
- Electrical Connection
- Lugs
- wiring configuration
- 4-wire (3PH + G)
- Wire Size
- AWG 12...AWG 3 aluminium;AWG 14...AWG 3 copper
- tightening torque
- 35 lbf.in (3.95 N.m) 0.00…0.01 in² (2.08…5.26 mm²) (AWG 14...AWG 10);35 lbf.in (3.95 N.m) (AWG 14...AWG 10);45 lbf.in (5.08 N.m) 0.01 in² (8.37 mm²) (AWG 8);45 lbf.in (5.08 N.m) 0.02…0.03 in² (12.3…21.12 mm²) (AWG 6...AWG 4);50 lbf.in (5.65 N.m) 0.04 in² (26.67 mm²) (AWG 3)
- Depth
- 4.87 in (123.70 mm)
- Width
- 7.45 in (189.23 mm)
- Height
- 14.88 in (377.95 mm)
- Net Weight
- 9.92 lb(US) (4.5 kg)
- Certifications
- UL listed file E2875
- Category
- 00106-D & DU SW;NEMA3R;30-200A
- Discount Schedule
- DE1A
- GTIN
- 785901461289
- Returnability
- Yes
- Country of origin
- US
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 5.20 in (13.208 cm)
- Package 1 Width
- 7.80 in (19.812 cm)
- Package 1 Length
- 16.30 in (41.402 cm)
- Package 1 Weight
- 8.54 lb(US) (3.874 kg)
- Unit Type of Package 2
- PAL
- Number of Units in Package 2
- 120
- Package 2 Height
- 46.00 in (116.84 cm)
- Package 2 Width
- 40.00 in (101.6 cm)
- Package 2 Length
- 48.00 in (121.92 cm)
- Package 2 Weight
- 1056.00 lb(US) (478.993 kg)
- Warranty
- 18 months
