D322N | SWITCH FUSIBLE GD 240V, 60A, 3P,100kA, NEMA1 | Square D by Schneider Electric

Brand: Square DSKU: D322N

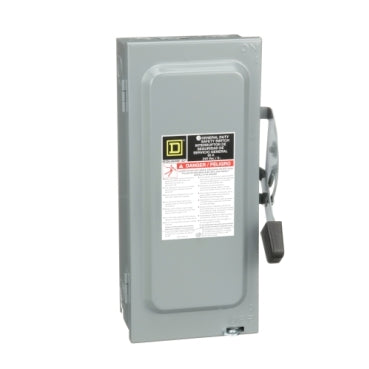

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to D322N

Jump to: Overview & Specifications Reviews

Overview Details for D322N

SWITCH FUSIBLE GD 240V, 60A, 3P,100kA, NEMA1

General duty safety switches are designed for residential and commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. They are suitable for use as service equipment when equipped with a factory-installed neutral assembly or field-installed service grounding kit, as applicable. General duty safety switches are UL® Listed, and meet or exceed the NEMA® Standard KS1. This Single Throw Safety Switch which has a rated current of 60A with a NEMA 1 degree of protection. This fusible disconnect switch comes with a neutral (factory installed). This general duty switch is a 3-pole, 240VAC has a short circuit rating of 100kA and is surface mounted. This switch has lugs for an electrical connection which will accept AWG 12 AWG 3, aluminum & AWG 14 AWG 3, copper. This switch is certified to UL standards. Dimensions for this product are 14.88 in (H), 7.45 in (W), 4.87 in (D). General Duty safety switches come with an 18 months warranty.

Specifications

Product: Single Throw Safety Switch
Duty Rating: General duty
Device Application: Residential
Disconnect Type: Fusible disconnect switch
Factory Installed Neutral: Neutral (factory installed)
Phase: 3 phase
Number of Poles: 3
Current Rating: 60 A
Voltage Rating: 240 V AC
Enclosure Rating NEMA: NEMA 1
Maximum Horse Power Rating: 1.5 hp 120 V at AC 60 Hz for 1 phase conforming to NEC 240.6;3 hp 120 V at AC 60 Hz for 3 phase conforming to NEC 430.52;3 hp 240 V at AC 60 Hz for 1 phase conforming to NEC 240.6;7.5 hp 240 V at AC 60 Hz for 3 phase conforming to NEC 240.6;10 hp 240 V at AC 60 Hz for 1 phase conforming to NEC 430.52;15 hp 240 V at AC 60 Hz for 3 phase conforming to NEC 430.52
Short Circuit Current Rating: 100 kA maximum depending on fuse H;K or R
fuse type: H;K or R
Mounting Type: Surface
Electrical Connection: Lugs
wiring configuration: 4-wire (3PH + G)
Wire Size: AWG 12...AWG 3 aluminium;AWG 14...AWG 3 copper
tightening torque: 35 lbf.in (3.95 N.m) 0.00…0.01 in² (2.08…5.26 mm²) (AWG 14...AWG 10);45 lbf.in (5.08 N.m) 0.01 in² (8.37 mm²) (AWG 8);45 lbf.in (5.08 N.m) 0.02…0.03 in² (12.3…21.12 mm²) (AWG 6...AWG 4);50 lbf.in (5.65 N.m) 0.04 in² (26.67 mm²) (AWG 3)
Depth: 4.87 in (123.70 mm)
Width: 7.45 in (189.23 mm)
Height: 14.88 in (377.95 mm)
Net Weight: 8.82 lb(US) (4 kg)
Certifications: UL listed file E2875
Category: 00006-D & DU SW;NEMA1;30-200A
Discount Schedule: DE1A
GTIN: 785901461234
Returnability: Yes
Country of origin: US
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 5.20 in (13.208 cm)
Package 1 Width: 7.60 in (19.304 cm)
Package 1 Length: 16.20 in (41.148 cm)
Package 1 Weight: 7.93 lb(US) (3.597 kg)
Unit Type of Package 2: PAL
Number of Units in Package 2: 120
Package 2 Height: 45.50 in (115.57 cm)
Package 2 Width: 40.00 in (101.6 cm)
Package 2 Length: 48.00 in (121.92 cm)
Package 2 Weight: 982.00 lb(US) (445.427 kg)
Warranty: 18 months
