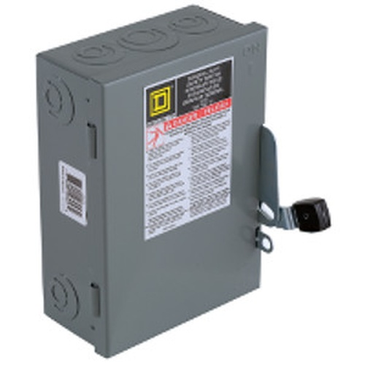

D321N | Single Throw Fusible Safety Switch, 30A, NEMA 1, 3-Poles, 240V | Square D by Schneider Electric

Brand: Square DSKU: D321N

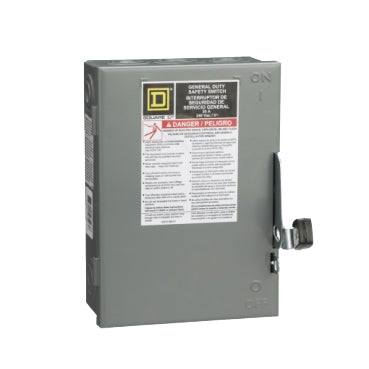

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to D321N

Jump to: Overview & Specifications Reviews

Overview Details for D321N

Single Throw Fusible Safety Switch, 30A, NEMA 1, 3-Poles, 240V

Single Throw Safety Switch

Line Rated Current: 30A
NEMA Degree of Protection: NEMA 1
Disconnector Device Type: Fusible disconnect
Number of Poles: 3-Poles
240V
Electrical Connection: Lugs

General duty safety switches are designed for residential and commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. They are suitable for use as service equipment when equipped with a factory-installed neutral assembly or field-installed service grounding kit, as applicable. General duty safety switches are UL® Listed, and meet or exceed the NEMA® Standard KS1. This Single Throw Safety Switch which has a rated current of 30A with a NEMA 1 degree of protection. This fusible disconnect switch comes with a neutral (factory installed). This general duty switch is a 3-pole, 240VAC has a short circuit rating of 100kA and is surface mounted. This switch has lugs for an electrical connection which will accept AWG 14 AWG 6, copper & AWG 12 AWG 6, aluminum. This switch is certified to UL standards. Dimensions for this product are 9.25 in (H), 7.25 in (W), 3.63 in (D). General Duty safety switches come with an 18 months warranty.

Specifications

Product: Single Throw Safety Switch
Duty Rating: General duty
Device Application: Residential
Disconnect Type: Fusible disconnect switch
Factory Installed Neutral: Neutral (factory installed)
Phase: 3 phase
Number of Poles: 3
Current Rating: 30 A
Voltage Rating: 240 V AC
Enclosure Rating NEMA: NEMA 1
Motor power hp: 1.5 hp at 240 V AC 60 Hz for 1 phase motors;3 hp at 240 V AC 60 Hz for 3 phase motors;3 hp at 240 V AC 60 Hz for 1 phase motors;7.5 hp at 240 V AC 60 Hz for 3 phase motors
Short Circuit Current Rating: 100 kA maximum depending on fuse H;K or R
fuse type: H;K or R
Mounting Type: Surface
Electrical Connection: Lugs
wiring configuration: 4-wire (3PH + G)
Wire Size: AWG 14...AWG 6 copper;AWG 12...AWG 6 aluminium
tightening torque: 30 lbf.in (3.39 N.m) 0.00…0.02 in² (2.08…13.3 mm²) (AWG 14...AWG 6)
Depth: 3.63 in (92.20 mm)
Width: 7.25 in (184.15 mm)
Height: 9.25 in (234.95 mm)
Net Weight: 19.84 lb(US) (9 kg)
Certifications: UL listed file E2875
Category: 00006-D & DU SW;NEMA1;30-200A
Discount Schedule: DE1A
GTIN: 785901461036
Returnability: Yes
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 5.20 in (13.208 cm)
Package 1 Width: 6.80 in (17.272 cm)
Package 1 Length: 9.20 in (23.368 cm)
Package 1 Weight: 4.45 lb(US) (2.019 kg)
Unit Type of Package 2: CAR
Number of Units in Package 2: 10
Package 2 Height: 9.90 in (25.146 cm)
Package 2 Width: 8.90 in (22.606 cm)
Package 2 Length: 19.30 in (49.022 cm)
Package 2 Weight: 23.25 lb(US) (10.546 kg)
Unit Type of Package 3: PAL
Number of Units in Package 3: 150
Package 3 Height: 40.00 in (101.6 cm)
Package 3 Width: 40.00 in (101.6 cm)
Package 3 Length: 48.00 in (121.92 cm)
Package 3 Weight: 699.00 lb(US) (317.061 kg)
Warranty: 18 months
