D221N | Single Throw Fusible Safety Switch, 30A, NEMA 1, 2-Poles, 240V | Square D by Schneider Electric

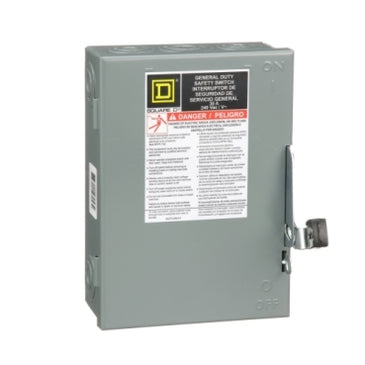

Square D | D221N
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to D221N

Documents and manuals

Square D D221N Documents

Overview

Details for D221N

Single Throw Fusible Safety Switch, 30A, NEMA 1, 2-Poles, 240V

Single Throw Fusible Safety Switch
  • Line rated Current: 30A
  • Degree of Protection: NEMA 1
  • Number of Poles: 2-Poles
  • 240V
  • Short-circuit Current: 100kA maximum depending on fuse H, K, or R
  • Device Mounting: Surface
  • Electrical Connection: Lugs
General duty safety switches are designed for residential and commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. They are suitable for use as service equipment when equipped with a factory-installed neutral assembly or field-installed service grounding kit, as applicable. General duty safety switches are UL® Listed, and meet or exceed the NEMA® Standard KS1. This Single Throw Safety Switch which has a rated current of 30A with a NEMA 1 degree of protection. This fusible disconnect switch comes with a neutral (factory installed). This general duty switch is a 2-pole, 240VAC has a short circuit rating of 100kA and is surface mounted. This switch has lugs for an electrical connection which will accept AWG 14 AWG 6, copper & AWG 12 AWG 6, aluminum. This switch is certified to UL standards. Dimensions forThis product are 9.25 in (H), 7.25 in (W), 3.63 in (D). General Duty safety switches come with an 18 months warranty

Specifications

Product
Single Throw Safety Switch
Duty Rating
General duty
Device Application
Residential
Disconnect Type
Fusible disconnect switch
Factory Installed Neutral
Neutral (factory installed)
Phase
3 phase
Number of Poles
2
Current Rating
30 A
Voltage Rating
240 V AC
Enclosure Rating NEMA
NEMA 1
Motor power hp
1.5 hp at 240 V AC 60 Hz for 1 phase motors;3 hp at 240 V AC 60 Hz for 3 phase motors;3 hp at 240 V AC 60 Hz for 1 phase motors;7.5 hp at 240 V AC 60 Hz for 3 phase motors
Short Circuit Current Rating
100 kA maximum depending on fuse H;K or R
fuse type
H;K or R
Mounting Type
Surface
Electrical Connection
Lugs
wiring configuration
3-wire
Wire Size
AWG 14...AWG 6 copper;AWG 12...AWG 6 aluminium
tightening torque
30 lbf.in (3.39 N.m) 0.00…0.02 in² (2.08…13.3 mm²) (AWG 14...AWG 6)
Depth
3.63 in (92.20 mm)
Width
7.25 in (184.15 mm)
Height
9.25 in (234.95 mm)
Net Weight
16.98 lb(US) (7.7 kg)
Certifications
UL listed file E2875
Category
00006-D & DU SW;NEMA1;30-200A
Discount Schedule
DE1A
GTIN
785901460534
Returnability
Yes
Country of origin
MX
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
5.20 in (13.21 cm)
Package 1 Width
6.80 in (17.27 cm)
Package 1 Length
9.20 in (23.36 cm)
Package 1 Weight
4.76 lb(US) (2.16 kg)
Unit Type of Package 2
PAL
Number of Units in Package 2
150
Package 2 Height
5.20 in (13.21 cm)
Package 2 Width
6.80 in (17.27 cm)
Package 2 Length
9.20 in (23.36 cm)
Package 2 Weight
712.64 lb(US) (323.25 kg)
Unit Type of Package 3
CAR
Number of Units in Package 3
5
Package 3 Height
5.20 in (13.21 cm)
Package 3 Width
6.80 in (17.27 cm)
Package 3 Length
9.20 in (23.36 cm)
Package 3 Weight
23.77 lb(US) (10.78 kg)
Warranty
18 months
