D211NRB | SWITCH FUSIBLE GD 120/240V 30A 2P NEMA3R | Square D by Schneider Electric

Brand: Square DSKU: D211NRB

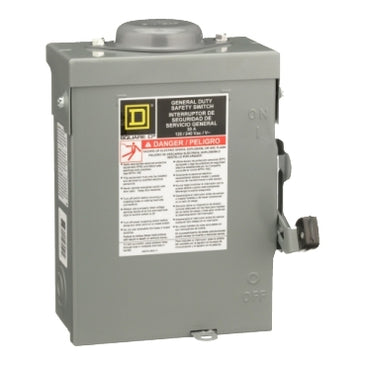

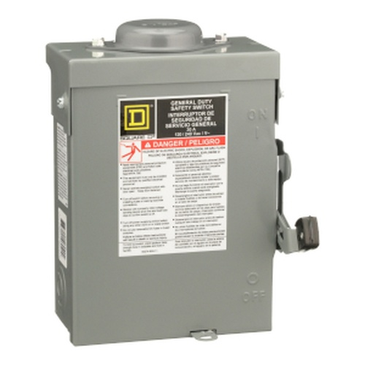

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to D211NRB

Jump to: Overview & Specifications Reviews

Overview Details for D211NRB

SWITCH FUSIBLE GD 120/240V 30A 2P NEMA3R

General duty safety switches are designed for residential and commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. They are suitable for use as service equipment when equipped with a factory installed neutral assembly or field installed service grounding kit. This general duty single throw safety switch is a two pole, 30A, fusible disconnect with a 120VAC voltage rating. This switch has a factory installed neutral and a NEMA 3R enclosure and is surface mounted. This safety switch accepts plug fuses only. This switch comes with lugs suitable for aluminum or copper conductors. This safety switch accepts plug fuses only. These general duty switches are UL listed.

Specifications

Product: Single Throw Safety Switch
Duty Rating: General duty
Device Application: Residential
Disconnect Type: Fusible disconnect switch
Factory Installed Neutral: Neutral (factory installed)
Phase: 3 phase
Number of Poles: 2
Current Rating: 30 A
Voltage Rating: 120 V AC
Enclosure Rating NEMA: NEMA 3R
Motor power hp: 0.5 hp at 120 V AC 60 Hz for 1 phase motors;2 hp at 120 V AC 60 Hz for 1 phase motors;1.5 hp at 240 V AC 60 Hz for 1 phase motors;3 hp at 240 V AC 60 Hz for 1 phase motors
Short Circuit Current Rating: 10 kA plug
fuse type: Plug
Mounting Type: Surface
Electrical Connection: Lugs
wiring configuration: 3-wire
Wire Size: AWG 14...AWG 6 copper;AWG 12...AWG 6 aluminium
tightening torque: 30 lbf.in (3.39 N.m) 0.00…0.02 in² (2.08…13.3 mm²) (AWG 14...AWG 6)
Depth: 3.63 in (92.20 mm)
Width: 7.25 in (184.15 mm)
Height: 9.25 in (234.95 mm)
Net Weight: 22.05 lb(US) (10 kg)
Certifications: UL listed file E2875
Category: 00106-D & DU SW;NEMA3R;30-200A
Discount Schedule: DE1A
GTIN: 785901460404
Returnability: Yes
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 5.20 in (13.208 cm)
Package 1 Width: 7.80 in (19.812 cm)
Package 1 Length: 9.80 in (24.892 cm)
Package 1 Weight: 4.80 lb(US) (2.179 kg)
Unit Type of Package 2: CAR
Number of Units in Package 2: 5
Package 2 Height: 10.80 in (27.432 cm)
Package 2 Width: 10.00 in (25.4 cm)
Package 2 Length: 23.80 in (60.452 cm)
Package 2 Weight: 25.33 lb(US) (11.489 kg)
Unit Type of Package 3: PAL
Number of Units in Package 3: 150
Package 3 Height: 40.00 in (101.6 cm)
Package 3 Width: 40.00 in (101.6 cm)
Package 3 Length: 48.00 in (121.92 cm)
Package 3 Weight: 760.00 lb(US) (344.73 kg)
Warranty: 18 months
