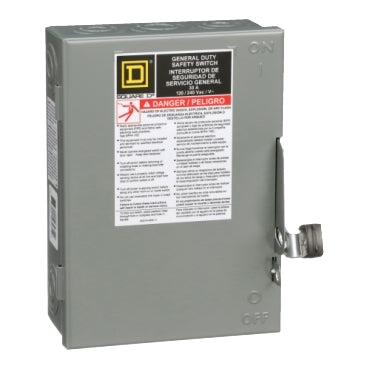

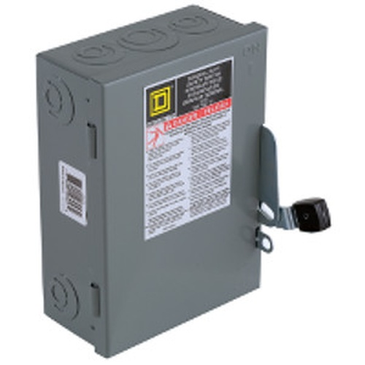

D211N | Single Throw Fusible Safety Switch, 30A, NEMA 1, 2-Poles, 120/240V | Square D by Schneider Electric

Single Throw Fusible Safety Switch, 30A, NEMA 1, 2-Poles, 120/240V

Single Throw Fusible Safety Switch

• Line rated Current: 30A
• Degree of Protection: NEMA 1
• Number of Poles: 2-Poles
• 120/240V
• Short-circuit Current: 10kA plug
• Device Mounting: Surface
• Electrical Connection: Lugs

General duty safety switches are designed for residential and commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. They are suitable for use as service equipment when equipped with a factory-installed neutral assembly or field-installed service grounding kit, as applicable. General duty safety switches are UL® Listed, and meet or exceed the NEMA® Standard KS1. This Single Throw Safety Switch which has a rated current of 30A with a NEMA 1 degree of protection. This fusible disconnect switch comes with a neutral/earth strip 2 x 16 mm² 5 x 6 mm². This general duty switch is a 2-pole, 120 VAC has a short curcuit rating of 10kA and is surface mounted. This switch has lugs for an electrical connection which will accept AWG 14 AWG 6, copper & AWG 12 AWG 6, aluminium. This switch is certified to UL standards Dinemsions for this product are 9.25 in (H), 7.25 in (W), 3.63 in (D). General Duty safety switchs come with an 18 months warranty.
