CA2SKE20T7 | Alternating Relay, TeSys SK control relay- 2 NO - <= 690 V - 480 V AC coil | Square D by Schneider Electric

Brand: Square DSKU: CA2SKE20T7

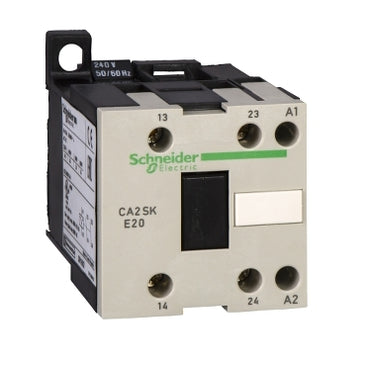

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to CA2SKE20T7

Jump to: Overview & Specifications Reviews

Overview Details for CA2SKE20T7

Alternating Relay, TeSys SK control relay- 2 NO - <= 690 V - 480 V AC coil

Specifications

range: TeSys
product name: TeSys CASK
Product or Component Type: Control relay
device short name: CA2SKE
contactor application: Control circuit
utilisation category: DC-13;AC-15
pole contact composition: 2 NO
[Ue] rated operational voltage: <= 690 V <= 400 Hz
control circuit type: AC 50/60 Hz
[Uc] control circuit voltage: 480 V AC 50/60 Hz
[Ith] conventional free air thermal current: 10 A 131 °F (55 °C)
associated fuse rating: 10 A gL VDE 0660;10 A gL IEC 60947
[Ui] rated insulation voltage: 690 V IEC 60947;690 V VDE 0110 group C;690 V BS 5424;690 V UL 508;690 V CSA C22.2 No 14
Mounting Support: Plate;Rail
connections - terminals: screw clamp terminals 1 0.00…0.01 in² (1.5…6 mm²)solid;screw clamp terminals 2 0.00…0.01 in² (1.5…4 mm²)solid;screw clamp terminals 1 0.00…0.01 in² (0.5…6 mm²)flexible without cable end;screw clamp terminals 1 0.00…0.01 in² (0.35…6 mm²)flexible with cable end;screw clamp terminals 2 0.00…0.00 in² (0.35…1.5 mm²)flexible with cable end;screw clamp terminals 2 0.00…0.00 in² (0.35…2.5 mm²)flexible without cable end
tightening torque: 7.08 lbf.in (0.8 N.m) screw clamp terminals pozidriv No 1
control circuit voltage limits: Drop-out 0.2...0.75 Uc 122 °F (50 °C));Operational 0.85...1.1 Uc 122 °F (50 °C))
operating time: 6...8 ms coil de-energisation and NO opening;7...14 ms coil energisation and NO closing
mechanical durability: 10 Mcycles
maximum operating rate: 1200 cyc/h
inrush power in VA: 23 VA 68 °F (20 °C))
hold-in power consumption in VA: 4.9 VA 68 °F (20 °C))
heat dissipation: 1.5 W
Height: 2.28 in (58 mm)
Width: 1.77 in (45 mm)
Depth: 2.68 in (68 mm)
Net Weight: 0.29 lb(US) (0.132 kg)
Standards: NF C 63-110;VDE 0660;BS 5424;IEC 60947
Product Certifications: cULus
IP degree of protection: IP2x
protective treatment: TC IEC 60068
Ambient air temperature for operation: -4…122 °F (-20…50 °C)
Ambient Air Temperature for Storage: -58…158 °F (-50…70 °C)
operating altitude: 6561.68 ft (2000 m) without derating
Category: 22371-RELAYS;CONTROL
Discount Schedule: I12
GTIN: 3389110733143
Returnability: Yes
Country of origin: CZ
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.83 in (7.2 cm)
Package 1 Width: 2.36 in (6.0 cm)
Package 1 Length: 1.85 in (4.7 cm)
Package 1 Weight: 6.00 oz (170.0 g)
Warranty: 18 months
