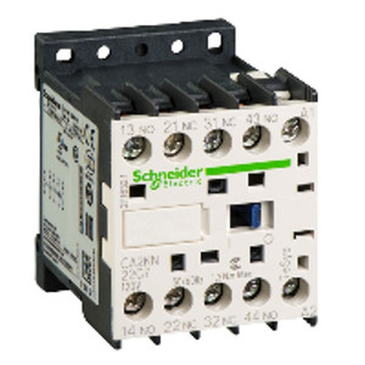

TeSys K Control Relay, 4 NO, <=690V, 120VAC Coil, Screw Clamp Terminals
TeSys K Control Relay- Pole Contact Composition: 4 NO
- Rated Operational Voltage: <=690V
- Control Circuit Voltage: 120V AC 50/60 Hz
- Connections-Terminals: Screw Clamp Terminals
Specifications
- range
- TeSys
- product name
- TeSys CAK
- Product or Component Type
- Control relay
- device short name
- CA2K
- contactor application
- Control circuit
- utilisation category
- DC-13;AC-15
- pole contact composition
- 4 NO
- [Ue] rated operational voltage
- <= 690 V <= 400 Hz
- control circuit type
- AC 50/60 Hz
- [Uc] control circuit voltage
- 120 V AC 50/60 Hz
- [Ith] conventional free air thermal current
- 10 A 122 °F (50 °C)
- Irms rated making capacity
- 110 A IEC 60947
- associated fuse rating
- 10 A gG IEC 60947;10 A gG VDE 0660
- [Ui] rated insulation voltage
- 690 V IEC 60947;750 V VDE 0110 group C;690 V BS 5424;600 V CSA C22.2 No 14
- Mounting Support
- Plate;Rail
- connections - terminals
- screw clamp terminals 1 0.00…0.01 in² (1.5…4 mm²)solid;screw clamp terminals 2 0.00…0.01 in² (1.5…4 mm²)solid;screw clamp terminals 1 0.00…0.01 in² (0.75…4 mm²)flexible with cable end;screw clamp terminals 2 0.00…0.01 in² (0.75…4 mm²)flexible without cable end;screw clamp terminals 1 0.00…0.00 in² (0.34…1.5 mm²)flexible with cable end;screw clamp terminals 2 0.00…0.00 in² (0.34…1.5 mm²)flexible without cable end
- tightening torque
- 11.51 lbf.in (1.3 N.m) screw clamp terminals flat Ø 6 mm;11.51 lbf.in (1.3 N.m) screw clamp terminals Philips No 2 0.24 in (6 mm);11.51 lbf.in (1.3 N.m) screw clamp terminals pozidriv No 2
- control circuit voltage limits
- Drop-out 0.2...0.75 Uc 122 °F (50 °C));Operational 0.8...1.15 Uc 122 °F (50 °C))
- operating time
- 10...20 ms coil de-energisation and NO opening;10...20 ms coil energisation and NO closing
- mechanical durability
- 10 Mcycles
- maximum operating rate
- 10000 cyc/h
- immunity to microbreaks
- 2 ms
- inrush power in VA
- 30 VA 68 °F (20 °C))
- hold-in power consumption in VA
- 4.5 VA 68 °F (20 °C))
- heat dissipation
- 1.3 W
- minimum switching voltage
- 17 V
- minimum switching current
- 5 mA
- non overlap distance
- 0.02 in (0.5 mm)
- insulation resistance
- > 10 MOhm
- Height
- 2.28 in (58 mm)
- Width
- 1.77 in (45 mm)
- Depth
- 2.24 in (57 mm)
- Net Weight
- 0.40 lb(US) (0.18 kg)
- standards
- BS 5424;IEC 60947;NF C 63-140;VDE 0660
- Product Certifications
- UL;CSA;UKCA
- IP degree of protection
- IP2x
- protective treatment
- TC IEC 60068
- Ambient air temperature for operation
- -13…122 °F (-25…50 °C)
- Ambient Air Temperature for Storage
- -58…176 °F (-50…80 °C)
- operating altitude
- 6561.68 ft (2000 m) without derating
- flame retardance
- V1 conforming to UL 94;Requirement 2 conforming to NF F 16-101;Requirement 2 conforming to NF F 16-102
- mechanical robustness
- Vibrations contactor open2 Gn;5...300 Hz IEC 60068-2-6;Vibrations contactor closed4 Gn;5...300 Hz IEC 60068-2-6;Shocks contactor open10 Gn for 11 ms IEC 60068-2-27;Shocks contactor closed15 Gn for 11 ms IEC 60068-2-27
- Category
- 22371-RELAYS;CONTROL
- Discount Schedule
- I12
- GTIN
- 3389110840735
- Returnability
- Yes
- Country of origin
- ID
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 1.81 in (4.6 cm)
- Package 1 Width
- 2.36 in (6.0 cm)
- Package 1 Length
- 2.56 in (6.5 cm)
- Package 1 Weight
- 6.38 oz (181.0 g)
- Warranty
- 18 months
