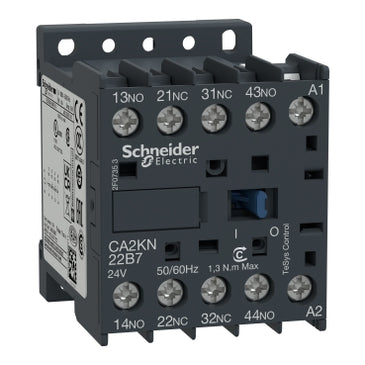

CA2KN22B7 | TeSys K Control Relay, 2 NO + 2 NC, <=690V, 24VAC Coil, Screw Clamp Terminals | Square D by Schneider Electric

Brand: Square DSKU: CA2KN22B7

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to CA2KN22B7

Jump to: Overview & Specifications Reviews

Overview Details for CA2KN22B7

TeSys K Control Relay, 2 NO + 2 NC, <=690V, 24VAC Coil, Screw Clamp Terminals

TeSys K Control Relay

Pole Contact Composition: 2 NO + 2 NC
Rated Operational Voltage: <=690V
Control Circuit Voltage: 24VAC 50/60 Hz
Connections-Terminals: Screw Clamp Terminals

TeSys K control relay, 4 contacts (2NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 24V 50/60Hz AC control circuit, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -25/+50°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium product (RoHS/REACh).

Specifications

range: TeSys
product name: TeSys CAK
Product or Component Type: Control relay
device short name: CA2K
contactor application: Control circuit
utilisation category: DC-13;AC-15
pole contact composition: 2 NO + 2 NC
[Ue] rated operational voltage: <= 690 V <= 400 Hz
control circuit type: AC 50/60 Hz
[Uc] control circuit voltage: 24 V AC 50/60 Hz
[Ith] conventional free air thermal current: 10 A 122 °F (50 °C)
Irms rated making capacity: 110 A IEC 60947
associated fuse rating: 10 A gG IEC 60947;10 A gG VDE 0660
[Ui] rated insulation voltage: 690 V IEC 60947;750 V VDE 0110 group C;690 V BS 5424;600 V CSA C22.2 No 14
Mounting Support: Plate;Rail
connections - terminals: screw clamp terminals 1 0.00…0.01 in² (1.5…4 mm²)solid;screw clamp terminals 2 0.00…0.01 in² (1.5…4 mm²)solid;screw clamp terminals 1 0.00…0.01 in² (0.75…4 mm²)flexible with cable end;screw clamp terminals 2 0.00…0.01 in² (0.75…4 mm²)flexible without cable end;screw clamp terminals 1 0.00…0.00 in² (0.34…1.5 mm²)flexible with cable end;screw clamp terminals 2 0.00…0.00 in² (0.34…1.5 mm²)flexible without cable end
tightening torque: 11.51 lbf.in (1.3 N.m) screw clamp terminals Philips No 2;11.51 lbf.in (1.3 N.m) screw clamp terminals flat Ø 6 mm;11.51 lbf.in (1.3 N.m) screw clamp terminals pozidriv No 2
control circuit voltage limits: Drop-out 0.2...0.75 Uc 122 °F (50 °C));Operational 0.8...1.15 Uc 122 °F (50 °C))
operating time: 10...20 ms coil de-energisation and NO opening;10...20 ms coil energisation and NO closing;15...25 ms coil de-energisation and NC closing;5...15 ms coil energisation and NC opening
mechanical durability: 10 Mcycles
maximum operating rate: 10000 cyc/h
immunity to microbreaks: 2 ms
inrush power in VA: 30 VA 68 °F (20 °C))
hold-in power consumption in VA: 4.5 VA 68 °F (20 °C))
heat dissipation: 1.3 W
minimum switching voltage: 17 V
minimum switching current: 5 mA
non overlap distance: 0.02 in (0.5 mm)
insulation resistance: > 10 MOhm
Height: 2.28 in (58 mm)
Width: 1.77 in (45 mm)
Depth: 2.24 in (57 mm)
Net Weight: 0.40 lb(US) (0.18 kg)
standards: BS 5424;IEC 60947;NF C 63-140;VDE 0660
Product Certifications: UL;CSA;UKCA
IP degree of protection: IP2x
protective treatment: TC IEC 60068
Ambient air temperature for operation: -13…122 °F (-25…50 °C)
Ambient Air Temperature for Storage: -58…176 °F (-50…80 °C)
operating altitude: 6561.68 ft (2000 m) without derating
flame retardance: V1 conforming to UL 94;Requirement 2 conforming to NF F 16-101;Requirement 2 conforming to NF F 16-102
mechanical robustness: Vibrations contactor open2 Gn;5...300 Hz IEC 60068-2-6;Vibrations contactor closed4 Gn;5...300 Hz IEC 60068-2-6;Shocks contactor open10 Gn for 11 ms IEC 60068-2-27;Shocks contactor closed15 Gn for 11 ms IEC 60068-2-27
Category: 22371-RELAYS;CONTROL
Discount Schedule: I12
GTIN: 3389110500271
Returnability: Yes
Country of origin: ID
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.76 in (7.0 cm)
Package 1 Width: 2.44 in (6.2 cm)
Package 1 Length: 1.93 in (4.9 cm)
Package 1 Weight: 6.35 oz (180.0 g)
Unit Type of Package 2: S02
Number of Units in Package 2: 50
Package 2 Height: 5.91 in (15.0 cm)
Package 2 Width: 11.81 in (30.0 cm)
Package 2 Length: 15.75 in (40.0 cm)
Package 2 Weight: 20.54 lb(US) (9.316 kg)
Unit Type of Package 3: P06
Number of Units in Package 3: 800
Package 3 Height: 30.31 in (77.0 cm)
Package 3 Width: 31.50 in (80.0 cm)
Package 3 Length: 23.62 in (60.0 cm)
Package 3 Weight: 335.10 lb(US) (152.0 kg)
Warranty: 18 months
