ATV930U30M3 | ATV930 Variable speed drive, 3kW, 200/240V, with braking unit, IP21 | Square D by Schneider Electric
Get Special Pricing!
Log In or Create an Account for the LOWEST PRICING on our most Popular Brands!
Brand: Square DSKU: ATV930U30M3

Web Price:

$1,353.81
Availability: This product is currently available to purchase
Contact us for price breaks on large quantities!
This item ships FREE*
*Free shipping applies within the continental US and weighing less than 50 lbs.
Shipping and Returns Terms
Image for Technical Expert

Speak With a Technical Expert

Call (847) 773-0645

Hours: 9am - 5pm CDT M-F

ATV930U30M3 | ATV930 Variable speed drive, 3kW, 200/240V, with braking unit, IP21 | Square D by Schneider Electric

Square D | ATV930U30M3
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to ATV930U30M3

Documents and manuals

Square D ATV930U30M3 Documents

Overview

Details for ATV930U30M3

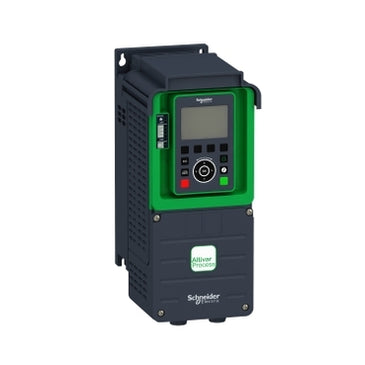

ATV930 Variable speed drive, 3kW, 200/240V, with braking unit, IP21

This Altivar Process ATV900 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It is suitable for motors with power rating up to 3kW/-HP for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 2.2kW/3HP for applications requiring significant overload (up to 150%). It works at a rated supply voltage from 200Vac to 240Vac. This variable speed / frequency drive (VSD / VFD) is specifically designed for industrial processes. In the following market segments: oil and gas, mining, minerals and metals, food and beverage water and wastewater. It offers high motor performance on any motor and total control of any kind of coupling in master/slave applications. Network services help ensure operation continuity even in case of connection breakdown. Web server and data logging help reduce downtime through fast troubleshooting and preventive maintenance. Its advanced connectivity, including EtherNet/IP and Modbus TCP, allows deep integration into automation architectures.

Specifications

Range of Product
Altivar Process ATV900
Device Application
Industrial Application
Product or Component Type
Variable speed drive
product destination
Asynchronous motors;Synchronous motors
Product Specific Application
Process for industrial
variant
Standard version;With braking chopper
Phase
3 phase
Mounting Mode
Wall mount
communication port protocol
Modbus serial;Modbus TCP;EtherNet/IP
[Us] rated supply voltage
200...240 V - 15...10 %
motor power kW
3.0 kW normal duty;2.2 kW heavy duty
Maximum Horse Power Rating
3.0 hp heavy duty
continuous output current
13.7 A 4 kHz normal duty;11.2 A 4 kHz heavy duty
EMC filter
Integrated;With EMC plate option
IP degree of protection
IP21
degree of protection
UL type 1
option module
Slot A communication module Profibus DP V1;Slot A communication module PROFINET;Slot A communication module DeviceNet;Slot A communication module EtherCAT;Slot A communication module CANopen daisy chain RJ45;Slot A communication module CANopen SUB-D 9;Slot A communication module CANopen screw terminals;Slot A/slot B/slot C digital and analog I/O extension module;Slot A/slot B/slot C output relay extension module;Slot B 5/12 V digital encoder interface module;Slot B analog encoder interface module;Slot B resolver encoder interface module;communication module Ethernet Powerlink
discrete input logic
16 preset speeds
asynchronous motor control profile
Constant torque standard;Variable torque standard;Optimized torque mode
synchronous motor control profile
Permanent magnet motor;Synchronous reluctance motor
maximum output frequency
599 Hz
switching frequency
2...16 kHz adjustable;4...16 kHz with derating factor
nominal switching frequency
4 kHz
line current
11.5 A 200 V normal duty);8.7 A 200 V heavy duty);9.9 A 240 V normal duty);7.6 A 240 V heavy duty)
apparent power
4.1 kVA 240 V normal duty);3.2 kVA 240 V heavy duty)
maximum transient current
16.4 A 60 s normal duty);16.8 A 60 s heavy duty)
Network Frequency
50-60 Hz
prospective line Isc
50 kA
discrete input number
10
discrete input type
DI1...DI8 programmable;24 V DC <= 30 V)3.5 kOhm;DI7;DI8 programmable as pulse input 0…30 kHz;24 V DC <= 30 V);STOA;STOB safe torque off;24 V DC <= 30 V)> 2.2 kOhm
discrete output number
2
discrete output type
Logic output DQ+ 0…1 kHz <= 30 V DC 100 mA;Programmable as pulse output DQ+ 0…30 kHz <= 30 V DC 20 mA;Logic output DQ- 0…1 kHz <= 30 V DC 100 mA
analogue input number
3
analogue input type
AI1;AI2;AI3 software-configurable voltage 0...10 V DC 30 kOhm 12 bits;AI1;AI2;AI3 software-configurable current 0...20 mA/4...20 mA 250 Ohm 12 bits
analogue output number
2
analogue output type
Software-configurable voltage AQ1;AQ2 0...10 V DC 470 Ohm 10 bits;Software-configurable current AQ1;AQ2 0...20 mA 500 Ohm 10 bits
relay output number
3
relay output type
Configurable relay logic R1 fault relay NO/NC 100000 cycles;Configurable relay logic R2 sequence relay NO 1000000 cycles;Configurable relay logic R3 sequence relay NO 1000000 cycles
maximum switching current
Relay output R1 resistive;cos phi = 1 3 A 250 V AC;Relay output R1 resistive;cos phi = 1 3 A 30 V DC;Relay output R1 inductive;cos phi = 0.4 7 ms 2 A 250 V AC;Relay output R1 inductive;cos phi = 0.4 7 ms 2 A 30 V DC;Relay output R2;R3 resistive;cos phi = 1 5 A 250 V AC;Relay output R2;R3 resistive;cos phi = 1 5 A 30 V DC;Relay output R2;R3 inductive;cos phi = 0.4 7 ms 2 A 250 V AC;Relay output R2;R3 inductive;cos phi = 0.4 7 ms 2 A 30 V DC
minimum switching current
Relay output R1;R2;R3 5 mA 24 V DC
physical interface
Ethernet;2-wire RS 485
Connector Type
2 RJ45;1 RJ45
method of access
Slave Modbus TCP
Transmission Rate
10;100 Mbits;4.8 kbps;9600 bit/s;19200 bit/s
transmission frame
RTU
number of addresses
1…247
data format
8 bits;configurable odd;even or no parity
type of polarization
No impedance
4 quadrant operation possible
True
acceleration and deceleration ramps
Linear adjustable separately from 0.01...9999 s
motor slip compensation
Automatic whatever the load;Adjustable;Not available in permanent magnet motor law;Can be suppressed
braking to standstill
By DC injection
brake chopper integrated
True
Maximum Input Current per Phase
11.5 A
maximum output voltage
240.0 V
relative symmetric network frequency tolerance
5 %
base load current at high overload
11.2 A
base load current at low overload
13.7 A
power dissipation in W
Natural convection 34 W 200 V 4 kHz;Forced convection 104 W 200 V 4 kHz
with safety function Safely Limited Speed (SLS)
True
with safety function Safe brake management (SBC/SBT)
True
with safety function Safe Operating Stop (SOS)
False
with safety function Safe Position (SP)
False
with safety function Safe programmable logic
False
with safety function Safe Speed Monitor (SSM)
False
with safety function Safe Stop 1 (SS1)
True
with sft fct Safe Stop 2 (SS2)
False
with safety function Safe torque off (STO)
True
with safety function Safely Limited Position (SLP)
False
with safety function Safe Direction (SDI)
False
protection type
Thermal protection motor;Safe torque off motor;Motor phase break motor;Thermal protection drive;Safe torque off drive;Overheating drive;Overcurrent between output phases and earth drive;Overload of output voltage drive;Short-circuit protection drive;Motor phase break drive;Overvoltages on the DC bus drive;Line supply overvoltage drive;Line supply undervoltage drive;Line supply phase loss drive;Overspeed drive;Break on the control circuit drive
Quantity per Set
1
Width
5.67 in (144 mm)
Height
13.78 in (350 mm)
Depth
8.11 in (206 mm)
Net Weight
9.92 lb(US) (4.5 kg)
electrical connection
Control screw terminal 0.5...1.5 mm² AWG 20...AWG 16;Line side screw terminal 2.5...6 mm² AWG 14...AWG 10;DC bus screw terminal 2.5...6 mm² AWG 14...AWG 10;Motor screw terminal 4...6 mm² AWG 12...AWG 10
Transmission Rate
10/100 Mbit/s Ethernet IP/Modbus TCP;4.8;9.6;19.2;38.4 kbit/s Modbus serial
exchange mode
Half duplex;full duplex;autonegotiation Ethernet IP/Modbus TCP
data format
8 bits;configurable odd;even or no parity Modbus serial
type of polarization
No impedance Modbus serial
number of addresses
1…247 Modbus serial
supply
External supply for digital inputs 24 V DC 19…30 V);<1.25 mA overload and short-circuit protection;Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %;<10 mA overload and short-circuit protection;Internal supply for digital inputs and STO 24 V DC 21…27 V);<200 mA overload and short-circuit protection
local signalling
Local diagnostic 3 LED mono/dual colour);Embedded communication status 5 LED dual colour);Communication module status 2 LED dual colour);Presence of voltage 1 LED red)
input compatibility
DI1...DI8 discrete input level 1 PLC EN/IEC 61131-2;DI7;DI8 pulse input level 1 PLC IEC 65A-68;STOA;STOB discrete input level 1 PLC EN/IEC 61131-2
discrete input logic
Positive logic (source) DI1...DI8);< 5 V;> 11 V;Negative logic (sink) DI1...DI8);> 16 V;< 10 V;Positive logic (source) DI7;DI8);< 0.6 V;> 2.5 V;Positive logic (source) STOA;STOB);< 5 V;> 11 V
sampling duration
2 ms +/- 0.5 ms DI1...DI8) - discrete input;5 ms +/- 1 ms DI7;DI8) - pulse input;1 ms +/- 1 ms AI1;AI2;AI3) - analog input;5 ms +/- 1 ms AQ1;AQ2) - analog output
accuracy
+/- 0.6 % AI1;AI2;AI3 for a temperature variation 60 °C analog input;+/- 1 % AQ1;AQ2 for a temperature variation 60 °C analog output
linearity error
AI1;AI2;AI3 +/- 0.15 % of maximum value analog input;AQ1;AQ2 +/- 0.2 % analog output
refresh time
Relay output R1;R2;R3)5 ms +/- 0.5 ms)
isolation
Between power and control terminals
operating altitude
<= 3280.84 ft (1000 m) without derating;1000...4800 m with current derating 1 % per 100 m
operating position
Vertical +/- 10 degree
Product Certifications
CSA;TÜV;UL
Marking
CE
Standards
UL 508C;EN/IEC 61800-3;EN/IEC 61800-5-1;IEC 61000-3-12;IEC 60721-3;IEC 61508;IEC 13849-1
maximum THDI
<48 % full load IEC 61000-3-12
assembly style
Enclosed
electromagnetic compatibility
Electrostatic discharge immunity test level 3 IEC 61000-4-2;Radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3;Electrical fast transient/burst immunity test level 4 IEC 61000-4-4;1.2/50 µs - 8/20 µs surge immunity test level 3 IEC 61000-4-5;Conducted radio-frequency immunity test level 3 IEC 61000-4-6
environmental class (during operation)
Class 3C3 according to IEC 60721-3-3;Class 3S3 according to IEC 60721-3-3
maximum acceleration under shock impact (during operation)
150 m/s² at 11 ms
maximum acceleration under vibrational stress (during operation)
10 m/s² at 13...200 Hz
maximum deflection under vibratory load (during operation)
1.5 mm at 2...13 Hz
permitted relative humidity (during operation)
Class 3K5 according to EN 60721-3
volume of cooling air
10038.72 Gal/hr(US) (38 m3/h)
overvoltage category
III
regulation loop
Adjustable PID regulator
insulation resistance
> 1 MOhm 500 V DC for 1 minute to earth
noise level
54.5 dB 86/188/EEC
vibration resistance
1.5 mm peak to peak 2…13 Hz)IEC 60068-2-6;1 gn 13…200 Hz)IEC 60068-2-6
shock resistance
15 gn 11 ms IEC 60068-2-27
environmental characteristic
Chemical pollution resistance class 3C3 EN/IEC 60721-3-3;Dust pollution resistance class 3S3 EN/IEC 60721-3-3
relative humidity
5…95 % without condensation IEC 60068-2-3
ambient air temperature for operation
5…122 °F (-15…50 °C) without derating);122…140 °F (50…60 °C) with derating factor)
noise level
54.5 dB
pollution degree
2
ambient air transport temperature
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Category
22276-ATV930 FRAMES 1 & 2
Discount Schedule
CP4E
GTIN
3606480883576
Returnability
Yes
Country of origin
ID
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
12.01 in (30.5 cm)
Package 1 Width
7.48 in (19 cm)
Package 1 Length
15.94 in (40.5 cm)
Package 1 Weight
13.28 lb(US) (6.024 kg)
Unit Type of Package 2
P06
Number of Units in Package 2
6
Package 2 Height
29.53 in (75 cm)
Package 2 Width
23.62 in (60 cm)
Package 2 Length
31.50 in (80 cm)
Package 2 Weight
108.34 lb(US) (49.144 kg)
