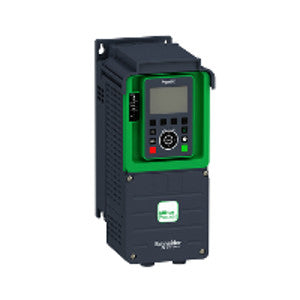

ATV630U55N4 | ATV630 VFD, 7.5 HP/ 12.7 FLA, 460VAC, with LCD Keypad, NEMA 1 | Square D by Schneider Electric

ATV630 VFD, 7.5 HP/ 12.7 FLA, 460VAC, with LCD Keypad, NEMA 1

• Wall Mount
• Supply Frequency: 50...60 Hz - 5...5 %
• Us Rated Supply Voltage: 380...480 V - 15...10 %
• 144mm W x 350mm H x 203mm D

Description

The variable speed drive (VSD) from the Altivar Process ATV630 VFD series by Schneider Electric is made for motor control and drive applications in different systems.

The ATV630U55N4 offers over 30 functions and supports three-phase motors (synchronous, asynchronous, and special motors), compressors, pumps, fans, mixers, augers, conveyors, and other heavy and normal-duty applications.

You can easily adjust settings using the LCD graphic display keypad and capacitive navigation wheel. On top of that, the ATV630 VFD supports several communication protocols and can be controlled remotely.

Features

ATV630 VFD variable speed drive provides:

• Continuous and accurate real-time measurements for applications
• Precise energy consumption monitoring
• Preventive maintenance tools
• Support for 4KHz nominal switching frequency and 50-60Hz supply
• Resistance to harsh environments and high operational temperatures
• Easy installation and set up
• Variable voltage range (from 380 to 480 VAC)
• Optimized monitoring based on the operating point
• Remote accessibility via multiple communication protocols (Ethernet and Modbus)
• Access to technical documentation with dynamic QR code
• Protection against power surges and overvoltage

Applications

The ATV630U55N4 supports various industrial and residential applications. You can use it for different systems and devices, such as:

• Pumps (borehole, liquid injection, pressure booster, odor ventilation, submersible, simple conveying, de-watering, and screw pumps)
• Compressors
• Fans (ventilation, aeration blowers, cooling tower, exhaust fans)

The VSDs from this model also supports water intake, transportation, storage, processing, and treatment applications. You can learn more about the specifications and uses in the product’s manual.
