ATV630U07M3 | ATV630 VFD, 1 HP/ 4.6 FLA, 230VAC, with LCD Keypad, NEMA 1 | Square D by Schneider Electric

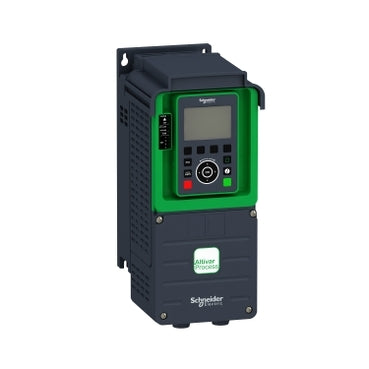

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to ATV630U07M3
Overview
Details for ATV630U07M3
ATV630 VFD, 1 HP/ 4.6 FLA, 230VAC, with LCD Keypad, NEMA 1
Variable Speed Drive ATV630- Wall Mount
- Supply Frequency: 50...60 Hz - 5...5 %
- Us Rated Supply Voltage: 200...240 V - 15...10 %
- 144mm W x 320mm H x 203mm D
Specifications
- Range of Product
- Altivar Process ATV600
- Product or Component Type
- Variable speed drive
- Product Specific Application
- Process and utilities
- device short name
- ATV630
- variant
- Standard version
- product destination
- Asynchronous motors;Synchronous motors
- EMC filter
- Without EMC filter
- IP degree of protection
- IP21IEC 61800-5-1;IP21IEC 60529
- [Us] rated supply voltage
- 200...240 V
- degree of protection
- UL type 1 UL 508C
- type of cooling
- Forced convection
- supply frequency
- 50...60 Hz - 5...5 %
- [Us] rated supply voltage
- 200...240 V - 15...10 %
- motor power kW
- 0.75 kW normal duty);0.37 kW heavy duty)
- Maximum Horse Power Rating
- 1 hp normal duty;0.5 hp heavy duty
- line current
- 3 A 200 V normal duty);2.6 A 240 V normal duty);1.7 A 200 V heavy duty);1.5 A 240 V heavy duty)
- prospective line Isc
- 50 kA
- apparent power
- 1.1 kVA 240 V normal duty);0.6 kVA 240 V heavy duty)
- continuous output current
- 4.6 A 4 kHz normal duty;3.3 A 4 kHz heavy duty
- maximum transient current
- 5.1 A 60 s normal duty);5 A 60 s heavy duty)
- asynchronous motor control profile
- Variable torque standard;Constant torque standard;Optimized torque mode
- synchronous motor control profile
- Permanent magnet motor;Synchronous reluctance motor
- speed drive output frequency
- 0.1…500 Hz
- nominal switching frequency
- 4 kHz
- switching frequency
- 2...12 kHz adjustable;4...12 kHz with derating factor
- safety function
- STO (safe torque off) SIL 3
- discrete input logic
- 16 preset speeds
- communication port protocol
- Modbus TCP;Modbus serial;Ethernet
- option card
- Slot A communication module;Profibus DP V1;Slot A communication module;PROFINET;Slot A communication module;DeviceNet;Slot A communication module;Modbus TCP/EtherNet/IP;Slot A communication module;CANopen daisy chain RJ45;Slot A communication module;CANopen SUB-D 9;Slot A communication module;CANopen screw terminals;Slot A/slot B digital and analog I/O extension module;Slot A/slot B output relay extension module;Slot A communication module;Ethernet IP/Modbus TCP/MD-Link;communication module;BACnet MS/TP;communication module;Ethernet Powerlink
- Mounting Mode
- Wall mount
- Phase
- 3 phase
- discrete output number
- 0
- discrete output type
- Relay outputs R1A;R1B;R1C 250 V AC 3000 mA;Relay outputs R1A;R1B;R1C 30 V DC 3000 mA;Relay outputs R2A;R2C 250 V AC 5000 mA;Relay outputs R2A;R2C 30 V DC 5000 mA;Relay outputs R3A;R3C 250 V AC 5000 mA;Relay outputs R3A;R3C 30 V DC 5000 mA
- output voltage
- <= power supply voltage
- permissible temporary current boost
- 1.1 x In 60 s normal duty);1.5 x In 60 s heavy duty)
- motor slip compensation
- Automatic whatever the load;Can be suppressed;Adjustable;Not available in permanent magnet motor law
- acceleration and deceleration ramps
- Linear adjustable separately from 0.01...9999 s
- physical interface
- Ethernet;2-wire RS 485
- braking to standstill
- By DC injection
- protection type
- Thermal protection motor;Safe torque off motor;Motor phase break motor;Thermal protection drive;Safe torque off drive;Overheating drive;Overcurrent between output phases and earth drive;Overload of output voltage drive;Short-circuit protection drive;Motor phase break drive;Overvoltages on the DC bus drive;Line supply overvoltage drive;Line supply undervoltage drive;Line supply phase loss drive;Overspeed drive;Break on the control circuit drive
- Transmission Rate
- 10;100 Mbits;4800 bps;9600 bps;19200 bps;38.4 Kbps
- frequency resolution
- Display unit 0.1 Hz;Analog input 0.012/50 Hz
- transmission frame
- RTU
- electrical connection
- Control removable screw terminals 0.5...1.5 mm² AWG 20...AWG 16;Motor screw terminal 2.5...6 mm² AWG 14...AWG 10;Line side screw terminal 2.5...6 mm² AWG 14...AWG 10
- connector type
- RJ45 on the remote graphic terminal)Ethernet/Modbus TCP;RJ45 on the remote graphic terminal)Modbus serial
- data format
- 8 bits;configurable odd;even or no parity
- type of polarization
- No impedance
- exchange mode
- Half duplex;full duplex;autonegotiation Ethernet/Modbus TCP
- number of addresses
- 1…247 Modbus serial
- method of access
- Slave Modbus TCP
- supply
- External supply for digital inputs 24 V DC 19…30 V);<1.25 mA overload and short-circuit protection;Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %;<10 mA overload and short-circuit protection;Internal supply for digital inputs and STO 24 V DC 21…27 V);<200 mA overload and short-circuit protection
- local signalling
- for local diagnostic 3 LEDs;for embedded communication status 3 LEDs (dual colour);for communication module status 4 LEDs (dual colour);for presence of voltage 1 LED (red)
- Width
- 5.67 in (144 mm)
- Height
- 13.78 in (350 mm)
- Depth
- 7.99 in (203 mm)
- Net Weight
- 9.48 lb(US) (4.3 kg)
- analogue input number
- 3
- analogue input type
- AI1;AI2;AI3 software-configurable voltage 0...10 V DC 31.5 kOhm 12 bits;AI1;AI2;AI3 software-configurable current 0...20 mA 250 Ohm 12 bits;AI2 voltage analog input - 10...10 V DC 31.5 kOhm 12 bits
- discrete input number
- 8
- discrete input type
- DI7;DI8 programmable as pulse input 0…30 kHz;24 V DC <= 30 V)
- input compatibility
- DI1...DI6 discrete input level 1 PLC EN/IEC 61131-2;DI5;DI6 discrete input level 1 PLC IEC 65A-68;STOA;STOB discrete input level 1 PLC EN/IEC 61131-2
- discrete input logic
- Positive logic (source) DI1...DI8);< 5 V;> 11 V;Negative logic (sink) DI1...DI8);> 16 V;< 10 V
- analogue output number
- 2
- analogue output type
- Software-configurable voltage AQ1;AQ2 0...10 V DC 470 Ohm 10 bits;Software-configurable current AQ1;AQ2 0...20 mA 10 bits;Software-configurable current DQ-;DQ+ 30 V DC;Software-configurable current DQ-;DQ+ 100 mA
- sampling duration
- 2 ms +/- 0.5 ms DI1...DI4) - discrete input;5 ms +/- 1 ms DI5;DI6) - discrete input;5 ms +/- 0.1 ms AI1;AI2;AI3) - analog input;10 ms +/- 1 ms AO1) - analog output
- accuracy
- +/- 0.6 % AI1;AI2;AI3 for a temperature variation 60 °C analog input;+/- 1 % AO1;AO2 for a temperature variation 60 °C analog output
- linearity error
- AI1;AI2;AI3 +/- 0.15 % of maximum value analog input;AO1;AO2 +/- 0.2 % analog output
- relay output number
- 3
- relay output type
- Configurable relay logic R1 fault relay NO/NC 100000 cycles;Configurable relay logic R2 sequence relay NO 100000 cycles;Configurable relay logic R3 sequence relay NO 100000 cycles
- refresh time
- Relay output R1;R2;R3)5 ms +/- 0.5 ms)
- minimum switching current
- Relay output R1;R2;R3 5 mA 24 V DC
- maximum switching current
- Relay output R1;R2;R3 resistive;cos phi = 1 3 A 250 V AC;Relay output R1;R2;R3 resistive;cos phi = 1 3 A 30 V DC;Relay output R1;R2;R3 inductive;cos phi = 0.4 7 ms 2 A 250 V AC;Relay output R1;R2;R3 inductive;cos phi = 0.4 7 ms 2 A 30 V DC
- isolation
- Between power and control terminals
- maximum output frequency
- 500 kHz
- Maximum Input Current per Phase
- 3.0 A
- Variable speed drive application selection
- Compressor centrifugal Building - HVAC;Other application Food and beverage processing;Fan Mining mineral and metal;Pump Mining mineral and metal;Fan Oil and gas;Other application Water and waste water;Screw compressor Building - HVAC;Pump Food and beverage processing;Fan Food and beverage processing;Atomization Food and beverage processing;Electro submersible pump (ESP) Oil and gas;Water injection pump Oil and gas;Jet fuel pump Oil and gas;Compressor for refinery Oil and gas;Centrifuge pump Water and waste water;Positive displacement pump Water and waste water;Electro submersible pump (ESP) Water and waste water;Screw pump Water and waste water;Lobe compressor Water and waste water;Screw compressor Water and waste water;Compressor centrifugal Water and waste water;Fan Water and waste water;Conveyor Water and waste water;Mixer Water and waste water
- Motor power range AC-3
- 0.55…1 kW 200…240 V 3 phase
- Quantity per Set
- 1
- enclosure mounting
- Wall mounted
- insulation resistance
- > 1 MOhm 500 V DC for 1 minute to earth
- noise level
- 54.5 dB 86/188/EEC
- power dissipation in W
- Natural convection 27 W 200 V 4 kHz;Forced convection 28 W 200 V 4 kHz
- volume of cooling air
- 10038.72 Gal/hr(US) (38 m3/h)
- operating position
- Vertical +/- 10 degree
- maximum THDI
- <48 % full load IEC 61000-3-12
- electromagnetic compatibility
- Electrostatic discharge immunity test level 3 IEC 61000-4-2;Radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3;Electrical fast transient/burst immunity test level 4 IEC 61000-4-4;1.2/50 µs - 8/20 µs surge immunity test level 3 IEC 61000-4-5;Conducted radio-frequency immunity test level 3 IEC 61000-4-6
- pollution degree
- 2 EN/IEC 61800-5-1
- vibration resistance
- 1.5 mm peak to peak 2…13 Hz)IEC 60068-2-6;1 gn 13…200 Hz)IEC 60068-2-6
- shock resistance
- 15 gn 11 ms IEC 60068-2-27
- relative humidity
- 5…95 % without condensation IEC 60068-2-3
- ambient air temperature for operation
- 5…122 °F (-15…50 °C) without derating);122…140 °F (50…60 °C) with derating factor)
- Ambient Air Temperature for Storage
- -40…158 °F (-40…70 °C)
- operating altitude
- <= 3280.84 ft (1000 m) without derating;1000...4800 m with current derating 1 % per 100 m
- standards
- UL 508C;EN/IEC 61800-3;Environment 1 category C2 EN/IEC 61800-3;Environment 2 category C3 EN/IEC 61800-3;EN/IEC 61800-5-1;IEC 61000-3-12;IEC 60721-3;IEC 61508;IEC 13849-1
- Product Certifications
- TÜV;CSA;ATEX zone 2/22;ATEX INERIS;DNV-GL;UL
- Marking
- CE
- Standards
- UL 508C;EN/IEC 61800-3;EN/IEC 61800-3 environment 1 category C2;EN/IEC 61800-3 environment 2 category C3;EN/IEC 61800-5-1;IEC 61000-3-12;IEC 60721-3;IEC 61508;IEC 13849-1
- overvoltage category
- III
- regulation loop
- Adjustable PID regulator
- noise level
- 54.5 dB
- pollution degree
- 2
- Category
- 22205-ATV630 FRAMES 1 & 2
- Discount Schedule
- CP4E
- GTIN
- 3606480761614
- Returnability
- Yes
- Country of origin
- ID
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 12.40 in (31.5 cm)
- Package 1 Width
- 7.48 in (19 cm)
- Package 1 Length
- 15.94 in (40.5 cm)
- Package 1 Weight
- 12.60 lb(US) (5.717 kg)
- Unit Type of Package 2
- P06
- Number of Units in Package 2
- 6
- Package 2 Height
- 29.53 in (75 cm)
- Package 2 Width
- 23.62 in (60 cm)
- Package 2 Length
- 31.50 in (80 cm)
- Package 2 Weight
- 104.28 lb(US) (47.302 kg)
