ATV630D45N4 | ATV630 VFD, 60 HP/ 88 FLA, 460VAC, with LCD Keypad, NEMA 1 | Square D by Schneider Electric

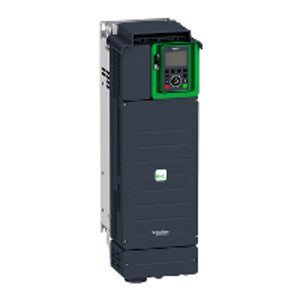

ATV630 VFD, 60 HP/ 88 FLA, 460VAC, with LCD Keypad, NEMA 1

• Wall Mount
• Supply Frequency: 50...60 Hz - 5...5 %
• Us Rated Supply Voltage: 380...480 V - 15...10 %
• 226mm W x 673mm H x 271mm D

Description

The ATV630 VFD from Schneider Electric is a variable speed drive from the Altivar Process series designed for motor control applications across different machines, processes, and building systems.

The ATV630D45N4 model is made for industrial applications and utilities for three-phase motors (special, synchronous, and asynchronous). The device supports several line currents (69.1A at 480V, 79.8A at 380V, 67.1A at 380V, and many others).

These wall-mounting drives can withstand the harshest environments, operation altitudes, and temperatures. The device has several certifications, such as ATEX INERIS, TUV, CSA, DNV-GL. Additionally, the ATV630 series also has IEC and EN/EC certification for different categories of environments.

Features

The Altivar Process variable speed drives from the ATV630 VFD model series offer:

• Many options for input logic (16 pre-set speeds)
• Variable voltage range (from 380 to 480 VAC)
• Support for 4KHz nominal switching frequency, 0.0001-0.5KHz output, and 50Hz to 60Hz supply
• Resistance to harsh environments and temperatures (IEC 61800-5-1 and 60529 certifications)
• Can work with ambient air temperatures ranging from 50 to 60 degrees Celsius
• Several input & output numbers
• Various communication protocols, including Modbus (Modbus/TCP and EtherNet/IP serial links) and Ethernet (SNMP, SNTP, BootP & DHCP, IPv6)

You can learn more about the ATV630 VFD features and specifications in the product’s manual.

Applications

The ATV630D45N4 variable speed drive works with a large variety of motor control and driving applications including pumps, fans, and compressors.
