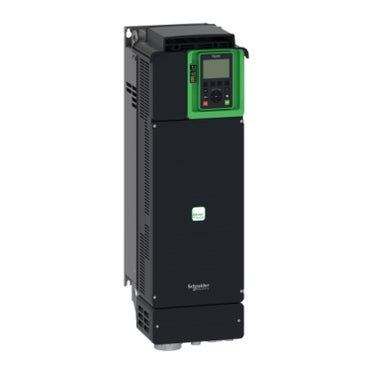

ATV630D22M3 | ATV630 VFD, 30 HP/ 92.6 FLA, 230VAC, with LCD Keypad, NEMA 1 | Square D by Schneider Electric

Brand: Square DSKU: ATV630D22M3

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to ATV630D22M3

Jump to: Overview & Specifications Reviews

Overview Details for ATV630D22M3

ATV630 VFD, 30 HP/ 92.6 FLA, 230VAC, with LCD Keypad, NEMA 1

Variable Speed Drive ATV630

Wall Mount
Supply Frequency: 50...60 Hz - 5...5 %
Us Rated Supply Voltage: 200...240 V - 15...10 %
226mm W x 673mm H x 271mm D

This Altivar Process ATV600 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It features 3 built-in RJ45 communication ports as standard, 1 Ethernet port, 2 serial ports. It works at a rated supply voltage from 200V to 240V AC. This drive provides up to 30% energy saving when on standby due to the innovative ‘‘Stop and Go’’operation without additional costs. It is suitable for motors with power rating up to 22kW / 30hp for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 18.5kW / 25hp for applications requiring significant overload (up to 150%). It weighs 14.3kg and its dimensions are, 226mm wide, 673mm high, 271mm deep. This drive is focused on fluids management processing and energy saving, it offers extensive flexibility in water and wastewater, mining, minerals and metals, oil and gas and food and beverage applications. Accessories (fan kit, graphic display terminal) and options (I/O expansion modules, communication modules, EMC input filters) are available with Altivar Process ATV600 drives, depending on the drive rating. It is designed to be mounted in vertical position (+/- 10 °) on a wall. This new concept of drives meets the major needs of process and utilities in terms of equipment efficiency and total cost of ownership by supporting the energy management, asset management and also the overall performance of the process.

Specifications

Range of Product: Altivar Process ATV600
Product or Component Type: Variable speed drive
Product Specific Application: Process and utilities
device short name: ATV630
variant: Standard version
product destination: Asynchronous motors;Synchronous motors
EMC filter: Without EMC filter
IP degree of protection: IP21IEC 61800-5-1;IP21IEC 60529
[Us] rated supply voltage: 200...240 V
degree of protection: UL type 1 UL 508C
type of cooling: Forced convection
supply frequency: 50...60 Hz - 5...5 %
[Us] rated supply voltage: 200...240 V - 15...10 %
motor power kW: 22 kW normal duty);18.5 kW heavy duty)
Maximum Horse Power Rating: 30 hp normal duty;25 hp heavy duty
line current: 76 A 200 V normal duty);64.3 A 240 V normal duty);64.8 A 200 V heavy duty);54.5 A 240 V heavy duty)
prospective line Isc: 50 kA
apparent power: 26.7 kVA 240 V normal duty);22.7 kVA 240 V heavy duty)
continuous output current: 92.6 A 4 kHz normal duty;78.4 A 4 kHz heavy duty
maximum transient current: 101.9 A 60 s normal duty);117.6 A 60 s heavy duty)
asynchronous motor control profile: Variable torque standard;Constant torque standard;Optimized torque mode
synchronous motor control profile: Permanent magnet motor;Synchronous reluctance motor
speed drive output frequency: 0.1…500 Hz
nominal switching frequency: 4 kHz
switching frequency: 2...12 kHz adjustable;4...12 kHz with derating factor
safety function: STO (safe torque off) SIL 3
discrete input logic: 16 preset speeds
Communication Port Protocol: Modbus TCP;Ethernet;Modbus serial
option card: Slot A communication module;Profibus DP V1;Slot A communication module;PROFINET;Slot A communication module;DeviceNet;Slot A communication module;Modbus TCP/EtherNet/IP;Slot A communication module;CANopen daisy chain RJ45;Slot A communication module;CANopen SUB-D 9;Slot A communication module;CANopen screw terminals;Slot A/slot B digital and analog I/O extension module;Slot A/slot B output relay extension module;Slot A communication module;Ethernet IP/Modbus TCP/MD-Link;communication module;BACnet MS/TP;communication module;Ethernet Powerlink
Mounting Mode: Wall mount
Phase: 3 phase
discrete output number: 0
discrete output type: Relay outputs R1A;R1B;R1C 250 V AC 3000 mA;Relay outputs R1A;R1B;R1C 30 V DC 3000 mA;Relay outputs R2A;R2C 250 V AC 5000 mA;Relay outputs R2A;R2C 30 V DC 5000 mA;Relay outputs R3A;R3C 250 V AC 5000 mA;Relay outputs R3A;R3C 30 V DC 5000 mA
output voltage: <= power supply voltage
permissible temporary current boost: 1.1 x In 60 s normal duty);1.5 x In 60 s heavy duty)
motor slip compensation: Adjustable;Automatic whatever the load;Not available in permanent magnet motor law;Can be suppressed
acceleration and deceleration ramps: Linear adjustable separately from 0.01...9999 s
physical interface: Ethernet;2-wire RS 485
braking to standstill: By DC injection
protection type: Thermal protection motor;Safe torque off motor;Motor phase break motor;Thermal protection drive;Safe torque off drive;Overheating drive;Overcurrent between output phases and earth drive;Overload of output voltage drive;Short-circuit protection drive;Motor phase break drive;Overvoltages on the DC bus drive;Line supply overvoltage drive;Line supply undervoltage drive;Line supply phase loss drive;Overspeed drive;Break on the control circuit drive
Transmission Rate: 10;100 Mbits;4800 bps;9600 bps;19200 bps;38.4 Kbps
frequency resolution: Display unit 0.1 Hz;Analog input 0.012/50 Hz
transmission frame: RTU
electrical connection: Control removable screw terminals 0.5...1.5 mm² AWG 20...AWG 16;Line side screw terminal 35...50 mm² AWG 2...AWG 1;Motor screw terminal 50 mm² AWG 1
connector type: RJ45 on the remote graphic terminal)Ethernet/Modbus TCP;RJ45 on the remote graphic terminal)Modbus serial
data format: 8 bits;configurable odd;even or no parity
type of polarization: No impedance
exchange mode: Half duplex;full duplex;autonegotiation Ethernet/Modbus TCP
number of addresses: 1…247 Modbus serial
method of access: Slave Modbus TCP
supply: External supply for digital inputs 24 V DC 19…30 V);<1.25 mA overload and short-circuit protection;Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %;<10 mA overload and short-circuit protection;Internal supply for digital inputs and STO 24 V DC 21…27 V);<200 mA overload and short-circuit protection
local signalling: for local diagnostic 3 LEDs;for embedded communication status 3 LEDs (dual colour);for communication module status 4 LEDs (dual colour);for presence of voltage 1 LED (red)
Width: 8.90 in (226 mm)
Height: 26.50 in (673 mm)
Depth: 10.67 in (271 mm)
Net Weight: 31.53 lb(US) (14.3 kg)
analogue input number: 3
analogue input type: AI1;AI2;AI3 software-configurable voltage 0...10 V DC 31.5 kOhm 12 bits;AI1;AI2;AI3 software-configurable current 0...20 mA 250 Ohm 12 bits;AI2 voltage analog input - 10...10 V DC 31.5 kOhm 12 bits
discrete input number: 8
discrete input type: DI7;DI8 programmable as pulse input 0…30 kHz;24 V DC <= 30 V)
input compatibility: DI1...DI6 discrete input level 1 PLC EN/IEC 61131-2;DI5;DI6 discrete input level 1 PLC IEC 65A-68;STOA;STOB discrete input level 1 PLC EN/IEC 61131-2
discrete input logic: Positive logic (source) DI1...DI8);< 5 V;> 11 V;Negative logic (sink) DI1...DI8);> 16 V;< 10 V
analogue output number: 2
analogue output type: Software-configurable voltage AQ1;AQ2 0...10 V DC 470 Ohm 10 bits;Software-configurable current AQ1;AQ2 0...20 mA 10 bits;Software-configurable current DQ-;DQ+ 30 V DC;Software-configurable current DQ-;DQ+ 100 mA
sampling duration: 2 ms +/- 0.5 ms DI1...DI4) - discrete input;5 ms +/- 1 ms DI5;DI6) - discrete input;5 ms +/- 0.1 ms AI1;AI2;AI3) - analog input;10 ms +/- 1 ms AO1) - analog output
accuracy: +/- 0.6 % AI1;AI2;AI3 for a temperature variation 60 °C analog input;+/- 1 % AO1;AO2 for a temperature variation 60 °C analog output
linearity error: AI1;AI2;AI3 +/- 0.15 % of maximum value analog input;AO1;AO2 +/- 0.2 % analog output
relay output number: 3
relay output type: Configurable relay logic R1 fault relay NO/NC 100000 cycles;Configurable relay logic R2 sequence relay NO 100000 cycles;Configurable relay logic R3 sequence relay NO 100000 cycles
refresh time: Relay output R1;R2;R3)5 ms +/- 0.5 ms)
minimum switching current: Relay output R1;R2;R3 5 mA 24 V DC
maximum switching current: Relay output R1;R2;R3 resistive;cos phi = 1 3 A 250 V AC;Relay output R1;R2;R3 resistive;cos phi = 1 3 A 30 V DC;Relay output R1;R2;R3 inductive;cos phi = 0.4 7 ms 2 A 250 V AC;Relay output R1;R2;R3 inductive;cos phi = 0.4 7 ms 2 A 30 V DC
isolation: Between power and control terminals
maximum output frequency: 500 kHz
Maximum Input Current per Phase: 76.0 A
Variable speed drive application selection: Building - HVAC Compressor centrifugal;Food and beverage processing Other application;Mining mineral and metal Fan;Mining mineral and metal Pump;Oil and gas Fan;Water and waste water Other application;Building - HVAC Screw compressor;Food and beverage processing Pump;Food and beverage processing Fan;Food and beverage processing Atomization;Oil and gas Electro submersible pump (ESP);Oil and gas Water injection pump;Oil and gas Jet fuel pump;Oil and gas Compressor for refinery;Water and waste water Centrifuge pump;Water and waste water Positive displacement pump;Water and waste water Electro submersible pump (ESP);Water and waste water Screw pump;Water and waste water Lobe compressor;Water and waste water Screw compressor;Water and waste water Compressor centrifugal;Water and waste water Fan;Water and waste water Conveyor;Water and waste water Mixer
Motor power range AC-3: 15…25 kW 200…240 V 3 phase
Quantity per Set: 1
enclosure mounting: Wall mounted
insulation resistance: > 1 MOhm 500 V DC for 1 minute to earth
noise level: 63.5 dB 86/188/EEC
power dissipation in W: Natural convection 107 W 200 V 4 kHz;Forced convection 707 W 200 V 4 kHz
volume of cooling air: 63402.43 Gal/hr(US) (240 m3/h)
operating position: Vertical +/- 10 degree
maximum THDI: <48 % from 80...100 % of load IEC 61000-3-12
electromagnetic compatibility: Electrostatic discharge immunity test level 3 IEC 61000-4-2;Radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3;Electrical fast transient/burst immunity test level 4 IEC 61000-4-4;1.2/50 µs - 8/20 µs surge immunity test level 3 IEC 61000-4-5;Conducted radio-frequency immunity test level 3 IEC 61000-4-6
pollution degree: 2 EN/IEC 61800-5-1
vibration resistance: 1.5 mm peak to peak 2…13 Hz)IEC 60068-2-6;1 gn 13…200 Hz)IEC 60068-2-6
shock resistance: 15 gn 11 ms IEC 60068-2-27
relative humidity: 5…95 % without condensation IEC 60068-2-3
ambient air temperature for operation: 5…122 °F (-15…50 °C) without derating);122…140 °F (50…60 °C) with derating factor)
Ambient Air Temperature for Storage: -40…158 °F (-40…70 °C)
operating altitude: <= 3280.84 ft (1000 m) without derating;1000...4800 m with current derating 1 % per 100 m
standards: UL 508C;EN/IEC 61800-3;Environment 1 category C2 EN/IEC 61800-3;Environment 2 category C3 EN/IEC 61800-3;EN/IEC 61800-5-1;IEC 61000-3-12;IEC 60721-3;IEC 61508;IEC 13849-1
Product Certifications: DNV-GL;ATEX zone 2/22;CSA;TÜV;UL;ATEX INERIS
Marking: CE
Standards: UL 508C;EN/IEC 61800-3;EN/IEC 61800-3 environment 1 category C2;EN/IEC 61800-3 environment 2 category C3;EN/IEC 61800-5-1;IEC 61000-3-12;IEC 60721-3;IEC 61508;IEC 13849-1
overvoltage category: III
regulation loop: Adjustable PID regulator
noise level: 63.5 dB
pollution degree: 2
Category: 22206-ATV630 FRAMES 3 & 4
Discount Schedule: CP4E
GTIN: 3606480701504
Returnability: Yes
Country of origin: IN
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 21.26 in (54.0 cm)
Package 1 Width: 13.78 in (35.0 cm)
Package 1 Length: 31.89 in (81.0 cm)
Package 1 Weight: 61.73 lb(US) (28.0 kg)
Unit Type of Package 2: PAL
Number of Units in Package 2: 1
Package 2 Height: 21.65 in (55.0 cm)
Package 2 Width: 13.39 in (34.0 cm)
Package 2 Length: 32.28 in (82.0 cm)
Package 2 Weight: 66.14 lb(US) (30.0 kg)
