ATV320U11M3C | ATV320 Variable speed drive 1.1kW, 200V, 3phase, Compact | Square D by Schneider Electric

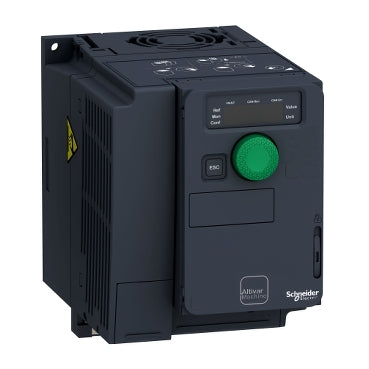

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to ATV320U11M3C
Overview
Details for ATV320U11M3C
ATV320 Variable speed drive 1.1kW, 200V, 3phase, Compact
Altivar Machine Variable speed drive- Rated supply voltage : 200...240 V (- 15...10 %)
- Network number of phases : 3 phases
- Supply frequency : 50...60 Hz (- 5...5 %)
- Motor power kW : 1.1 kW for heavy duty
- Motor power hp : 1.5 hp for heavy duty
Specifications
- Range of Product
- Altivar Machine ATV320
- Product or Component Type
- Variable speed drive
- Product Specific Application
- Complex machines
- variant
- Standard version
- format of the drive
- Compact
- Mounting Mode
- Wall mount
- communication port protocol
- Modbus serial;CANopen
- option card
- communication module;CANopen;communication module;EtherCAT;communication module;Profibus DP V1;communication module;PROFINET;communication module;Ethernet Powerlink;communication module;EtherNet/IP;communication module;DeviceNet
- [Us] rated supply voltage
- 200...240 V - 15...10 %
- nominal output current
- 6.9 A
- motor power kW
- 1.1 kW heavy duty
- EMC filter
- Without EMC filter
- IP degree of protection
- IP20
- discrete input number
- 7
- discrete input type
- STO safe torque off;24 V DC1.5 kOhm;DI1...DI6 logic inputs;24 V DC 30 V);DI5 programmable as pulse input 0…30 kHz;24 V DC 30 V)
- discrete input logic
- Positive logic (source);Negative logic (sink)
- discrete output number
- 3
- discrete output type
- Open collector DQ+ 0…1 kHz 30 V DC 100 mA;Open collector DQ- 0…1 kHz 30 V DC 100 mA
- analogue input number
- 3
- analogue input type
- AI1 voltage 0...10 V DC 30 kOhm 10 bits;AI2 bipolar differential voltage +/- 10 V DC 30 kOhm 10 bits;AI3 current 0...20 mA (or 4-20 mA;x-20 mA;20-x mA or other patterns by configuration) 250 Ohm 10 bits
- analogue output number
- 1
- analogue output type
- Software-configurable current AQ1 0...20 mA 800 Ohm 10 bits;Software-configurable voltage AQ1 0...10 V DC 470 Ohm 10 bits
- relay output type
- Configurable relay logic R1A 1 NO 100000 cycles;Configurable relay logic R1B 1 NC 100000 cycles;Configurable relay logic R1C;Configurable relay logic R2A 1 NO 100000 cycles;Configurable relay logic R2C
- maximum switching current
- Relay output R1A;R1B;R1C resistive;cos phi = 1 3 A 250 V AC;Relay output R1A;R1B;R1C resistive;cos phi = 1 3 A 30 V DC;Relay output R1A;R1B;R1C;R2A;R2C inductive;cos phi = 0.4 7 ms 2 A 250 V AC;Relay output R1A;R1B;R1C;R2A;R2C inductive;cos phi = 0.4 7 ms 2 A 30 V DC;Relay output R2A;R2C resistive;cos phi = 1 5 A 250 V AC;Relay output R2A;R2C resistive;cos phi = 1 5 A 30 V DC
- minimum switching current
- Relay output R1A;R1B;R1C;R2A;R2C 5 mA 24 V DC
- method of access
- Slave CANopen
- 4 quadrant operation possible
- True
- asynchronous motor control profile
- Voltage/frequency ratio;5 points;Flux vector control without sensor;standard;Voltage/frequency ratio - Energy Saving;quadratic U/f;Flux vector control without sensor - Energy Saving;Voltage/frequency ratio;2 points
- synchronous motor control profile
- Vector control without sensor
- maximum output frequency
- 0.599 kHz
- transient overtorque
- 170…200 % of nominal motor torque
- acceleration and deceleration ramps
- Linear;U;S;CUS;Ramp switching;Acceleration/deceleration ramp adaptation;Acceleration/deceleration automatic stop with DC injection
- motor slip compensation
- Automatic whatever the load;Adjustable 0...300 %;Not available in voltage/frequency ratio (2 or 5 points)
- switching frequency
- 2...16 kHz adjustable;4...16 kHz with derating factor
- nominal switching frequency
- 4 kHz
- braking to standstill
- By DC injection
- brake chopper integrated
- True
- line current
- 8.6 A 200 V heavy duty);7.2 A 240 V heavy duty)
- Maximum Input Current per Phase
- 8.6 A
- maximum output voltage
- 240 V
- apparent power
- 3.0 kVA 240 V heavy duty)
- Network Frequency
- 50-60 Hz
- relative symmetric network frequency tolerance
- 5 %
- prospective line Isc
- 5 kA
- base load current at high overload
- 6.1 A
- power dissipation in W
- Fan 58.0 W 200 V 4 kHz
- with safety function Safely Limited Speed (SLS)
- True
- with safety function Safe brake management (SBC/SBT)
- False
- with safety function Safe Operating Stop (SOS)
- False
- with safety function Safe Position (SP)
- False
- with safety function Safe programmable logic
- False
- with safety function Safe Speed Monitor (SSM)
- False
- with safety function Safe Stop 1 (SS1)
- True
- with sft fct Safe Stop 2 (SS2)
- False
- with safety function Safe torque off (STO)
- True
- with safety function Safely Limited Position (SLP)
- False
- with safety function Safe Direction (SDI)
- False
- protection type
- Input phase breaks drive;Overcurrent between output phases and earth drive;Overheating protection drive;Short-circuit between motor phases drive;Thermal protection drive
- Width
- 4.13 in (105.0 mm)
- Height
- 5.63 in (143.0 mm)
- Depth
- 5.43 in (138.0 mm)
- Net Weight
- 3.09 lb(US) (1.4 kg)
- operating position
- Vertical +/- 10 degree
- Product Certifications
- CE;ATEX;NOM;GOST;EAC;RCM;KC
- Marking
- CE;ATEX;UL;CSA;EAC;RCM
- Standards
- EN/IEC 61800-5-1
- electromagnetic compatibility
- Electrostatic discharge immunity test level 3 IEC 61000-4-2;Radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3;Electrical fast transient/burst immunity test level 4 IEC 61000-4-4;1.2/50 µs - 8/20 µs surge immunity test level 3 IEC 61000-4-5;Conducted radio-frequency immunity test level 3 IEC 61000-4-6;Voltage dips and interruptions immunity test IEC 61000-4-11
- environmental class (during operation)
- Class 3C3 according to IEC 60721-3-3;Class 3S2 according to IEC 60721-3-3
- maximum acceleration under shock impact (during operation)
- 150 m/s² at 11 ms
- maximum acceleration under vibrational stress (during operation)
- 10 m/s² at 13...200 Hz
- maximum deflection under vibratory load (during operation)
- 1.5 mm at 2...13 Hz
- permitted relative humidity (during operation)
- Class 3K5 according to EN 60721-3
- volume of cooling air
- 3909.82 Gal/hr(US) (14.8 m3/h)
- overvoltage category
- III
- regulation loop
- Adjustable PID regulator
- speed accuracy
- +/- 10 % of nominal slip 0.2 Tn to Tn
- pollution degree
- 2
- ambient air transport temperature
- -13…158 °F (-25…70 °C)
- ambient air temperature for operation
- 14…122 °F (-10…50 °C) without derating;122…140 °F (50…60 °C) with derating factor
- Ambient Air Temperature for Storage
- -13…158 °F (-25…70 °C)
- Category
- 22152-ATV320/ATV312/ATV32 (.25 THRU 7.5HP)
- Discount Schedule
- CP4B
- GTIN
- 3606480966620
- Returnability
- Yes
- Country of origin
- ID
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 7.09 in (18.0 cm)
- Package 1 Width
- 7.32 in (18.6 cm)
- Package 1 Length
- 7.36 in (18.7 cm)
- Package 1 Weight
- 3.49 lb(US) (1.585 kg)
- Unit Type of Package 2
- S06
- Number of Units in Package 2
- 30
- Package 2 Height
- 29.53 in (75.0 cm)
- Package 2 Width
- 23.62 in (60.0 cm)
- Package 2 Length
- 31.50 in (80.0 cm)
- Package 2 Weight
- 136.00 lb(US) (61.69 kg)
