ATV212WD22N4 | Altivar 212 VFD, 30 HP/43.5 amps, 380/460 VAC Three Phase Input/Output, IP20, EMC filter integrated | Square D by Schneider Electric

Square D | ATV212WD22N4

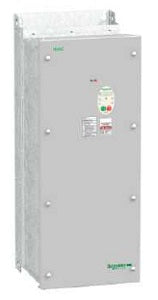

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to ATV212WD22N4

Documents and manuals

Square D ATV212WD22N4 Documents

Overview

Details for ATV212WD22N4

Altivar 212 VFD, 30 HP/43.5 amps, 380/460 VAC Three Phase Input/Output, IP20, EMC filter integrated

Altivar 212 VFD
  • 30 HP
  • Continuous Output Current: 43.5 amps
  • Rated Supply Voltage Voltage: 380-480 VAC
  • Network Number of Phases: 3-Phases
  • Degree of Protection: IP55 EN/IEC 61800-5-1, 60529


The Alitvar 212 drive includes:
  • 3 logic inputs
  • 2 analog inputs
  • 1 analog output
  • 2 relay outputs (with 1 NO and 1 NO/NC contacts)
  • Integrated 4 digit, 7-segment LED display with a 7 button keypad
  • RJ45 Modbus port plus a four-screw terminal block for BACnet, Modbus, Metasys N2 and Apogee P1 communication protocols
  • LonWorks is available in an option card

Specifications

Item Number ATV212WD22N4
Brand Square D
Amps 43.5
category Variable Speed Drives and Soft Starters
Family Altivar 212
Housing IP20
HP 30
Phase THREE
subcategory Building Drives
Type VFD
Voltage 480V
