ATV212WD15N4 | Altivar 212 VFD, 20 HP/30.5 amps, 380/480 VAC Three Phase Input/Output, Type 12 Enclosure Rating | Square D by Schneider Electric

Square D | ATV212WD15N4

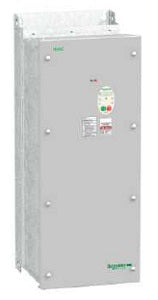

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to ATV212WD15N4

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Square D ATV212WD15N4 Documents

Datasheet More Info

Overview

Details for ATV212WD15N4

Altivar 212 VFD, 20 HP/30.5 amps, 380/480 VAC Three Phase Input/Output, Type 12 Enclosure Rating

Altivar 212 VFD

20 HP
Continuous Output Current: 30.5 amps
AC Line Input Line Voltage: 380/480 VAC Three Phase Input/Output
Enclosure Rating: Type 12 Enclosure Rating

The Alitvar 212 drive includes:

3 logic inputs
2 analog inputs
1 analog output
2 relay outputs (with 1 NO and 1 NO/NC contacts)
Integrated 4 digit, 7-segment LED display with a 7 button keypad
RJ45 Modbus port plus a four-screw terminal block for BACnet, Modbus, Metasys N2 and Apogee P1 communication protocols
LonWorks is available in an option card

Specifications

Item Number	ATV212WD15N4
Brand	Square D
Amps	30.5
category	Variable Speed Drives and Soft Starters
Family	Altivar 212
freeship	upsground
Housing	NEMA 12
HP	20
Phase	THREE
subcategory	Building Drives
Type	VFD
Voltage	480V
