ATV212HU75N4 | Altivar 212 VFD, 10 HP/16 amps, 380/480 VAC Three Phase Input/Output, IP20 | Square D by Schneider Electric

Brand: Square DSKU: ATV212HU75N4

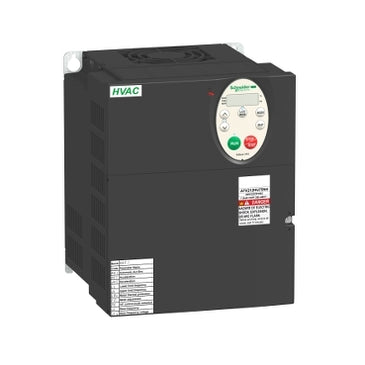

Square D | ATV212HU75N4
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to ATV212HU75N4

Overview Details for ATV212HU75N4

Altivar 212 VFD, 10 HP/16 amps, 380/480 VAC Three Phase Input/Output, IP20

Altivar 212 VFD
  • 10 HP
  • Continuous Output Current: 16 amps
  • AC Line Input Line Voltage: 380/480 VAC Three Phase Input/Output
  • Enclosure Rating: IP20


The Alitvar 212 drive includes:
  • 3 logic inputs
  • 2 analog inputs
  • 1 analog output
  • 2 relay outputs (with 1 NO and 1 NO/NC contacts)
  • Integrated 4 digit, 7-segment LED display with a 7 button keypad
  • RJ45 Modbus port plus a four-screw terminal block for BACnet, Modbus, Metasys N2 and Apogee P1 communication protocols
  • LonWorks is available in an option card
      This Altivar 212 variable speed drive can feed 3-phase asynchronous motors. Its protection index is IP21 and it has a built-in EMC filter. It works at a rated power up to 7.5kW / 10hp and a rated voltage from 380V to 480V AC. Its design is based on eco-energy with a reduction in energy consumption of up to 70% compared to a conventional control system. Thanks to its cable temperature rise reduction technology, the Altivar 212 drive offers immediate, disturbance-free operation avoiding additional options such as a line choke or DC choke to deal with current harmonics. It weighs 6.45kg and its dimensions are, 180mm wide, 232mm high, 170mm deep. It is specifically designed for the most common fluid management applications in tertiary sector buildings (HVAC) like heating, ventilation, air conditioning and pumping. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions). It is also CE, UL, CSA, C-Tick and NOM certified. The Altivar 212 offers optional motor chokes which can increase the maximum cable lengths between the drive and the motor and limit disturbance at the motor terminals. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. The Altivar 212 drive can easily be adapted to all building management systems thanks to its numerous functions and communication protocols integrated as standard, Modbus, METASYS N2, APOGEE FLN P1 and BACnet. It is eco-friendly and complies with directives such as RoHS, WEEE, etc.relating to environmental protection.

Specifications

device short name
ATV212
product destination
Asynchronous motors
Phase
3 phase
motor power kW
7.5 kW
Maximum Horse Power Rating
10 hp
supply voltage limits
323…528 V
supply frequency
50...60 Hz - 5...5 %
line current
11.7 A 480 V;14.7 A 380 V
Range of Product
Altivar 212
Product or Component Type
Variable speed drive
Product Specific Application
Pumps and fans in HVAC
communication port protocol
APOGEE FLN;LonWorks;BACnet;METASYS N2;Modbus
[Us] rated supply voltage
380...480 V - 15...10 %
EMC filter
Class C2 EMC filter integrated
IP degree of protection
IP21
apparent power
12.2 kVA 380 V
continuous output current
16 A 380 V;16 A 460 V
maximum transient current
17.6 A 60 s
speed drive output frequency
0.5…200 Hz
speed range
1…10
speed accuracy
+/- 10 % of nominal slip 0.2 Tn to Tn
local signalling
for DC bus energized 1 LED (red)
output voltage
<= power supply voltage
isolation
Electrical between power and control
type of cable
Without mounting kit 1 IEC cable 113 °F (45 °C);copper 90 °C / XLPE/EPR;Without mounting kit 1 IEC cable 113 °F (45 °C);copper 70 °C / PVC;With UL Type 1 kit 3 UL 508 cable 104 °F (40 °C);copper 75 °C / PVC
electrical connection
VIA;VIB;FM;FLA;FLB;FLC;RY;RC;F;R;RES terminal 0.00 in² (2.5 mm²) / AWG 14;L1/R;L2/S;L3/T terminal 0.02 in² (16 mm²) / AWG 6
tightening torque
5.31 lbf.in (0.6 N.m) VIA;VIB;FM;FLA;FLB;FLC;RY;RC;F;R;RES);22.13 lbf.in (2.5 N.m);22 lb.in L1/R;L2/S;L3/T)
supply
Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %;<10 A overload and short-circuit protection;Internal supply 24 V DC 21…27 V);<200 A overload and short-circuit protection
sampling duration
2 ms +/- 0.5 ms F discrete;2 ms +/- 0.5 ms R discrete;2 ms +/- 0.5 ms RES discrete;3.5 ms +/- 0.5 ms VIA analog;22 ms +/- 0.5 ms VIB analog
response time
FM 2 ms +/- 0.5 ms analog;FLA;FLC 7 ms +/- 0.5 ms discrete;FLB;FLC 7 ms +/- 0.5 ms discrete;RY;RC 7 ms +/- 0.5 ms discrete
accuracy
+/- 0.6 % VIA) for a temperature variation 60 °C;+/- 0.6 % VIB) for a temperature variation 60 °C;+/- 1 % FM) for a temperature variation 60 °C
linearity error
VIA +/- 0.15 % of maximum value input;VIB +/- 0.15 % of maximum value input;FM +/- 0.2 % output
analogue output type
FM switch-configurable voltage 0...10 V DC 7620 Ohm 10 bits;FM switch-configurable current 0...20 mA 970 Ohm 10 bits
discrete output type
Configurable relay logic FLA;FLC) NO - 100000 cycles;Configurable relay logic FLB;FLC) NC - 100000 cycles;Configurable relay logic RY;RC) NO - 100000 cycles
minimum switching current
3 mA 24 V DC configurable relay logic
maximum switching current
5 A 250 V AC resistive cos phi = 1 L/R = 0 ms FL;R);5 A 30 V DC resistive cos phi = 1 L/R = 0 ms FL;R);2 A 250 V AC inductive cos phi = 0.4 L/R = 7 ms FL;R);2 A 30 V DC inductive cos phi = 0.4 L/R = 7 ms FL;R)
discrete input type
F programmable 24 V DC level 1 PLC 4700 Ohm;R programmable 24 V DC level 1 PLC 4700 Ohm;RES programmable 24 V DC level 1 PLC 4700 Ohm
discrete input logic
Positive logic (source) F;R;RES);<= 5 V;>= 11 V;Negative logic (sink) F;R;RES);>= 16 V;<= 10 V
dielectric strength
3535 V DC between earth and power terminals;5092 V DC between control and power terminals
insulation resistance
>= 1 mOhm 500 V DC for 1 minute
frequency resolution
Display unit 0.1 Hz;Analog input 0.024/50 Hz
Communication Service
Monitoring inhibitable;Read holding registers (03) 2 words maximum;Write multiple registers (16) 2 words maximum;Write single register (06);Read device identification (43);Time out setting from 0.1 to 100 s
option card
Communication card LonWorks
power dissipation in W
291 W
air flow
26417.68 Gal/hr(US) (100 m3/h)
functionality
Mid
specific application
HVAC
Variable speed drive application selection
Building - HVAC Compressor for scroll;Building - HVAC Fan;Building - HVAC Pump
Motor power range AC-3
7…11 kW 380…440 V 3 phase;7…11 kW 480…500 V 3 phase
motor starter type
Variable speed drive
discrete output number
2
analogue input number
2
analogue input type
VIA switch-configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits;VIB configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits;VIB configurable PTC probe 0...6 probes 1500 Ohm;VIA switch-configurable current 0...20 mA 250 Ohm 10 bits
analogue output number
1
physical interface
2-wire RS 485
Connector Type
1 open style;1 RJ45
Transmission Rate
9600 bps or 19200 bps
transmission frame
RTU
number of addresses
1…247
data format
8 bits;1 stop;odd even or no configurable parity
type of polarization
No impedance
asynchronous motor control profile
Voltage/frequency ratio - Energy Saving;quadratic U/f;Voltage/frequency ratio;automatic IR compensation (U/f + automatic Uo);Flux vector control without sensor;standard;Voltage/frequency ratio;5 points;Voltage/frequency ratio;2 points
torque accuracy
+/- 15 %
transient overtorque
120 % of nominal motor torque +/- 10 % 60 s
acceleration and deceleration ramps
Linear adjustable separately from 0.01 to 3200 s;Automatic based on the load
motor slip compensation
Not available in voltage/frequency ratio motor control;Automatic whatever the load;Adjustable
switching frequency
6...16 kHz adjustable;12...16 kHz with derating factor
nominal switching frequency
12 kHz
braking to standstill
By DC injection
Network Frequency
47.5...63 Hz
prospective line Isc
22 kA
protection type
Overheating protection drive;Thermal power stage drive;Short-circuit between motor phases drive;Input phase breaks drive;Overcurrent between output phases and earth drive;Overvoltages on the DC bus drive;Break on the control circuit drive;Against exceeding limit speed drive;Line supply overvoltage and undervoltage drive;Line supply undervoltage drive;Against input phase loss drive;Thermal protection motor;Motor phase break motor;With PTC probes motor
Width
7.09 in (180 mm)
Height
9.13 in (232 mm)
Depth
6.69 in (170 mm)
Net Weight
14.22 lb(US) (6.45 kg)
pollution degree
3 IEC 61800-5-1
IP degree of protection
IP20 on upper part without blanking plate on cover EN/IEC 61800-5-1;IP20 on upper part without blanking plate on cover EN/IEC 60529;IP21 EN/IEC 61800-5-1;IP21 EN/IEC 60529;IP41 on upper part EN/IEC 61800-5-1;IP41 on upper part EN/IEC 60529
vibration resistance
1.5 mm 3…13 Hz)EN/IEC 60068-2-6;1 gn 13…200 Hz)EN/IEC 60068-2-8
shock resistance
15 gn 11 ms IEC 60068-2-27
environmental characteristic
Classes 3C1 IEC 60721-3-3;Classes 3S2 IEC 60721-3-3
noise level
51 dB 86/188/EEC
operating altitude
3280.84...9842.52 ft (1000...3000 m) limited to 2000 m for the Corner Grounded distribution network with current derating 1 % per 100 m;<= 3280.84 ft (1000 m) without derating
relative humidity
5…95 % without condensation IEC 60068-2-3;5…95 % without dripping water IEC 60068-2-3
ambient air temperature for operation
14…104 °F (-10…40 °C) without derating);104…122 °F (40…50 °C) with derating factor)
operating position
Vertical +/- 10 degree
Product Certifications
C-tick;NOM 117;UL;CSA
Marking
CE
Standards
EN 61800-3;EN 61800-3 environments 1 category C1;IEC 61800-3 category C3;IEC 61800-5-1;IEC 61800-3 category C2;IEC 61800-3 environments 1 category C2;EN 61800-3 environments 2 category C2;EN 61800-3 environments 1 category C2;EN 61800-3 category C2;EN 61800-3 category C3;EN 61800-3 environments 2 category C3;IEC 61800-3 environments 1 category C3;UL Type 1;IEC 61800-3 environments 2 category C2;EN 61800-3 environments 1 category C3;IEC 61800-3 environments 2 category C1;EN 55011 class A group 1;EN 61800-3 environments 2 category C1;EN 61800-5-1;IEC 61800-3 environments 2 category C3;IEC 61800-3;IEC 61800-3 environments 1 category C1
assembly style
With heat sink
electromagnetic compatibility
Electrostatic discharge immunity test level 3 IEC 61000-4-2;Radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3;Electrical fast transient/burst immunity test level 4 IEC 61000-4-4;1.2/50 µs - 8/20 µs surge immunity test level 3 IEC 61000-4-5;Conducted radio-frequency immunity test level 3 IEC 61000-4-6;Voltage dips and interruptions immunity test IEC 61000-4-11
regulation loop
Adjustable PI regulator
Ambient Air Temperature for Storage
-13…158 °F (-25…70 °C)
Category
22157-ATV212 1 - 25 HP 460 VOLT
Discount Schedule
CP4D
GTIN
3606480322501
Returnability
Yes
Country of origin
ID
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
10.43 in (26.5 cm)
Package 1 Width
9.25 in (23.5 cm)
Package 1 Length
12.01 in (30.5 cm)
Package 1 Weight
13.47 lb(US) (6.112 kg)
Unit Type of Package 2
P06
Number of Units in Package 2
10
Package 2 Height
29.53 in (75 cm)
Package 2 Width
23.62 in (60 cm)
Package 2 Length
31.50 in (80 cm)
Package 2 Weight
163.41 lb(US) (74.12 kg)
Warranty
18 months
