ATV212HD15N4 | Altivar 212 VFD, 20 hp/30.5 amps, 400/480 VAC Three Phase Input/Three Phase Output, IP20 Housing (Replaces the Altivar21) | Square D by Schneider Electric

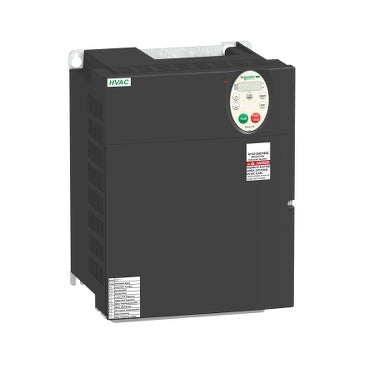

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to ATV212HD15N4
Overview
Details for ATV212HD15N4
Altivar 212 VFD, 20 hp/30.5 amps, 400/480 VAC Three Phase Input/Three Phase Output, IP20 Housing (Replaces the Altivar21)
Altivar 212 VFD- 20 HP
- Continuous Output Current: 30.5 amps
- AC Line Input Line Voltage: 380/480 VAC Three Phase Input/Output
- Enclosure Rating: IP20
The Alitvar 212 drive includes:
- 3 logic inputs
- 2 analog inputs
- 1 analog output
- 2 relay outputs (with 1 NO and 1 NO/NC contacts)
- Integrated 4 digit, 7-segment LED display with a 7 button keypad
- RJ45 Modbus port plus a four-screw terminal block for BACnet, Modbus, Metasys N2 and Apogee P1 communication protocols
- LonWorks is available in an option card
- This Altivar 212 variable speed drive can feed 3-phase asynchronous motors. Its protection index is IP21 and it has a built-in EMC filter. It works at a rated power up to 15kW / 20hp and a rated voltage from 380V to 480V AC. Its design is based on eco-energy with a reduction in energy consumption of up to 70% compared to a conventional control system. Thanks to its cable temperature rise reduction technology, the Altivar 212 drive offers immediate, disturbance-free operation avoiding additional options such as a line choke or DC choke to deal with current harmonics. It weighs 11.65kg and its dimensions are, 245mm wide, 330mm high, 190mm deep. It is specifically designed for the most common fluid management applications in tertiary sector buildings (HVAC) like heating, ventilation, air conditioning and pumping. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions). It is also CE, UL, CSA, C-Tick and NOM certified. The Altivar 212 offers optional motor chokes which can increase the maximum cable lengths between the drive and the motor and limit disturbance at the motor terminals. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. The Altivar 212 drive can easily be adapted to all building management systems thanks to its numerous functions and communication protocols integrated as standard, Modbus, METASYS N2, APOGEE FLN P1 and BACnet. It is eco-friendly and complies with directives such as RoHS, WEEE, etc.relating to environmental protection.
Specifications
- device short name
- ATV212
- product destination
- Asynchronous motors
- Phase
- 3 phase
- motor power kW
- 15 kW
- Maximum Horse Power Rating
- 20 hp
- supply voltage limits
- 323…528 V
- supply frequency
- 50...60 Hz - 5...5 %
- line current
- 22.8 A 480 V;28.5 A 380 V
- Range of Product
- Altivar 212
- Product or Component Type
- Variable speed drive
- Product Specific Application
- Pumps and fans in HVAC
- Communication Port Protocol
- BACnet;Modbus;METASYS N2;APOGEE FLN;LonWorks
- [Us] rated supply voltage
- 380...480 V - 15...10 %
- EMC filter
- Class C2 EMC filter integrated
- IP degree of protection
- IP21
- apparent power
- 23.2 kVA 380 V
- continuous output current
- 30.5 A 380 V;30.5 A 460 V
- maximum transient current
- 33.6 A 60 s
- speed drive output frequency
- 0.5…200 Hz
- speed range
- 1…10
- speed accuracy
- +/- 10 % of nominal slip 0.2 Tn to Tn
- local signalling
- for DC bus energized 1 LED (red)
- output voltage
- <= power supply voltage
- isolation
- Electrical between power and control
- type of cable
- Without mounting kit 1 IEC cable 113 °F (45 °C);copper 90 °C / XLPE/EPR;Without mounting kit 1 IEC cable 113 °F (45 °C);copper 70 °C / PVC;With UL Type 1 kit 3 UL 508 cable 104 °F (40 °C);copper 75 °C / PVC
- electrical connection
- VIA;VIB;FM;FLA;FLB;FLC;RY;RC;F;R;RES terminal 0.00 in² (2.5 mm²) / AWG 14;L1/R;L2/S;L3/T terminal 0.04 in² (25 mm²) / AWG 3
- tightening torque
- 5.31 lbf.in (0.6 N.m) VIA;VIB;FM;FLA;FLB;FLC;RY;RC;F;R;RES);39.83 lbf.in (4.5 N.m);40 lb.in L1/R;L2/S;L3/T)
- supply
- Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %;<10 A overload and short-circuit protection;Internal supply 24 V DC 21…27 V);<200 A overload and short-circuit protection
- sampling duration
- 2 ms +/- 0.5 ms F discrete;2 ms +/- 0.5 ms R discrete;2 ms +/- 0.5 ms RES discrete;3.5 ms +/- 0.5 ms VIA analog;22 ms +/- 0.5 ms VIB analog
- response time
- FM 2 ms +/- 0.5 ms analog;FLA;FLC 7 ms +/- 0.5 ms discrete;FLB;FLC 7 ms +/- 0.5 ms discrete;RY;RC 7 ms +/- 0.5 ms discrete
- accuracy
- +/- 0.6 % VIA) for a temperature variation 60 °C;+/- 0.6 % VIB) for a temperature variation 60 °C;+/- 1 % FM) for a temperature variation 60 °C
- linearity error
- VIA +/- 0.15 % of maximum value input;VIB +/- 0.15 % of maximum value input;FM +/- 0.2 % output
- analogue output type
- FM switch-configurable voltage 0...10 V DC 7620 Ohm 10 bits;FM switch-configurable current 0...20 mA 970 Ohm 10 bits
- discrete output type
- Configurable relay logic FLA;FLC) NO - 100000 cycles;Configurable relay logic FLB;FLC) NC - 100000 cycles;Configurable relay logic RY;RC) NO - 100000 cycles
- minimum switching current
- 3 mA 24 V DC configurable relay logic
- maximum switching current
- 5 A 250 V AC resistive cos phi = 1 L/R = 0 ms FL;R);5 A 30 V DC resistive cos phi = 1 L/R = 0 ms FL;R);2 A 250 V AC inductive cos phi = 0.4 L/R = 7 ms FL;R);2 A 30 V DC inductive cos phi = 0.4 L/R = 7 ms FL;R)
- discrete input type
- F programmable 24 V DC level 1 PLC 4700 Ohm;R programmable 24 V DC level 1 PLC 4700 Ohm;RES programmable 24 V DC level 1 PLC 4700 Ohm
- discrete input logic
- Positive logic (source) F;R;RES);<= 5 V;>= 11 V;Negative logic (sink) F;R;RES);>= 16 V;<= 10 V
- dielectric strength
- 3535 V DC between earth and power terminals;5092 V DC between control and power terminals
- insulation resistance
- >= 1 mOhm 500 V DC for 1 minute
- frequency resolution
- Display unit 0.1 Hz;Analog input 0.024/50 Hz
- Communication Service
- Time out setting from 0.1 to 100 s;Read device identification (43);Monitoring inhibitable;Write single register (06);Write multiple registers (16) 2 words maximum;Read holding registers (03) 2 words maximum
- option card
- Communication card LonWorks
- power dissipation in W
- 625 W
- air flow
- 54420.42 Gal/hr(US) (206 m3/h)
- functionality
- Mid
- specific application
- HVAC
- Variable speed drive application selection
- Compressor for scroll Building - HVAC;Fan Building - HVAC;Pump Building - HVAC
- Motor power range AC-3
- 15…25 kW 380…440 V 3 phase;15…25 kW 480…500 V 3 phase
- motor starter type
- Variable speed drive
- discrete output number
- 2
- analogue input number
- 2
- analogue input type
- VIA switch-configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits;VIB configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits;VIB configurable PTC probe 0...6 probes 1500 Ohm;VIA switch-configurable current 0...20 mA 250 Ohm 10 bits
- analogue output number
- 1
- physical interface
- 2-wire RS 485
- Connector Type
- 1 open style;1 RJ45
- Transmission Rate
- 9600 bps or 19200 bps
- transmission frame
- RTU
- number of addresses
- 1…247
- data format
- 8 bits;1 stop;odd even or no configurable parity
- type of polarization
- No impedance
- asynchronous motor control profile
- Flux vector control without sensor;standard;Voltage/frequency ratio;2 points;Voltage/frequency ratio;automatic IR compensation (U/f + automatic Uo);Voltage/frequency ratio - Energy Saving;quadratic U/f;Voltage/frequency ratio;5 points
- torque accuracy
- +/- 15 %
- transient overtorque
- 120 % of nominal motor torque +/- 10 % 60 s
- acceleration and deceleration ramps
- Linear adjustable separately from 0.01 to 3200 s;Automatic based on the load
- motor slip compensation
- Automatic whatever the load;Not available in voltage/frequency ratio motor control;Adjustable
- switching frequency
- 6...16 kHz adjustable;12...16 kHz with derating factor
- nominal switching frequency
- 12 kHz
- braking to standstill
- By DC injection
- Network Frequency
- 47.5...63 Hz
- prospective line Isc
- 22 kA
- protection type
- Overheating protection drive;Thermal power stage drive;Short-circuit between motor phases drive;Input phase breaks drive;Overcurrent between output phases and earth drive;Overvoltages on the DC bus drive;Break on the control circuit drive;Against exceeding limit speed drive;Line supply overvoltage and undervoltage drive;Line supply undervoltage drive;Against input phase loss drive;Thermal protection motor;Motor phase break motor;With PTC probes motor
- Width
- 9.65 in (245 mm)
- Height
- 12.99 in (330 mm)
- Depth
- 7.48 in (190 mm)
- Net Weight
- 25.68 lb(US) (11.65 kg)
- pollution degree
- 2 IEC 61800-5-1
- IP degree of protection
- IP20 on upper part without blanking plate on cover EN/IEC 61800-5-1;IP20 on upper part without blanking plate on cover EN/IEC 60529;IP21 EN/IEC 61800-5-1;IP21 EN/IEC 60529;IP41 on upper part EN/IEC 61800-5-1;IP41 on upper part EN/IEC 60529
- vibration resistance
- 1.5 mm 3…13 Hz)EN/IEC 60068-2-6;1 gn 13…200 Hz)EN/IEC 60068-2-8
- shock resistance
- 15 gn 11 ms IEC 60068-2-27
- environmental characteristic
- Classes 3C1 IEC 60721-3-3;Classes 3S2 IEC 60721-3-3
- noise level
- 54 dB 86/188/EEC
- operating altitude
- 3280.84...9842.52 ft (1000...3000 m) limited to 2000 m for the Corner Grounded distribution network with current derating 1 % per 100 m;<= 3280.84 ft (1000 m) without derating
- relative humidity
- 5…95 % without condensation IEC 60068-2-3;5…95 % without dripping water IEC 60068-2-3
- ambient air temperature for operation
- 14…104 °F (-10…40 °C) without derating);104…122 °F (40…50 °C) with derating factor)
- operating position
- Vertical +/- 10 degree
- Product Certifications
- CSA;UL;C-tick;NOM 117
- Marking
- CE
- Standards
- IEC 61800-3 category C2;EN 61800-3 category C3;IEC 61800-3 category C3;IEC 61800-5-1;EN 61800-3 environments 2 category C1;EN 55011 class A group 1;IEC 61800-3 environments 2 category C2;EN 61800-3 environments 2 category C2;IEC 61800-3 environments 1 category C2;IEC 61800-3 environments 1 category C3;EN 61800-5-1;UL Type 1;IEC 61800-3 environments 2 category C3;EN 61800-3 category C2;EN 61800-3 environments 1 category C3;IEC 61800-3;EN 61800-3 environments 1 category C2;EN 61800-3 environments 2 category C3;IEC 61800-3 environments 1 category C1;EN 61800-3;IEC 61800-3 environments 2 category C1;EN 61800-3 environments 1 category C1
- assembly style
- With heat sink
- electromagnetic compatibility
- Electrostatic discharge immunity test level 3 IEC 61000-4-2;Radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3;Electrical fast transient/burst immunity test level 4 IEC 61000-4-4;1.2/50 µs - 8/20 µs surge immunity test level 3 IEC 61000-4-5;Conducted radio-frequency immunity test level 3 IEC 61000-4-6;Voltage dips and interruptions immunity test IEC 61000-4-11
- regulation loop
- Adjustable PI regulator
- Ambient Air Temperature for Storage
- -13…158 °F (-25…70 °C)
- Category
- 22157-ATV212 1 - 25 HP 460 VOLT
- Discount Schedule
- CP4D
- GTIN
- 3606480322525
- Returnability
- Yes
- Country of origin
- ID
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 10.83 in (27.5 cm)
- Package 1 Width
- 15.55 in (39.5 cm)
- Package 1 Length
- 11.81 in (30 cm)
- Package 1 Weight
- 25.45 lb(US) (11.544 kg)
- Unit Type of Package 2
- P06
- Number of Units in Package 2
- 4
- Package 2 Height
- 29.53 in (75 cm)
- Package 2 Width
- 23.62 in (60 cm)
- Package 2 Length
- 31.50 in (80 cm)
- Package 2 Weight
- 131.36 lb(US) (59.584 kg)
- Warranty
- 18 months
