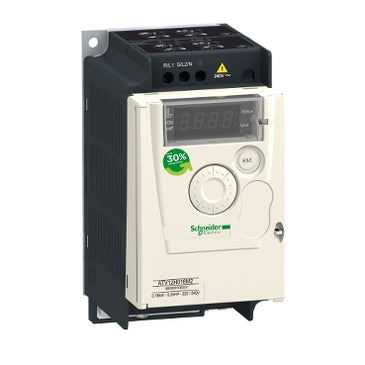

ATV12H037M3 | Variable Speed Drive ATV12, 0.37kW, 0.55HP, 200 to 240V, 3 Phase, with Heat Sink | Square D by Schneider Electric

Brand: Square DSKU: ATV12H037M3

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to ATV12H037M3

Jump to: Overview & Specifications Reviews

Overview Details for ATV12H037M3

Variable Speed Drive ATV12, 0.37kW, 0.55HP, 200 to 240V, 3 Phase, with Heat Sink

Variable Speed Drive ATV12

0.37kW
Horsepower: 0.55HP
Voltage Rating: 200 to 240V
3 Phase - with Heat sink

Altivar Machine ATV12 is an offer of variable speed drives for commercial equipment and simple machines. It works at a rated power up to 0.37kW / 0.55hp and a rated voltage from 200V to 240V AC. It is designed with heatsink for normal environments and fan-cooled enclosure. It has advanced PID and catch on the fly functions, basic cabling, and easy motor control setting. Based on the needs, it can be delivered without heatsink, with embedded EMC filter, or as standard version. The Altivar 12 drive integrates as standard the Modbus communication protocol. This Altivar Machine ATV12 is designed for simple applications, in industry, commercial machines and HVAC machines such as conveyors, pumps, extractors, access barriers and treadmills. It conforms to IEC, UL and other international standards. SoMove software compatibility enables saving and transfering of configurations to spare drive, reducing maintenance downtime. It features an optimized application of power and torque for ventilation and pumping applications, this allows up to 30% energy savings.

Specifications

Range of Product: Altivar 12
Product or Component Type: Variable speed drive
Product Specific Application: Simple machine
Mounting Mode: Cabinet mount
communication port protocol: Modbus
supply frequency: 50/60 Hz +/- 5 %
[Us] rated supply voltage: 200...240 V - 15...10 %
nominal output current: 2.4 A
Maximum Horse Power Rating: 0.55 hp
motor power kW: 0.37 kW
Maximum Horse Power Rating: 0.55 hp
EMC filter: Without EMC filter
IP degree of protection: IP20
discrete input number: 4
discrete output number: 2
analogue input number: 1
analogue output number: 1
relay output number: 1
physical interface: 2-wire RS 485
Connector Type: 1 RJ45
continuous output current: 2.4 A 4 kHz
method of access: Server Modbus serial
speed drive output frequency: 0.5…400 Hz
speed range: 1…20
sampling duration: 20 ms +/- 1 ms logic input;10 ms analogue input
linearity error: +/- 0.3 % of maximum value analogue input
frequency resolution: Analog input converter A/D;10 bits;Display unit 0.1 Hz
time constant: 20 ms +/- 1 ms for reference change
Transmission Rate: 9.6 kbit/s;19.2 kbit/s;38.4 kbit/s
transmission frame: RTU
number of addresses: 1…247
data format: 8 bits;configurable odd;even or no parity
communication service: Read holding registers (03) 29 words;Write single register (06) 29 words;Write multiple registers (16) 27 words;Read/write multiple registers (23) 4/4 words;Read device identification (43)
type of polarization: No impedance
4 quadrant operation possible: False
asynchronous motor control profile: Quadratic voltage/frequency ratio;Voltage/frequency ratio (V/f);Sensorless flux vector control
maximum output frequency: 4 kHz
transient overtorque: 150…170 % of nominal motor torque depending on drive rating and type of motor
acceleration and deceleration ramps: S;Linear from 0 to 999.9 s;U
motor slip compensation: Adjustable;Preset in factory
switching frequency: 2...16 kHz adjustable;4...16 kHz with derating factor
nominal switching frequency: 4 kHz
braking to standstill: By DC injection
brake chopper integrated: False
line current: 3.6 A 100 V heavy duty);3.0 A 120 V heavy duty)
Maximum Input Current per Phase: 3.0 A
maximum output voltage: 240 V
apparent power: 1.2 kVA 240 V heavy duty)
maximum transient current: 3.6 A 60 s heavy duty);4.0 A 2 s heavy duty)
Network Frequency: 50-60 Hz
relative symmetric network frequency tolerance: 5 %
prospective line Isc: 5 kA
base load current at high overload: 2.4 A
power dissipation in W: Natural 24.0 W
with safety function Safely Limited Speed (SLS): False
with safety function Safe brake management (SBC/SBT): False
with safety function Safe Operating Stop (SOS): False
with safety function Safe Position (SP): False
with safety function Safe programmable logic: False
with safety function Safe Speed Monitor (SSM): False
with safety function Safe Stop 1 (SS1): False
with sft fct Safe Stop 2 (SS2): False
with safety function Safe torque off (STO): False
with safety function Safely Limited Position (SLP): False
with safety function Safe Direction (SDI): False
protection type: Line supply overvoltage;Line supply undervoltage;Overcurrent between output phases and earth;Overheating protection;Short-circuit between motor phases;Against input phase loss in three-phase;Thermal motor protection via the drive by continuous calculation of I²t
tightening torque: 7.08 lbf.in (0.8 N.m)
insulation: Electrical between power and control
Quantity per Set: Set of 1
Width: 2.83 in (72 mm)
Height: 5.63 in (143 mm)
Depth: 4.77 in (121.2 mm)
Net Weight: 1.76 lb(US) (0.8 kg)
operating altitude: <= 3280.84 ft (1000 m) without derating;> 3280.84...9842.52 ft (> 1000...3000 m) with current derating 1 % per 100 m
operating position: Vertical +/- 10 degree
Product Certifications: NOM;CSA;C-tick;UL;GOST;RCM;KC
Marking: CE
Standards: UL 508C;UL 618000-5-1;EN/IEC 61800-5-1;EN/IEC 61800-3
assembly style: With heat sink
electromagnetic compatibility: Electrical fast transient/burst immunity test level 4 EN/IEC 61000-4-4;Electrostatic discharge immunity test level 3 EN/IEC 61000-4-2;Immunity to conducted disturbances level 3 EN/IEC 61000-4-6;Radiated radio-frequency electromagnetic field immunity test level 3 EN/IEC 61000-4-3;Surge immunity test level 3 EN/IEC 61000-4-5;Voltage dips and interruptions immunity test EN/IEC 61000-4-11
environmental class (during operation): Class 3C3 according to IEC 60721-3-3;Class 3S2 according to IEC 60721-3-3
maximum acceleration under shock impact (during operation): 150 m/s² at 11 ms
maximum acceleration under vibrational stress (during operation): 10 m/s² at 13...200 Hz
maximum deflection under vibratory load (during operation): 1.5 mm at 2...13 Hz
overvoltage category: Class III
regulation loop: Adjustable PID regulator
electromagnetic emission: Radiated emissions environment 1 category C2 EN/IEC 61800-3 2...16 kHz shielded motor cable;Conducted emissions with additional EMC filter environment 1 category C2 EN/IEC 61800-3 4...12 kHz shielded motor cable <65.62 ft (20 m);Conducted emissions with additional EMC filter environment 2 category C3 EN/IEC 61800-3 4...12 kHz shielded motor cable <65.62 ft (20 m)
vibration resistance: 1 gn 13…200 Hz)EN/IEC 60068-2-6;1.5 mm peak to peak 3…13 Hz) - drive unmounted on symmetrical DIN rail - EN/IEC 60068-2-6
shock resistance: 15 gn 11 ms EN/IEC 60068-2-27
relative humidity: 5…95 % without condensation IEC 60068-2-3;5…95 % without dripping water IEC 60068-2-3
noise level: 0 dB
pollution degree: 2
ambient air transport temperature: -13…158 °F (-25…70 °C)
ambient air temperature for operation: 14…104 °F (-10…40 °C) without derating;104…140 °F (40…60 °C) with current derating 2.2 % per °C
Ambient Air Temperature for Storage: -13…158 °F (-25…70 °C)
Category: 22042-ATV12 DRIVE AND ACCESSORIES
Discount Schedule: CP4B
GTIN: 3606480071157
Returnability: Yes
Country of origin: ID
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 4.72 in (12 cm)
Package 1 Width: 7.36 in (18.7 cm)
Package 1 Length: 7.68 in (19.5 cm)
Package 1 Weight: 2.22 lb(US) (1.006 kg)
Unit Type of Package 2: P06
Number of Units in Package 2: 45
Package 2 Height: 29.53 in (75 cm)
Package 2 Width: 23.62 in (60 cm)
Package 2 Length: 31.50 in (80 cm)
Package 2 Weight: 128.46 lb(US) (58.27 kg)
Warranty: 18 months
