ATS01N103FT | Altistart 01 Soft Start (ATS01), for Asynchronous Motor, 3A, 110-480V, 0.5-1.5 HP, 0.55-1.1 kW, Single-phase, Integrated Bypass, w/Heat Sink | Square D by Schneider Electric

Square D | ATS01N103FT

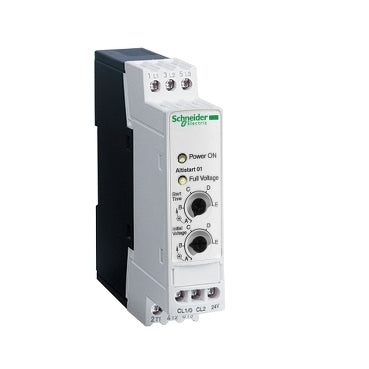

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to ATS01N103FT

Documents and manuals

Square D ATS01N103FT Documents

Overview

Details for ATS01N103FT

Altistart 01 Soft Start (ATS01), for Asynchronous Motor, 3A, 110-480V, 0.5-1.5 HP, 0.55-1.1 kW, Single-phase, Integrated Bypass, w/Heat Sink

Altistart 01 Soft Start (ATS01)
  • For Asynchronous Motor
  • lcL Starter Rating: 3A
  • US Rated Supply Voltage: 110-480V
  • Motor Power Horsepower: 0.5-1.5 HP
  • Motor Power kW: 0.55-1.1 kW
  • Network Number of Phases: Single-phase
  • Integrated Bypass
  • Assembly Style: with Heat Sink
This Altistart 01 soft starter is DIN rail mounted and can feed single or 3-phase asynchronous motors with a rating up to 3A. This Altistart 01 can be used for a motor rated power up to 1.1kW or 1.5hp for 3-phase (110V to 480V AC) and up to 0.37kW for single phase (110V to 230V AC). This DIN rail mounted soft starter is designed to enable smooth start for simple machines such as conveyors, conveyor belts, pumps, fans, compressors, automatic doors and gates, small cranes and belt-driven machinery. It is 22.5mm wide, this makes it one of the smallest soft starters on the market; it can be installed nearly everywhere. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Simple setup with only 2 settings: possible to configure by non-specialists. It provides smooth starting for your machinery, avoiding mechanical stresses and extending their service life.

Specifications

Range of Product
Altistart 01
Product or Component Type
Soft starter
product destination
Asynchronous motors
Product Specific Application
Simple machine
device short name
ATS01
Phase
1 phase
[Us] rated supply voltage
110...480 V - 10...10 %
motor power kW
0.37 kW;3 phase 230 V;0.55 kW;3 phase 230 V;1.1 kW;3 phase 400 V;0.37 kW;1 phase 230 V
Maximum Horse Power Rating
0.5 hp;3 phase 230 V;0.5 hp;3 phase 460 V;1.5 hp;3 phase 460 V
IcL starter rating
3 A
utilisation category
AC-53B EN/IEC 60947-4-2
current consumption
15 A at nominal load
type of start
Start with voltage ramp
power dissipation in W
19 W in transient state;4 W at full load and at end of starting
assembly style
With heat sink
Function Available
Integrated bypass
supply voltage limits
99…528 V
supply frequency
50...60 Hz - 5...5 %
Network Frequency
47.5...63 Hz
output voltage
<= power supply voltage
[Uc] control circuit voltage
110 V AC +/- 10 % 30 mA;24 V AC/DC +/- 10 % 25 mA;240 V AC +/- 10 % 65 mA
starting time
1 s / 100;5 s / 20;Adjustable from 1 to 5 s
starting torque
30...80 % of starting torque of motor connected directly on the line supply
discrete output current
2 A DC-13;3 A AC-15
tightening torque
7.08 lbf.in (0.8 N.m)
electrical connection
Cage type connector - rigid 1 2.5 mm² AWG 14 control circuit;Cage type connector - rigid 1 2.5 mm² AWG 14 power circuit;Cage type connector - rigid 2 1 mm² AWG 17 control circuit;Cage type connector - rigid 2 1 mm² AWG 17 power circuit;Cage type connector - flexible with cable end 1 2.5 mm² AWG 14 control circuit;Cage type connector - flexible with cable end 1 2.5 mm² AWG 14 power circuit;Cage type connector - flexible without cable end 1 2.5 mm² AWG 14 control circuit;Cage type connector - flexible without cable end 1 2.5 mm² AWG 14 power circuit;Cage type connector - flexible with cable end 2 0.75 mm² AWG 18 control circuit;Cage type connector - flexible with cable end 2 0.75 mm² AWG 18 power circuit;Cage type connector - flexible without cable end 2 1 mm² AWG 17 control circuit;Cage type connector - flexible without cable end 2 1 mm² AWG 17 power circuit
Marking
CE
operating position
Vertical +/- 10 degree
Height
3.94 in (100 mm)
Width
0.91 in (23 mm)
Depth
3.94 in (100 mm)
Net Weight
0.35 lb(US) (0.16 kg)
compatibility code
ATS01N1
Motor power range AC-3
0…0.5 kW 200…240 V 1 phase;0…0.5 kW 200…240 V 3 phase;0.55…1 kW 200…240 V 3 phase;1.1…2 kW 380…440 V 3 phase
motor starter type
Soft starter
electromagnetic compatibility
Conducted and radiated emissions level B CISPR 11;Conducted and radiated emissions level B IEC 60947-4-2;Damped oscillating waves level 3 IEC 61000-4-12;Electrostatic discharge level 3 IEC 61000-4-2;EMC immunity EN 50082-1;EMC immunity EN 50082-2;Harmonics IEC 1000-3-2;Harmonics IEC 1000-3-4;Immunity to conducted interference caused by radio-electrical fields level 3 IEC 61000-4-6;Immunity to electrical transients level 4 IEC 61000-4-4;Immunity to radiated radio-electrical interference level 3 IEC 61000-4-3;Micro-cuts and voltage fluctuation IEC 61000-4-11;Voltage/current impulse level 3 IEC 61000-4-5
Standards
EN/IEC 60947-4-2
Product Certifications
CSA;GOST;C-tick;UL;CCC;B44.1-96/ASME A17.5 for starter wired to the motor delta terminal
IP Degree of Protection
IP20
pollution degree
2 EN/IEC 60947-4-2
vibration resistance
1 gn 13…150 Hz)EN/IEC 60068-2-6;1.5 mm peak to peak 3…13 Hz)EN/IEC 60068-2-6
shock resistance
15 gn 11 ms EN/IEC 60068-2-27
relative humidity
5…95 % without condensation or dripping water EN/IEC 60068-2-3
ambient air temperature for operation
14…104 °F (-10…40 °C) without derating);104…122 °F (40…50 °C) with current derating of 2 % per °C)
ambient air temperature for storage
-13…158 °F (-25…70 °C) EN/IEC 60947-4-2
operating altitude
<= 3280.84 ft (1000 m) without derating;> 3280.84 ft (1000 m) with current derating of 2.2 % per additional 100 m
Category
22392-ATSU01/ATS01 LOW HP SOFT STARTERS
Discount Schedule
I11
GTIN
3389110667134
Returnability
No
Country of origin
DE
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
0.98 in (2.5 cm)
Package 1 Width
4.06 in (10.3 cm)
Package 1 Length
4.13 in (10.5 cm)
Package 1 Weight
6.17 oz (175.0 g)
Unit Type of Package 2
S02
Number of Units in Package 2
36
Package 2 Height
5.91 in (15.0 cm)
Package 2 Width
11.81 in (30.0 cm)
Package 2 Length
15.75 in (40.0 cm)
Package 2 Weight
14.31 lb(US) (6.491 kg)
Warranty
18 months
