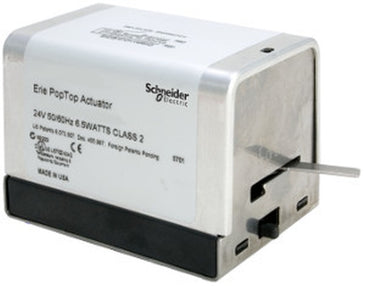

AG14B060 | Act (AG14B060): Elec, 2Pos, SR, 110-120 VAC, App, Rotary, N1, Erie PopTop | Schneider Electric

Act (AG14B060): Elec, 2Pos, SR, 110-120 VAC, App, Rotary, N1, Erie PopTop

• Actuator Type: Electric
• Control Signal: 2-Position (On/Off)
• Loss of Power Type: Spring Return
• Power Input Voltage: 110 VAC, 115 VAC, 120 VAC
• Leads and Connections: 96 in Appliance
• Mechanical Movement: Rotary
• Protection Rating: NEMA 1
• Product Line: Schneider Electric
• Product Range: Erie PopTop
• Product Series: AG
• Actuator Use: Zone Valves

Erie’s motorized hydronic valves, the PopTop™, provide convenient, reliable and easy installation for a variety of heating and cooling applications. Installation is a snap with easy, one-handed removal or engagement of the actuator to the valve body. Push the button and lift. It’s that simple.

Features

• One-handed engagement or removal of the motorized actuator to the valve body.
• Valve actuator can be easily attached after the valve body has been installed into the system.
• Mounts quickly and easily without the need of linkages or calibration.
• Available in 2-way and 3-way port configurations, 1/2” (15mm) through 1-1/4” (32mm) sweat or 1/2” (15mm) to 1” (25mm) threaded connections, 1.0 to 8.0 Cv range.
• Available factory coupled, or as individual bodies and actuators.
• Direct replacement for all existing PopTop™ applications.
• Rugged 300 PSIG rated brass forged body design for long life.
• UL listed actuator
