A9MEM3465 | iEM3465 Energy Meter - BACnet - 1 DI - 1 DO - Multi-Tariff - LVCT | Square D by Schneider Electric

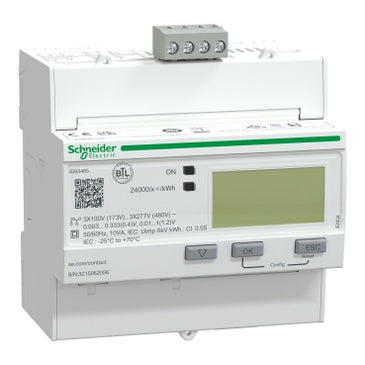

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to A9MEM3465
Overview Details for A9MEM3465
iEM3465 Energy Meter - BACnet - 1 DI - 1 DO - Multi-Tariff - LVCT
The Acti9 iEM3000 series energy meters offer an attractive range of three-phase DIN rail-mounted energy meters with an LCD display. Additional local signaling includes green LED power-on indicator, flashing yellow LED for accuracy checking, an overload alarm and communication indicators. This meter can be used in sub-billing applications and supports 4 tariff schedules. The meter provides the following accuracy classes: Active Energy: class 0.5S per IEC 62053-21, and per ANSI C12.20. The meter will measure Active and Reactive Power, Active and Reactive Energy, Voltage and Current. With four quadrant Energy measurement. Designed for 50Hz or 60Hz networks, supply voltage can range from 100 to 277VAC or 173 to 480VAC. The rated current goes through a 0.333V or 1V transducer to be measured in this meter and will support Single Phase and Neutral, Three Phase and Three Phase and Neutral configurations. Communication protocol is BACnet with screw terminal support. There is one programmable digital input and one programmable digital output that can be used as a pulsed output. Certifications include EAC, CE and UL. Product dimensions are as follows: width 3.54 in (90 mm), depth 2.72in (69 mm), height 3.42 in (87 mm).Specifications
- range
- Acti 9
- range of product
- Acti 9 iEM3000
- device short name
- iEM3465
- Product or Component Type
- Energy meter
- poles description
- 3P;1P + N;3P + N
- type of measurement
- Active and reactive energy;Active and reactive power;Current;Voltage
- metering type
- Active;reactive;apparent energy (signed;four quadrant)
- Device Application
- Sub billing;Multi-tariff;Partial meter
- accuracy class
- Class 0.5S active energy IEC 62053-22;Class 0.5S active energy ANSI C12.20
- input type
- split core current transducer 0.333 V or 1 V
- rated voltage
- 100…277 V +/- 20 %;173…480 V +/- 20 %
- Network Frequency
- 60 Hz;50 Hz
- Technology Type
- Electronic
- Display Type
- LCD display
- sampling rate
- 32 samples/cycle
- measurement current
- 1…32767000 mA
- maximum value measured
- 99999999.9 kWh;99999999 MWh
- tariff input
- Tariff 4)
- communication port protocol
- BACnet 9.6;19.2;38.4;57.6;76.8 kbauds
- communication port support
- Screw terminal block RS485
- local signalling
- Green indicator light power ON;Yellow flashing LED accuracy checking;alarm overload
- number of inputs
- 1 digital 0...5 V/11...40 V 24 V DC
- Number of Outputs
- 1 digital (static)
- output voltage
- 5...40 V DC@50 mA
- Mounting Mode
- Clip-on
- Mounting Support
- DIN rail
- connections - terminals
- Current circuit screw terminals 0.01 in² (6 mm²);Voltage circuit screw terminals 0.00 in² (2.5 mm²);Input/output circuit screw terminals 0.00 in² (1.5 mm²);Communication screw terminals 0.00 in² (2.5 mm²)
- tightening torque
- Input/output circuit 4.43 lbf.in (0.5 N.m) Philips;Voltage circuit 4.43 lbf.in (0.5 N.m) Philips;Current circuit 7.08 lbf.in (0.8 N.m) pozidriv;Communication 4.43 lbf.in (0.5 N.m) Philips
- wire stripping length
- Input/output circuit 0.24 in (6 mm);Voltage circuit 0.31 in (8 mm);Current circuit 0.31 in (8 mm);Communication 0.28 in (7 mm)
- Standards
- BS EN 61326-1;IEC 61326-1;EN 61326-1;BS EN 61010-1;EN 61010-1;IEC 61010-1;UL 61010-1;BS EN 61010-2-30;IEC 61010-2-30;EN 61010-2-30;UL 61010-2-30;ANSI C12.20
- product certifications
- CE IEC 61010-1 safety);CE EN 61557-12 power monitor);CE EN/IEC 61326-1 EMC);UKCA BS EN 61010-1 safety);UKCA BS EN 61557-12 power monitor);UKCA BS EN 61326-1 EMC);CULus UL 61010-1 safety);CULus EN 61010-1 safety);KZ;RCM
- IP degree of protection
- Front panel IP40 IEC 60529;Body IP20 IEC 60529
- IK degree of protection
- IK08
- pollution degree
- 2
- relative humidity
- 5…95 % 97 °F (36 °C)
- ambient air temperature for operation
- -13…158 °F (-25…70 °C) - IEC
- Ambient Air Temperature for Storage
- -40…185 °F (-40…85 °C)
- Operating altitude
- < 9842.52 ft (3000 m)
- Color
- White
- 9 mm pitches
- 10
- Width
- 3.54 in (90 mm)
- Height
- 3.43 in (87 mm)
- Depth
- 2.72 in (69 mm)
- Category
- 09786-SE ENTRY POWER METER
- Discount Schedule
- PL1
- GTIN
- 3606480845239
- Returnability
- Yes
- Country of origin
- CN
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.46 in (8.8 cm)
- Package 1 Width
- 3.86 in (9.8 cm)
- Package 1 Length
- 4.13 in (10.5 cm)
- Package 1 Weight
- 12.66 oz (359 g)
- Unit Type of Package 2
- S03
- Number of Units in Package 2
- 30
- Package 2 Height
- 11.81 in (30 cm)
- Package 2 Width
- 11.81 in (30 cm)
- Package 2 Length
- 15.75 in (40 cm)
- Package 2 Weight
- 25.32 lb(US) (11.483 kg)
- Unit Type of Package 3
- P06
- Number of Units in Package 3
- 240
- Package 3 Height
- 19.69 in (50 cm)
- Package 3 Width
- 31.50 in (80 cm)
- Package 3 Length
- 23.62 in (60 cm)
- Package 3 Weight
- 221.26 lb(US) (100.364 kg)
