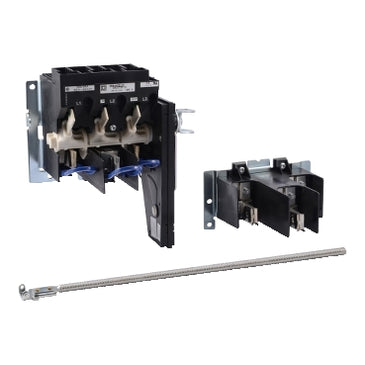

9422TEF10 | DISCONNECT SWITCH 600VAC 100AMP NEMA | Square D by Schneider Electric

Brand: Square DSKU: 9422TEF10

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9422TEF10

Jump to: Overview & Specifications Reviews

Overview Details for 9422TEF10

DISCONNECT SWITCH 600VAC 100AMP NEMA

9422TEF disconnect switches are designed for control panel installations. This disconnect switch is fully compatible with 9422A handle operators and 9423 door closing mechanisms. This 100 A disconnect switch will accept Class H, J, K or R fuses only. This 100 A disconnect switch is designed for flange mounting. The variable depth mounting range is 6.63 to 18.00 inches. Disconnect switch has horsepower ratings of 25 HP at 208 VAC, 30 HP at 240 VAC, 60 HP at 480 VAC and 75 HP at 600 VAC. Switch is also rated for 20 HP at 250 VDC max when using two poles. 9422A operating handles must be purchased separately. Disconnect switch lugs are rated for #10 to #0 AWG with copper wire and #6 to #0 with aluminum wire. Switch is UL component recognized and CSA certified. Disconnect switch is UL Component Recognized and CSA certified

Specifications

Range: 9422T
Product: Disconnect Switch
Disconnect Type: Fusible disconnect switch
Mounting Type: Flange rod variable depth
Current Rating: 100 A
Horsepower Rating: 25 hp 200 V AC;30 hp 230 V AC;60 hp 460 V AC;75 hp 575 V AC;20 hp 250 V DC
Fuse Rating: 100 A 250/600 V
Handle Type: Ordered separately
Fuse Type: J;R;K;H
Certifications: UL Recognized;CSA
Category: 21732-9422
Discount Schedule: CP1
GTIN: 785901879831
Returnability: No
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 7.00 in (17.78 cm)
Package 1 Width: 11.20 in (28.448 cm)
Package 1 Length: 16.00 in (40.64 cm)
Package 1 Weight: 6.97 lb(US) (3.162 kg)
Warranty: 18 months
