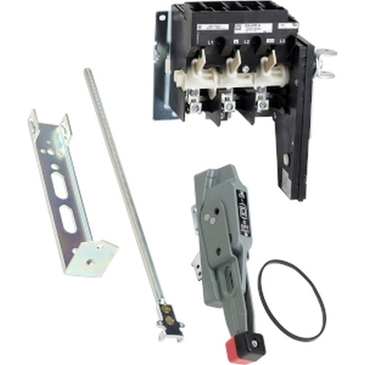

9422ATDN601 | Switch A1 Handle+Mech No Fuse 60A 600Vac | Square D by Schneider Electric

Brand: Square DSKU: 9422ATDN601

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9422ATDN601

Jump to: Overview & Specifications Reviews

Overview Details for 9422ATDN601

Switch A1 Handle+Mech No Fuse 60A 600Vac

The 9422T disconnect switches were designed for control panel installations. These switches include common switch profile 30A to 100 A, interchangeable fuse clips 30A to 60 A, and the ability to add fuse clip kits and cable mechanisms. They are compatible with 9422A handle operators and 9423 door mechanisms. This switch and operating mechanism comes with a 9422A1 handle mechanism overpacked. This disconnect switch has a 60A rating. This disconnect switch has a rating of 15 HP at 208 and 240 VAC, 30 HP at 480 VAC, 50 HP at 600 VAC poly phase and 10 HP at 250 VDC with two poles. This disconnect has no fuses. This mechanism has a variable depth of 6.63 inches to 18 inches. Switch and operating mechanism is UL Component Recognized and CSA certified Disconnect switch is UL Component Recognized and CSA certified

Specifications

Range: 9422T
Product: Disconnect Switch
Disconnect Type: Non-fusible disconnect switch
Mounting Type: Flange rod variable depth
Current Rating: 60 A
Horsepower Rating: 15 hp 200 V AC;15 hp 230 V AC;30 hp 460 V AC;50 hp 575 V AC;10 hp 250 V DC
Handle Type: 6 in handle included NEMA 1/3/3R/4 enclosures sheet steel
Certifications: CSA;UL Recognized
Category: 21732-9422
Discount Schedule: CP1
GTIN: 785901872177
Returnability: No
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 7.10 in (18.034 cm)
Package 1 Width: 11.30 in (28.702 cm)
Package 1 Length: 16.00 in (40.64 cm)
Package 1 Weight: 8.30 lb(US) (3.765 kg)
Warranty: 18 months
