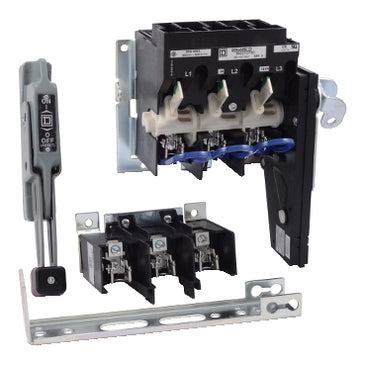

9422ATCF301 | Switch A1 Handle+Mech Fuse 30A 250Vac | Square D by Schneider Electric

Brand: Square DSKU: 9422ATCF301

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9422ATCF301

Jump to: Overview & Specifications Reviews

Overview Details for 9422ATCF301

Switch A1 Handle+Mech Fuse 30A 250Vac

9422ATCF disconnect switches are designed for control panel installations. This disconnect switch is fully compatible with 9422A handle operators and 9423 door closing mechanisms. This disconnect switch will accept Class H, J, K or R fuses only. It has a rating of 30 Amps up to 250 V. This 30 A disconnect switch is designed for flange mounting. The variable depth mounting range is 6.63 to 18.00 inches. Disconnect switch has horsepower ratings of 7.5 HP at 208 VAC, 7.5 HP at 240 VAC, 15 HP at 480 VAC and 20 HP at 600 VAC. Switch is also rated for 5 HP at 250 VDC and 15 HP at 600 VDC when using two poles. 9422A1 operating handle is overpacked with this disconnect switch. Disconnect switch lugs are rated for #14 to #2 AWG with copper wire and #14 to #2 with aluminum wire. Disconnect switch is UL Component Recognized and CSA certified

Specifications

Range: 9422T
Product: Disconnect Switch
Disconnect Type: Fusible disconnect switch
Mounting Type: Flange rod variable depth
Current Rating: 30 A
Horsepower Rating: 7.5 hp 200 V AC;7.5 hp 230 V AC;15 hp 460 V AC;20 hp 575 V AC;5 hp 250 V DC
Fuse Rating: 30 A 250 V
Handle Type: 6 in handle included NEMA 1/3/3R/4 enclosures sheet steel
Fuse Type: H;K;J;R
Certifications: UL Recognized;CSA
Category: 21732-9422
Discount Schedule: CP1
GTIN: 785901872153
Returnability: No
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 7.30 in (18.542 cm)
Package 1 Width: 11.30 in (28.702 cm)
Package 1 Length: 16.00 in (40.64 cm)
Package 1 Weight: 8.80 lb(US) (3.992 kg)
Warranty: 18 months
