9421LH6 | Operating Mechanism Handle, NEMA 1/3R/12, 6in., Black | Square D by Schneider Electric

Brand: Square DSKU: 9421LH6

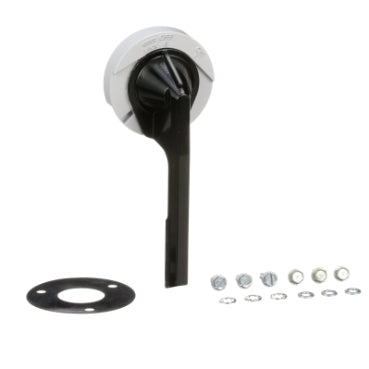

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9421LH6

Jump to: Overview & Specifications Reviews

Overview Details for 9421LH6

Operating Mechanism Handle, NEMA 1/3R/12, 6in., Black

Operating Mechanism Handle

Product Compatibility: NEMA 1/3R/12
Length: 6in.
Surface Finish: Painted Black

Type L door mounted, variable depth operating mechanisms feature heavy duty, all metal construction with trip indication. Operating mechanism can be padlocked in the Off position when the enclosure door is open. Handle assemblies can be locked Off with up to three padlocks, which also locks the door closed This handle assembly will work with the operating mechanism for a 2 or 3 pole PowerPact H, and PowerPact J, Compact NSF circuit breakers with a 125A frame size. This handle assembly will also work with the operating mechanism for a 2 or 3 pole PowerPact H, and PowerPact J circuit breakers with a 250A frame size. This handle assembly has a 6 inch handle. This handle assembly is rated for NEMA Type 1, 3R and 12. This handle assembly is UL Component Recognized and CSA certified.
