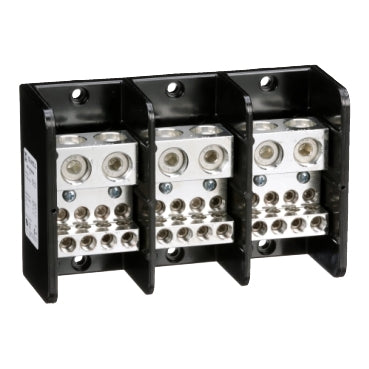

POWER DISTRIBUTION BLOCK 600V 760A

Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This three pole block has two lug openings on the line (main) side and eight lug openings on the load (branch) side. The line side lug is rated to accept one #4 to 500 kcmil copper wire. The load side lug is rated to accept one #14 to 2/0 copper wire. The lugs are made of copper. The lugs are rated for 760 amperes with copper wire. The lugs are rated to 600 volts. The housing is made of general purpose phenolic. These Linergy power distribution blocks are UL component recognized and CSA certified.

Specifications

Range
9080LB
Product
Power Distribution Block
Current Rating
760 A copper
Voltage Rating
600 V AC/DC
Mounting Type
Surface mount
number of poles
3
Terminals per Pole
2 line;8 load
Wire Size
Line 8;AWG 4...500 kcmil;copper;Load 2;AWG 14...AWG 2/0;copper
Electrical Connection
Tin plated copper lugs
SCCR
100 kA UL 508 A
Ambient air temperature for operation
-40…302 °F (-40…150 °C)
Block Material
Phenolic block
Terminal Tightening Torque
Load lug 40 lbf.in (4.52 N.m) AWG 8 copper;Load lug 35 lbf.in (3.95 N.m) AWG 14...AWG 10 copper;Line lug 375 lbf.in (42.37 N.m) AWG 4...500 kcmil copper;Load lug 120 lbf.in (13.56 N.m) AWG 6...AWG 1 copper
wire stripping length
Load 0.75 in (19.05 mm) top;Line 1.13 in (28.70 mm);Load 1.38 in (35.05 mm) bottom
Height
5.5 in (139.70 mm)
Width
8.54 in (216.92 mm)
Depth
3.13 in (79.50 mm)
End Barrier
9080LB53
Certifications
CSA file 70361 class 6228 01;UL recognized E60616 CCN XCFR2;CE
Category
21711-9080 LB
Discount Schedule
CP1
GTIN
785901097693
Returnability
Yes
Country of origin
US
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
3.80 in (9.652 cm)
Package 1 Width
5.80 in (14.732 cm)
Package 1 Length
8.80 in (22.352 cm)
Package 1 Weight
5.36 lb(US) (2.431 kg)
Unit Type of Package 2
CAR
Number of Units in Package 2
6
Package 2 Height
12.50 in (31.75 cm)
Package 2 Width
9.60 in (24.384 cm)
Package 2 Length
13.00 in (33.02 cm)
Package 2 Weight
32.92 lb(US) (14.932 kg)
Warranty
18 months
