9080LBA262104 | POWER DISTRIBUTION BLOCK 600V 175A | Square D by Schneider Electric
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 9080LBA262104
Overview
Details for 9080LBA262104

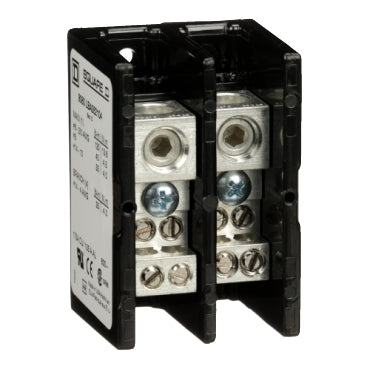

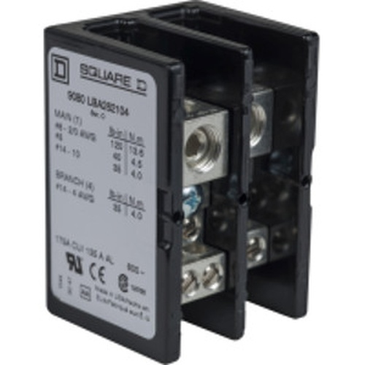

POWER DISTRIBUTION BLOCK 600V 175A
Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This two pole block has one lug opening on the line (main) side and four lug openings on the load (branch) side. The line side lug is rated to accept one #14 to 2/0 copper or aluminum wires. Each load side lug is rated to accept one #14 to #4 copper or aluminum wire. The lugs are made of aluminum. The lugs are rated for 175 amperes with copper wire and 135 amperes with aluminum wire. The lugs are rated to 600 volts. The housing is made of high impact thermoplastic. These Linergy power distribution blocks are UL component recognized and CSA certified.Specifications
- Range
- 9080LB
- Product
- Power Distribution Block
- Current Rating
- 175 A copper;135 A aluminium
- Short Circuit Current Rating
- 65 kA
- Voltage Rating
- 600 V AC/DC
- Mounting Type
- Surface mount
- number of poles
- 2
- Terminals per Pole
- 1 line;4 load
- Wire Size
- Line 4;AWG 14...AWG 2/0;copper or aluminium;Load 2;AWG 14...AWG 4;copper or aluminium
- Electrical Connection
- Tin plated aluminium lugs
- SCCR
- 100 kA UL 508 A
- Ambient air temperature for operation
- -40…302 °F (-40…150 °C)
- Block Material
- Phenolic block
- Terminal Tightening Torque
- Line lug 40 lbf.in (4.52 N.m) AWG 8 copper or aluminium;Line lug 35 lbf.in (3.95 N.m) AWG 12...AWG 10 copper or aluminium;Line lug 35 lbf.in (3.95 N.m) AWG 14 copper;Line lug 120 lbf.in (13.56 N.m) AWG 6...AWG 2/0 copper or aluminium;Load lug 120 lbf.in (13.56 N.m) AWG 14...AWG 4 copper
- wire stripping length
- Line 0.5 in (12.70 mm);Load 0.44 in (11.18 mm) top;Load 0.75 in (19.05 mm) bottom
- Height
- 2.88 in (73.15 mm)
- Width
- 1.94 in (49.28 mm)
- Depth
- 1.78 in (45.21 mm)
- End Barrier
- 9080LB22
- Certifications
- CSA file 70361 class 6228 01;CE;UL recognized E60616 CCN XCFR2
- Category
- 21711-9080 LB
- Discount Schedule
- CP1
- GTIN
- 785901156970
- Returnability
- Yes
- Country of origin
- US
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 1.80 in (4.572 cm)
- Package 1 Width
- 1.80 in (4.572 cm)
- Package 1 Length
- 2.80 in (7.112 cm)
- Package 1 Weight
- 5.60 oz (158.757 g)
- Unit Type of Package 2
- CAR
- Number of Units in Package 2
- 24
- Package 2 Height
- 7.50 in (19.05 cm)
- Package 2 Width
- 6.50 in (16.51 cm)
- Package 2 Length
- 12.00 in (30.48 cm)
- Package 2 Weight
- 9.38 lb(US) (4.255 kg)
- Warranty
- 18 months
