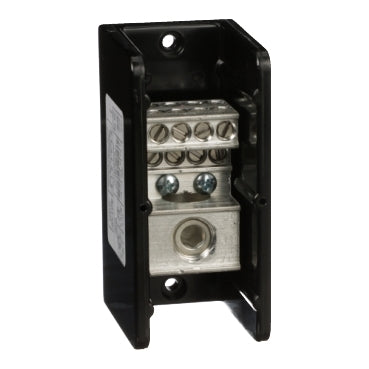

9080LBA164108 | POWER DISTRIBUTION BLOCK 600V 335A | Square D by Schneider Electric

Brand: Square DSKU: 9080LBA164108

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9080LBA164108

Jump to: Overview & Specifications Reviews

Overview Details for 9080LBA164108

POWER DISTRIBUTION BLOCK 600V 335A

Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This one pole block has one lug opening on the line (main) side and eight lug openings on the load (branch) side. The line side lug is rated to accept one #4 to 600 kcmil copper or aluminum wire. The load side lug is rated to accept one #14 to #2 copper or aluminum wire. The lugs are made of aluminum. The lugs are rated for 335 amperes with copper wire and 270 amperes with aluminum wire. The lugs are rated to 600 volts. The housing is made of general purpose phenolic. These Linergy power distribution blocks are UL component recognized and CSA certified.

Specifications

Range: 9080LB
Product: Power Distribution Block
Current Rating: 335 A copper;270 A aluminium
Short Circuit Current Rating: 65 kA
Voltage Rating: 600 V AC/DC
Mounting Type: Surface mount
number of poles: 1
Terminals per Pole: 1 line;8 load
Wire Size: Line 1;AWG 6...400 kcmil;copper or aluminium;Load 8;AWG 14...AWG 2;copper or aluminium
Electrical Connection: Tin plated aluminium lugs
SCCR: 100 kA UL 508 A
Ambient air temperature for operation: -40…302 °F (-40…150 °C)
Block Material: Phenolic block
Terminal Tightening Torque: Load lug 45 lbf.in (5.08 N.m) AWG 6...AWG 4 copper or aluminium;Load lug 40 lbf.in (4.52 N.m) AWG 8 copper or aluminium;Load lug 50 lbf.in (5.65 N.m) AWG 2 copper or aluminium;Line lug 275 lbf.in (31.07 N.m) AWG 6...400 kcmil copper or aluminium;Load lug 35 lbf.in (3.95 N.m) AWG 14...AWG 10 copper or aluminium
wire stripping length: Line 1.06 in (26.92 mm);Load 0.56 in (14.22 mm) top;Load 1 in (25.40 mm) bottom
Height: 4.75 in (120.65 mm)
Width: 2.28 in (57.91 mm)
Depth: 2.91 in (73.91 mm)
End Barrier: 9080LB41
Certifications: UL recognized E60616 CCN XCFR2;CE;CSA file 70361 class 6228 01
Category: 21711-9080 LB
Discount Schedule: CP1
GTIN: 785901097358
Returnability: Yes
Country of origin: US
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.30 in (5.842 cm)
Package 1 Width: 2.90 in (7.366 cm)
Package 1 Length: 4.70 in (11.938 cm)
Package 1 Weight: 14.40 oz (408.233 g)
Unit Type of Package 2: CAR
Number of Units in Package 2: 2
Package 2 Height: 3.50 in (8.89 cm)
Package 2 Width: 5.20 in (13.208 cm)
Package 2 Length: 6.30 in (16.002 cm)
Package 2 Weight: 31.04 oz (879.968 g)
Warranty: 18 months
