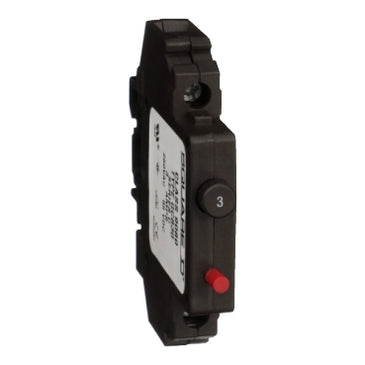

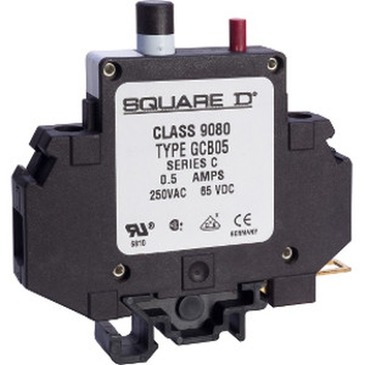

9080GCB30 | Thermal-magnetic Circuit Protector, 3A, 1-Pole, 250V AC 65V DC, Box Lugs | Square D by Schneider Electric

Brand: Square DSKU: 9080GCB30

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9080GCB30

Jump to: Overview & Specifications Reviews

Overview Details for 9080GCB30

Thermal-magnetic Circuit Protector, 3A, 1-Pole, 250V AC 65V DC, Box Lugs

Thermal-magnetic Circuit Protector

Product or Component Type: Circuit Protector
Electrical Connection: Box lugs
Contact Operation: Trip free
Line Rated Current: 3A
Poles Description: 1-Pole
System Voltage: 250V AC, 65V DC
Dimensions: 3.45 H x 3.15 W x 0.5 in D

Linergy thermal magnetic circuit protectors are a trip free device. These circuit protectors cab be mounted on 35 mm DIN track or Square D terminal block track. The family has circuit protectors with current ratings from 0.1 to 15 A. This circuit protector has a current rating of 3.0 amperes. The thermal feature trips when there is an overload of ten times rated current or less. The magnetic mechanism trips instantaneously when there is a short circuit. Maximum rating of 200 A, but not exceeding 10,000% (100 times) rated current.

Specifications

Range of Product: 9080GCB
Product or Component Type: Circuit Protector
Trip Unit Type: Thermal-magnetic
Electrical Connection: Box lugs
Protection Type: Overcurrent
contact operation: Trip-free
Device Application: Industrial Application
Line Rated Current: 3 A
Number of Poles: 1P
Votlage Rating: 250 V AC;65 V DC
Wire Size: AWG 16...AWG 10 copper
wire stripping length: 0.5 in (12.70 mm)
Terminal Tightening Torque: Control circuit 7 lbf.in (0.79 N.m) cage type connector
Terminal Rating: Factory wiring only
Operating Temperature: -22…140 °F (-30…60 °C)
Calibration Temperature: 70 °F (21 °C)
Mounting Support: 9080GH track;35 mm DIN rail
Height: 3.45 in (87.63 mm)
Width: 3.15 in (80.01 mm)
Depth: 0.5 in (12.70 mm)
Product Certifications: CE;UL recognized E233026 CCN QVNU2;CSA file 025490 class 3211 07
Standards: UL 1077;CSA C22.2 No 235;DIN 57470
Category: 21703-9080 GCB
Discount Schedule: CP5
GTIN: 785901481034
Returnability: Yes
Country of origin: DE
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.00 in (2.54 cm)
Package 1 Width: 3.20 in (8.128 cm)
Package 1 Length: 3.70 in (9.398 cm)
Package 1 Weight: 2.56 oz (72.575 g)
Unit Type of Package 2: PAL
Number of Units in Package 2: 2000
Package 2 Height: 40.00 in (101.6 cm)
Package 2 Width: 40.00 in (101.6 cm)
Package 2 Length: 48.00 in (121.92 cm)
Package 2 Weight: 345.00 lb(US) (156.489 kg)
Warranty: 18 months
