9080FB3621J | TERMINAL BLOCK FUSEHOLDER 600V 60A | Square D by Schneider Electric

Brand: Square DSKU: 9080FB3621J

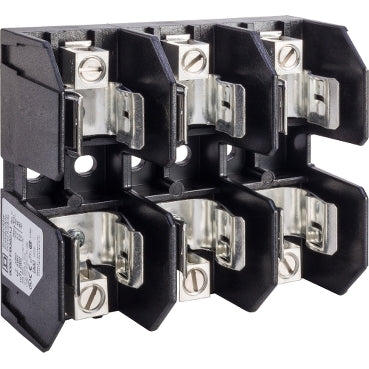

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9080FB3621J

Jump to: Overview & Specifications Reviews

Overview Details for 9080FB3621J

TERMINAL BLOCK FUSEHOLDER 600V 60A

Linergy NEMA fuse holders are panel mount fuse holders that will accept class H, R, CC, M, and J fuses up to 200 Amps. This three pole fuse holder will accept class J fuses. The rating of the fuse can be up to 60 Amps with a 600 V maximum rating. The box lug connectors will accept 14 to 10 AWG (2.5 to 4 mm2) solid or stranded copper wire. Fuse clips are made of a copper alloy that is tin plated. The fuse clips are reinforced for a better connection. The fuse holder base is made of general purpose phenolic. AIC Rating in accordance with UL512 is 200,000 Amp. This fuse holder is UL listed and CSA certified. This fuse holder is UL listed and CSA certified. Type S starters are UL listed and CSA certified for global applications.

Specifications

Range: 9080FB
Product: Fuse holder
Current Rating: 60 A
[Ue] rated operational voltage: <= 600 V AC/DC
fuse type: J
fuse size: 1.0625 x 2.375 in
number of poles: 3
Electrical Connection: Box lugs
Wire Gauge: AWG 14...AWG 2 copper or aluminium
SCCR: 200 kA UL 512
Product Certifications: CSA file 70360 class 6225 01;UL listed file E40747 CCN IZLT;CE
Operating Temperature: -40…257 °F (-40…125 °C)
Mounting Type: Surface mount
Block Material: Thermoplastic block
wire stripping length: 0.5625 in (14.29 mm)
Terminal Tightening Torque: lugs 50 lbf.in (5.65 N.m) AWG 3...AWG 2 copper or aluminium;lugs 45 lbf.in (5.08 N.m) AWG 6...AWG 4 copper or aluminium;lugs 40 lbf.in (4.52 N.m) AWG 8 copper or aluminium;lugs 35 lbf.in (3.95 N.m) AWG 12...AWG10 copper or aluminium;lugs 35 lbf.in (3.95 N.m) AWG 14 copper
Height: 4.07 in (103.38 mm)
Width: 4.72 in (119.89 mm)
Depth: 2.09 in (53.09 mm)
Category: 21701-9080 FB
Discount Schedule: CP1
GTIN: 785901139669
Returnability: Yes
Country of origin: US
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.20 in (5.588 cm)
Package 1 Width: 4.10 in (10.414 cm)
Package 1 Length: 4.80 in (12.192 cm)
Package 1 Weight: 12.48 oz (353.802 g)
Unit Type of Package 2: CAR
Number of Units in Package 2: 20
Package 2 Height: 5.00 in (12.7 cm)
Package 2 Width: 12.00 in (30.48 cm)
Package 2 Length: 19.70 in (50.038 cm)
Package 2 Weight: 15.87 lb(US) (7.199 kg)
Warranty: 18 months
