9065SF420 | MOTOR LOGIC SOLID STATE OVERLOAD RELAY SEPARATE MOUNT SIZE 4 45-135A, 600VAC | Square D by Schneider Electric

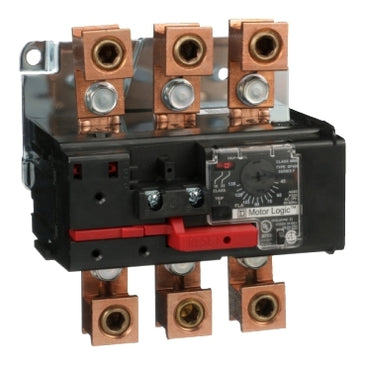

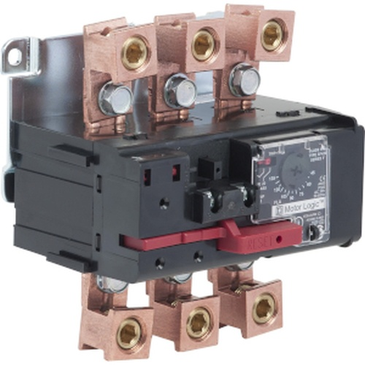

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 9065SF420
Overview
Details for 9065SF420
MOTOR LOGIC SOLID STATE OVERLOAD RELAY SEPARATE MOUNT SIZE 4 45-135A, 600VAC
Motor Logic overload relays can be stand alone devices or can be used on Type S full voltage non-reversing and reversing starters and combination starters. Motor Logic relays are ambient insensitive and self powered. Designed to protect 50/60 Hz, three phase AC motors from overloads, phase unbalance and phase loss conditions. This overload relay is immune to harmonics in the line. Switch selectable trip class. The trip free operation will help the motor from overheating. The visible trip indicator and trip test function make trouble shooting much quicker. Electrical remote reset is available. Maximum voltage rating of 600 V. Separate mount overload relays are UL listed and CSA certified. Electrical remote reset is available. This overload relay is 5.92 inches tall, 5.33 inches wide and 4.53 inches deep. Relay weighs 4.53 lbs. Motor Logic SSOLR are UL listed and CSA certified.Specifications
- Range of Product
- Motor Logic
- thermal overload type
- Solid state
- NEMA size
- 4
- Phase
- 3 phase
- Mounting Support
- Panel
- [Ue] rated operational voltage
- 600 V AC
- Height
- 5.92 in (150.4 mm)
- Width
- 5.33 in (135.4 mm)
- Depth
- 4.53 in (115.1 mm)
- Category
- 21662-9065 SOLID STATE OVERLOAD RELAYS
- Discount Schedule
- CP1
- GTIN
- 785901751960
- Returnability
- Yes
- Country of origin
- MX
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 5.71 in (14.5 cm)
- Package 1 Width
- 7.01 in (17.8 cm)
- Package 1 Length
- 7.09 in (18.0 cm)
- Package 1 Weight
- 3.31 lb(US) (1.5 kg)
- Warranty
- 18 months
