9065SF120 | Solid State Overload Relay | Square D by Schneider Electric

Square D | 9065SF120

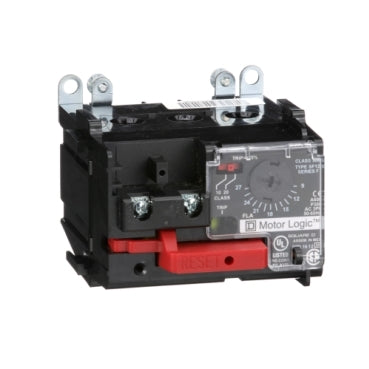

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 9065SF120

Documents and manuals

Square D 9065SF120 Documents

Overview

Details for 9065SF120

Solid State Overload Relay

Motor Logic Solid-State Overload Relay Feature Unit:
  • Trip Class 10/20
  • for Type S Starters
Motor Logic overload relays can be stand alone devices or can be used on Type S full voltage non-reversing and reversing starters and combination starters. Motor Logic relays are ambient insensitive and self powered. Designed to protect 50/60 Hz, three phase AC motors from overloads, phase unbalance and phase loss conditions. This overload relay is immune to harmonics in the line. Switch selectable trip class. The trip free operation will help the motor from overheating. The visible trip indicator and trip test function make trouble shooting much quicker. Electrical remote reset is available. Maximum voltage rating of 600 V. Separate mount overload relays are UL listed and CSA certified. Electrical remote reset is available. This overload relay is 2.69 inches tall, 3.26 inches wide and 3.90 inches deep. Relay weighs 1.21 lbs. Motor Logic SSOLR are UL listed and CSA certified.

Specifications

Range of Product
Motor Logic
thermal overload type
Solid state
NEMA size
1
Phase
3 phase
Mounting Support
Mounting plate
[Ue] rated operational voltage
600 V AC
Height
2.69 in (68.3 mm)
Width
3.26 in (82.8 mm)
Depth
3.90 in (99.1 mm)
Net Weight
1.21 lb(US) (0.55 kg)
Category
21662-9065 SOLID STATE OVERLOAD RELAYS
Discount Schedule
CP1
GTIN
785901749936
Returnability
Yes
Country of origin
MX
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
5.51 in (14.0 cm)
Package 1 Width
5.51 in (14.0 cm)
Package 1 Length
6.18 in (15.7 cm)
Package 1 Weight
16.48 oz (467.2 g)
Warranty
18 months
