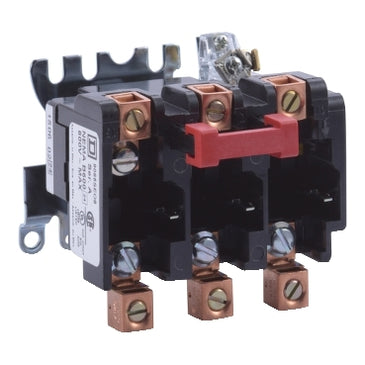

MELTING ALLOY OVERLOAD RELAY 600VAC 45A
Overload relays are intended to protect motors, controllers, and branch-circuit conductors against excessive heating due to prolonged motor over currents up to and including locked rotor currents. Protection of the motor and the other branch circuit components from higher currents, due to short circuits or grounds, is a function of the branch circuit fuses, circuit breakers, or motor short circuit protectors. Thermal overload relays provide motor overcurrent protection. The exclusive one piece melting alloy thermal unit is used in these relays to provide protection against overheating of the motor winding insulation due excessive over current. The melting alloy thermal unit to be used is determined by the full load current of the motor to be controlled, number of phases and the enclosure size. This overload relay is for NEMA Size 2 three phase starters. Three phase overload relays require 3 thermal units. When 3 thermal units are properly installed the relay can be reset. Size 2 overload relays will accept thermal units up to 45 amperes. Overload relay has a trip free reset mechanism. Relay has a maximum voltage rating of 600 VAC. This overload relay can be mounted to Size to contactors or can be separately mounted. The output contact is replaceable. This overload relay is UL listed and CSA certified for global applications.Specifications
- Range of Product
- S
- product destination
- Starter
- thermal overload type
- Melting alloy
- NEMA size
- 2
- Phase
- 3 phase
- number of thermal units required
- 3
- Mounting Support
- Panel
- Product or Component Type
- Overload relay
- [Ue] rated operational voltage
- 600 V AC
- Height
- 3.31 in (84.1 mm)
- Width
- 3.50 in (88.9 mm)
- Depth
- 3.97 in (100.8 mm)
- Category
- 21661-9065 A;C;F;G;S(NOT SS)
- Discount Schedule
- CP1
- GTIN
- 785901893707
- Returnability
- No
- Country of origin
- MX
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 4.70 in (11.938 cm)
- Package 1 Width
- 5.20 in (13.208 cm)
- Package 1 Length
- 5.30 in (13.462 cm)
- Package 1 Weight
- 17.60 oz (498.952 g)
- Warranty
- 18 months
