9001SKR1GH5 | PUSHBUTTON 600VAC 10AMP 30MM SK +OPTIONS | Square D by Schneider Electric

Brand: Square DSKU: 9001SKR1GH5

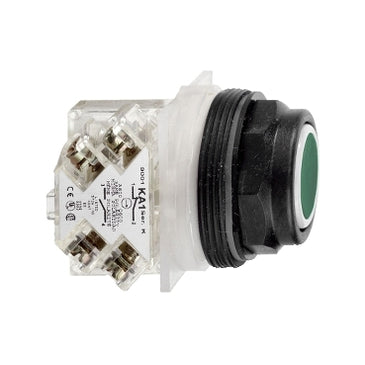

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9001SKR1GH5

Jump to: Overview & Specifications Reviews

Overview Details for 9001SKR1GH5

PUSHBUTTON 600VAC 10AMP 30MM SK +OPTIONS

This Harmony 9001SK, modular flush green push button with full guard has 2 positions, operates with spring return mechanism. It has a double insulated plastic bezel and has 1 x NO contact. This flush push button with full guard provides an ergonomic interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.

Specifications

Range of Product: Harmony 9001SK
Product or Component Type: Push-button
device short name: 9001SK
type of operator: spring return
operator profile: Green flush;unmarked
operator additional information: Plastic guard
bezel material: Plastic
mounting diameter: 1.18 in (30 mm)
shape of signaling unit head: Octagonal
contacts type and composition: 1 NO
contact operation: Standard
connections - terminals: Screw clamp terminals 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1
tightening torque: 7.08 lbf.in (0.8 N.m) EN/IEC 60947-1
shape of screw head: Cross slotted
mechanical durability: 5000000 cycles
operating position: Any position
[Ie] rated operational current: 3 A 240 V;AC-15;A600-Q600;0.55 A 125 V;DC-13;A600-Q600
[Ui] rated insulation voltage: 250 V 3)EN/IEC 60947-1
[Uimp] rated impulse withstand voltage: 2.5 kV EN/IEC 60947-1
contacts material: Silver alloy contacts
positive opening: Without
short-circuit protection: 10 A cartridge fuse EN/IEC 60947-5-1
[Ith] conventional free air thermal current: 10 A
[Icm] rated short-circuit making capacity: 12 kA 600 V AC-15;7200 VA;15 kA 480 V AC-15;7200 VA;30 kA 240 V AC-15;7200 VA;60 kA 120 V AC-15;7200 VA;0.1 kA 600 V DC-13;0.27 kA 250 V DC-13;0.55 kA 125 V DC-13
rated breaking capacity: 3 kA 240 V AC-15;720 VA;6 kA 120 V AC-15;720 VA;1.2 kA 600 V AC-15;720 VA;1.5 kA 480 V AC-15;720 VA;0.1 kA 600 V DC-13;0.27 kA 250 V DC-13;0.55 kA 125 V DC-13
Net Weight: 0.19 lb(US) (0.086 kg)
device presentation: Complete product
cap/operator or lens colour: Green
operator profile: Flush
type of operator: Spring return
size: 30 mm
Standards: EN/IEC 60947-5-1;UL 508;JIS C 4520;EN/IEC 60947-5-4;EN/IEC 60947-1;JIS C 852;CSA C22.2 No 14
Product Certifications: NEMA;UL 508
protective treatment: TC
Ambient Air Temperature for Storage: -40…158 °F (-40…70 °C)
Ambient air temperature for operation: -13…158 °F (-25…70 °C)
vibration resistance: 7 gn 2…500 Hz)IEC 60068-2-6
shock resistance: 50 gn IEC 60068-2-27
electrical shock protection class: Class II IEC 61140
IP degree of protection: IP66 IEC 60529
NEMA degree of protection: NEMA 1;NEMA 12;NEMA 13;NEMA 2;NEMA 3;NEMA 3R;NEMA 4;NEMA 4X
Category: 21429-9001 SK;SKY
Discount Schedule: CS1
GTIN: 3389118037021
Returnability: Yes
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.20 in (5.588 cm)
Package 1 Width: 1.90 in (4.826 cm)
Package 1 Length: 3.70 in (9.398 cm)
Package 1 Weight: 2.40 oz (68.039 g)
Warranty: 18 months
