9001KR3RH13 | Harmony 9001K Push Button, 10A, 600VAC, 30mm | Square D by Schneider Electric

Brand: Square DSKU: 9001KR3RH13

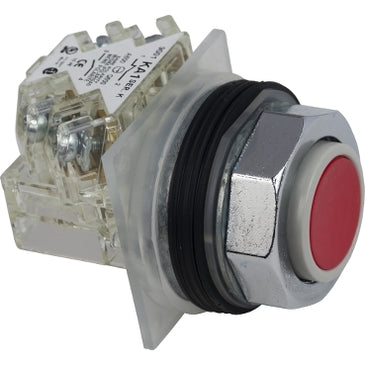

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9001KR3RH13

Jump to: Overview & Specifications Reviews

Overview Details for 9001KR3RH13

Harmony 9001K Push Button, 10A, 600VAC, 30mm

Harmony 9001K Push Button

Rated Operational Current: 10A
600VAC
Mounting Diameter: 30mm
Connections - Terminals: Screw Clamp Terminals
Operator Profile: Red Projecting

This Harmony 9001K, modular projecting red push button has 2 positions, operates with spring return mechanism. It has a chromium-plated metal bezel, has 1 x NO + 1 x NC contact and uses screw-clamp terminals. This projecting push button provides an ergonomic interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.

Specifications

Range of Product: Harmony 9001K
Product or Component Type: Push-button
device short name: K
type of operator: spring return
operator profile: Red projecting
operator additional information: Without guard
bezel material: Metal
mounting diameter: 1.18 in (30 mm)
light source: without
light source: Without
light block supply: Without supply
contacts type and composition: 1 C/O
connections - terminals: Screw clamp terminals
operating position: Any position
[Ie] rated operational current: 10 A;AC-15;10 A;DC-13
contact operation: Standard
device presentation: Complete product
Product Certifications: UL listed file E42259 CCN NKCR;NEMA;CSA LR 25490 class 3211 03;CE
NEMA degree of protection: NEMA 1/2/3/3R/4/6/12/13
Category: 21426-9001 K (NOT KA;KM;KX)
Discount Schedule: CS1
GTIN: 3389118040472
Returnability: Yes
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.20 in (5.588 cm)
Package 1 Width: 3.70 in (9.398 cm)
Package 1 Length: 1.80 in (4.572 cm)
Package 1 Weight: 4.48 oz (127.006 g)
Warranty: 18 months
