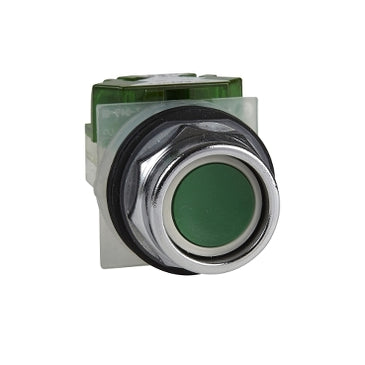

PUSH BUTTON 600VAC 10A 30MM T-K

This Harmony 9001K, modular recessed green push button with extended guard has 2 positions, operates with spring return mechanism. It has a chromium-plated metal bezel, has 1 x NO contact and uses screw-clamp terminals. This recessed push button with extended guard provides an ergonomic interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.

Specifications

Range of Product: Harmony 9001K
Product or Component Type: Push-button
device short name: 9001K
type of operator: spring return
operator profile: Green recessed;unmarked
operator additional information: Metal guard
bezel material: Metal
mounting diameter: 1.18 in (30 mm)
shape of signaling unit head: Octagonal
contacts type and composition: 1 NO
connections - terminals: Screw clamp terminals 1 x 0.22...2 x 1.5 mm² IEC 60947-1
tightening torque: 7.08 lbf.in (0.8 N.m) IEC 60947-1
shape of screw head: Cross slotted
mechanical durability: 5000000 cycles
operating position: Any position
[Ie] rated operational current: 3 A 240 V;AC-15;A600-Q600 NEMA;0.55 A 125 V;DC-13;A600-Q600 NEMA
[Ui] rated insulation voltage: 250 V 3)IEC 60947-1
[Uimp] rated impulse withstand voltage: 2.5 kV IEC 60947-1
contacts material: Silver alloy contacts
contact operation: Standard
positive opening: Without
short-circuit protection: 10 A cartridge fuse IEC 60947-5-1
[Ith] conventional free air thermal current: 10 A
[Icm] rated short-circuit making capacity: 12 kA 600 V AC-15;7200 VA;15 kA 480 V AC-15;7200 VA;30 kA 240 V AC-15;7200 VA;60 kA 120 V AC-15;7200 VA;0.1 kA 600 V DC-13;0.27 kA 250 V DC-13;0.55 kA 125 V DC-13
rated breaking capacity: 3 kA 240 V AC-15;720 VA;6 kA 120 V AC-15;720 VA;1.2 kA 600 V AC-15;720 VA;1.5 kA 480 V AC-15;720 VA;0.1 kA 600 V DC-13;0.27 kA 250 V DC-13;0.55 kA 125 V DC-13
terminals description ISO n°1: (13-14)NO
CAD overall width: 1.89 in (48 mm)
CAD overall height: 1.77 in (45 mm)
CAD overall depth: 2.20 in (56 mm)
Net Weight: 0.30 lb(US) (0.136 kg)
device presentation: Complete product
Standards: EN/IEC 60947-1;UL 508;EN/IEC 60947-5-1;EN/IEC 60947-5-4;JIS C 852;JIS C 4520;CSA C22.2 No 14
Product Certifications: NEMA;UL 508
protective treatment: TC
Ambient Air Temperature for Storage: -40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation: -13…158 °F (-25…70 °C)
vibration resistance: 7 gn 2…500 Hz)IEC 60068-2-6
shock resistance: 50 gn IEC 60068-2-27
electrical shock protection class: Class II IEC 61140
IP degree of protection: IP66 IEC 60529
NEMA degree of protection: NEMA 1;NEMA 12;NEMA 13;NEMA 2;NEMA 3;NEMA 3R;NEMA 4
Category: 21426-9001 K (NOT KA;KM;KX)
Discount Schedule: CS1
GTIN: 3389110911015
Returnability: Yes
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.90 in (4.826 cm)
Package 1 Width: 2.20 in (5.588 cm)
Package 1 Length: 3.70 in (9.398 cm)
Package 1 Weight: 4.64 oz (131.542 g)
Warranty: 18 months
