9001KR1UH5 | PUSH BUTTON 600VAC 10A 30MM T-K | Square D by Schneider Electric

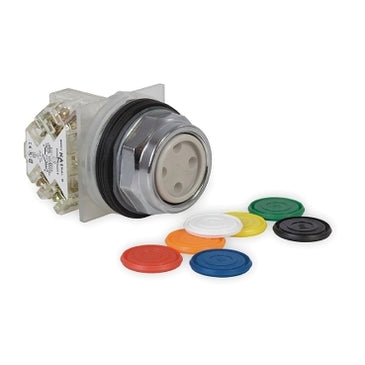

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 9001KR1UH5
Overview
Details for 9001KR1UH5
PUSH BUTTON 600VAC 10A 30MM T-K
This Schneider Electric Harmony 9001K modular flush push-button with full guard and set of 7 color caps has 2 positions, operates with spring return mechanism. It has 1 x NO contact and fits in a 30mm hole. It is supplied with contact block and uses screw-clamp terminals. It has a chromium-plated metal bezel. This flush push-button with full guard and set of 7 color caps provides an ergonomic interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Metal bezel. Ideal for severe environments, especially applications requiring high impact and vibration resistance. Simple modular design facilitates post installation servicing, modification and adaption of machines by non-specialists. Designed to fit in a standard 30mm cutout, ensuring compatibility when installing in pre-existing machinery. Simple spring return mechanism is rugged and durable, high lifetime, less maintenance and replacement. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents. High performance, International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 12 and 13).Specifications
- Range of Product
- Harmony 9001K
- Product or Component Type
- Push-button
- device short name
- 9001K
- type of operator
- spring return
- operator profile
- 7 colours choice flush;unmarked
- operator additional information
- Metal guard
- bezel material
- Metal
- mounting diameter
- 1.18 in (30 mm)
- shape of signaling unit head
- Octagonal
- contacts type and composition
- 1 NO
- connections - terminals
- Screw clamp terminals 1 x 0.22...2 x 1.5 mm² IEC 60947-1
- tightening torque
- 7.08 lbf.in (0.8 N.m) IEC 60947-1
- shape of screw head
- Cross slotted
- mechanical durability
- 5000000 cycles
- operating position
- Any position
- [Ie] rated operational current
- 3 A 240 V;AC-15;A600-Q600 NEMA;0.55 A 125 V;DC-13;A600-Q600 NEMA
- [Ui] rated insulation voltage
- 250 V 3)IEC 60947-1
- [Uimp] rated impulse withstand voltage
- 2.5 kV IEC 60947-1
- contacts material
- Silver alloy contacts
- contact operation
- Standard
- positive opening
- Without
- short-circuit protection
- 10 A cartridge fuse IEC 60947-5-1
- [Ith] conventional free air thermal current
- 10 A
- [Icm] rated short-circuit making capacity
- 12 kA 600 V AC-15;7200 VA;15 kA 480 V AC-15;7200 VA;30 kA 240 V AC-15;7200 VA;60 kA 120 V AC-15;7200 VA;0.1 kA 600 V DC-13;0.27 kA 250 V DC-13;0.55 kA 125 V DC-13
- rated breaking capacity
- 3 kA 240 V AC-15;720 VA;6 kA 120 V AC-15;720 VA;1.2 kA 600 V AC-15;720 VA;1.5 kA 480 V AC-15;720 VA;0.1 kA 600 V DC-13;0.27 kA 250 V DC-13;0.55 kA 125 V DC-13
- Net Weight
- 0.27 lb(US) (0.121 kg)
- device presentation
- Complete product
- cap/operator or lens colour
- 7 colours choice
- operator profile
- Flush
- type of operator
- Spring return
- size
- 30 mm
- Standards
- UL 508;JIS C 4520;CSA C22.2 No 14;EN/IEC 60947-5-1;EN/IEC 60947-5-4;JIS C 852;EN/IEC 60947-1
- Product Certifications
- NEMA;UL 508
- protective treatment
- TC
- Ambient Air Temperature for Storage
- -40…158 °F (-40…70 °C)
- Ambient air temperature for operation
- -13…158 °F (-25…70 °C)
- vibration resistance
- 7 gn 2…500 Hz)IEC 60068-2-6
- shock resistance
- 50 gn IEC 60068-2-27
- electrical shock protection class
- Class II IEC 61140
- IP degree of protection
- IP66 IEC 60529
- NEMA degree of protection
- NEMA 1;NEMA 12;NEMA 13;NEMA 2;NEMA 3;NEMA 3R;NEMA 4
- Category
- 21426-9001 K (NOT KA;KM;KX)
- Discount Schedule
- CS1
- GTIN
- 3389118040670
- Returnability
- Yes
- Country of origin
- MX
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 2.28 in (5.8 cm)
- Package 1 Width
- 2.13 in (5.4 cm)
- Package 1 Length
- 3.74 in (9.5 cm)
- Package 1 Weight
- 4.48 oz (127.0 g)
- Unit Type of Package 2
- S01
- Number of Units in Package 2
- 24
- Package 2 Height
- 5.91 in (15.0 cm)
- Package 2 Width
- 5.91 in (15.0 cm)
- Package 2 Length
- 15.75 in (40.0 cm)
- Package 2 Weight
- 7.13 lb(US) (3.236 kg)
- Warranty
- 18 months
