9001BW95Y | SQUARE D 9001 PENDANT STATION 600VAC 5A T-BW | Square D by Schneider Electric

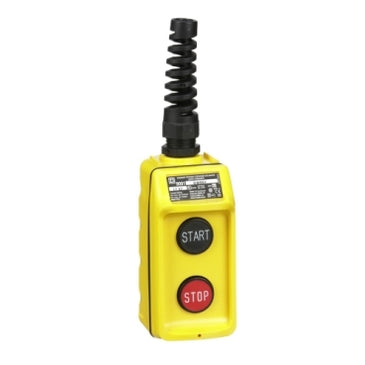

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 9001BW95Y
Overview Details for 9001BW95Y
SQUARE D 9001 PENDANT STATION 600VAC 5A T-BW
9001BW pendant stations have two push buttons that are fully assembled and are used for standard hoist applications. They can be used for single speed or two speed applications. These pendant stations are easy to hold in one hand with a contoured grip. They can have momentary and maintained contacts. The 9001BW pendant station enclosures can be yellow, black or red. The enclosures are made of high impact thermoplastic and have a self extinguishing flammability rating of UL94V. 9001BW pendants are often used for simple hoisting applications, for overhead cranes, for building cranes, for lifts, and jogging applications on conveyor systems. These 9001BW pendant stations are watertight, dusttight, oiltight, and corrosion resistent and have NEMA 1, 3, 3R, 4, 4X, & 13 ratings.Specifications
- Category
- 21422-9001 BW70 - BW80
- Discount Schedule
- CS1
- GTIN
- 785901663690
- Returnability
- Yes
- Country of origin
- MX
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 20.32 in (51.613 cm)
- Package 1 Width
- 8.00 in (20.32 cm)
- Package 1 Length
- 51.61 in (131.097 cm)
- Package 1 Weight
- 11.52 oz (326.587 g)
- Unit Type of Package 2
- CAR
- Number of Units in Package 2
- 15
- Package 2 Height
- 13.00 in (33.02 cm)
- Package 2 Width
- 13.00 in (33.02 cm)
- Package 2 Length
- 16.50 in (41.91 cm)
- Package 2 Weight
- 10.50 lb(US) (4.763 kg)
- Warranty
- 18 months
