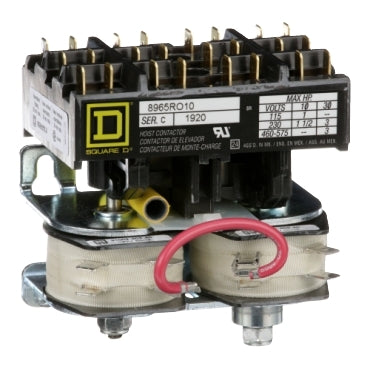

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 8965RO10V02

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Square D 8965RO10V02 Documents

Datasheet More Info

Overview

Details for 8965RO10V02

HOIST CONTACTOR 600VAC R +OPTIONS

Poles description : 3P
Control circuit voltage : 110 V AC 50 Hz, 120 V AC 60 Hz,
Phase : 3 phases
product certifications : CSA,UL listed

8965 reversing hoist contactors are designed for control of hoists, overhead doors, small elevators and commercial laundry equipment. They are rated to perform in the short periods of jogging experienced in hoist service. This 3 pole contactor has ratings of 1 HP at 115 VAC and 2 HP at 230 VAC single phase. Has ratings of 5 HP at 230 HP and 7.5 HP at 460 VAC and 575 VAC poly phase. These contactors must be mounted upright on the vertical plane. The contactors will not operate properly when mounted in any other position. The replaceable coil is available with a variety of coil voltages. This device has a 110/240 VAC 50/60 Hz coil. The power terminals have quick connect terminals. This device is without jumper straps. This reversing contactor doesn't have an enclosure. Reversing contactor is 3.31 inches tall, 3.31 inches wide and 3.03 inches deep. Auxiliary contacts are available for these contactors. 8965DPR reversing hoist contactors are UL component recognized and CSA certified.

Specifications

Product or Component Type: Reversing Hoist Contactor
Maximum Horse Power Rating: 1 hp 115 V AC;1 phase;1.5 hp 230 V AC;1 phase;3 hp 230 V AC;3 phase;3 hp 460 V AC;3 phase;3 hp 575 V AC;3 phase
Product Certifications: CSA;UL Listed
poles description: 3P
[Uc] control circuit voltage: 110 V AC 50 Hz;120 V AC 60 Hz
Phase: 3 phase
Range of Product: RO
Category: 21406-8965 R - REVERSING HOIST CONTACTORS
Discount Schedule: CP1
GTIN: 785901032168
Returnability: Yes
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 3.70 in (9.398 cm)
Package 1 Width: 4.80 in (12.192 cm)
Package 1 Length: 6.50 in (16.51 cm)
Package 1 Weight: 29.12 oz (825.538 g)
Unit Type of Package 2: CAR
Number of Units in Package 2: 8
Package 2 Height: 13.00 in (33.02 cm)
Package 2 Width: 13.00 in (33.02 cm)
Package 2 Length: 16.50 in (41.91 cm)
Package 2 Weight: 14.40 lb(US) (6.532 kg)
Warranty: 18 months
