8965DPR33V02 | Class 8965 Type DPR Reversing/Hoist Contactor, 25A, 600 VAC, Angled | Square D by Schneider Electric

Brand: Square DSKU: 8965DPR33V02

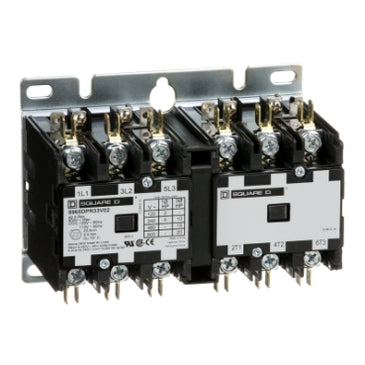

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 8965DPR33V02

Jump to: Overview & Specifications Reviews

Overview Details for 8965DPR33V02

Class 8965 Type DPR Reversing/Hoist Contactor, 25A, 600 VAC, Angled

Class 8965 Type DPR Reversing/Hoist Contactor

25A
600 VAC
Angled

8965 reversing hoist contactors are designed for control of hoists, overhead doors, small elevators and commercial laundry equipment. They are rated to perform in the short periods of jogging experienced in hoist service. This 3 pole contactor has ratings of 2 HP at 115 VAC and 5 HP at 230 VAC single phase. Has ratings of 10 HP at 230 HP and 15 HP at 460 VAC and 575 VAC poly phase. The replaceable coil is available with a variety of coil voltages. This device has a 110/240 VAC 50/60 Hz coil. This reversing contactor doesn't have an enclosure. Reversing contactor is 3.98 inches tall, 5.87 inches wide and 3.07 inches deep. Auxiliary contacts are available for these contactors. 8965DPR reversing hoist contactors are UL component recognized and CSA certified.

Specifications

Product or Component Type: Reversing Hoist Contactor
Line Rated Current: 30 A
Maximum Horse Power Rating: 2 hp 115 V AC;1 phase;5 hp 230 V AC;1 phase;10 hp 230 V AC;3 phase;15 hp 460 V AC;3 phase;15 hp 575 V AC;3 phase
Product Certifications: UL Listed;CSA
[Ue] rated operational voltage: 600 V AC
poles description: 3P
[Uc] control circuit voltage: 110 V AC 50 Hz;120 V AC 60 Hz
Phase: 3 phase
Range of Product: DPR
Category: 21403-8965DPR1>DPR4 - 20A>40A REV HOIST
Discount Schedule: CP1
GTIN: 785901081364
Returnability: Yes
Country of origin: CN
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 5.00 in (12.7 cm)
Package 1 Width: 5.00 in (12.7 cm)
Package 1 Length: 6.50 in (16.51 cm)
Package 1 Weight: 2.40 lb(US) (1.089 kg)
Warranty: 18 months
