8911DPSO13V02 | Definite Purpose Starter, 20A, Open, 110V 50Hz, 120V 60 Hz, 3-Poles, 3-Phase | Square D

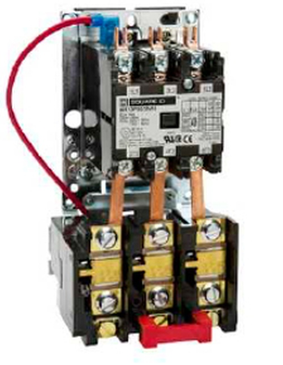

Square D | 8911DPSO13V02

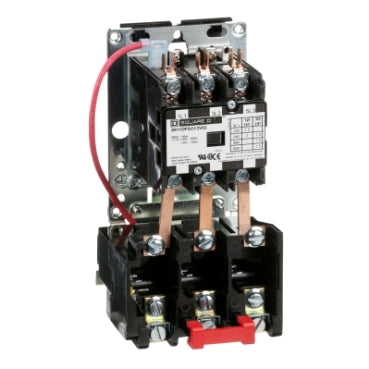

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 8911DPSO13V02

Documents and manuals

Square D 8911DPSO13V02 Documents

Overview

Details for 8911DPSO13V02

Definite Purpose Starter, 20A, Open, 110V 50Hz, 120V 60 Hz, 3-Poles, 3-Phase

Definite Purpose Starter
  • Line Rated Current: 20A
  • Poles Description: 3-Pole
  • Number of Phases: 3-Phase
  • Degree of Protection: Open Device
  • Control Circuit Voltage: 110V AC 50 Hz, 120V AC 60 Hz
8911 definite purpose starters are inexpensive starters for applications with relatively low duty cycles. Typical applications include air compressors, agricultural equipment, pumps, and HVAC equipment. This three pole definite purpose starter has a full load rating of 20 amperes. This starter has ratings of 1.5 HP at 115 VAC and 3 HP at 230 VAC single phase. It has a 7.5 HP at 230 VAC, 460 VAC and 575 VAC poly phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 110/120 VAC 50/60 Hz coil. The starter has straight through wiring. The melting alloy type overload relay uses Type B thermal units to sense over current conditions. This starter doesn't have an enclosure. Enclosures are available. Starter is 7.0 inches tall, 3.5 inches wide and 4.0 inches deep. Auxiliary contacts are available for these starters. 8911DPS definite purpose starters are UL component recognized.

Specifications

Product
Definite Purpose Starter
Ampere Rating
20 A
Horsepower Rating
3 hp 230 V AC;1 phase;7.5 hp 230 V AC;3 phase;1.5 hp 115 V AC;1 phase;7.5 hp 460 V AC;3 phase;7.5 hp 575 V AC;3 phase
Maximum Voltage Rating
600 V AC
Control Circuit Voltage
110 V AC 50 Hz;120 V AC 60 Hz
Phase
3 phase
Enclosure Rating
Not rated (open device)
Locked Rotor Amperes
120 A 230 V AC;100 A 460 V AC;80 A 575 V AC
Number of Poles
3P
Range
DPS
Overload Type
Melting alloy
Number of Thermal Units
3
Category
21381-8911 DP
Discount Schedule
CP1
GTIN
785901116752
Returnability
Yes
Country of origin
CN
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
4.70 in (11.938 cm)
Package 1 Width
4.80 in (12.192 cm)
Package 1 Length
7.70 in (19.558 cm)
Package 1 Weight
2.26 lb(US) (1.025 kg)
Warranty
18 months
