8911DPSG42V09 | Definite Purpose Starter, 40A, NEMA 1, 220V 50Hz, 208-240V 60 Hz, 2-Poles, 1-Phase | Square D

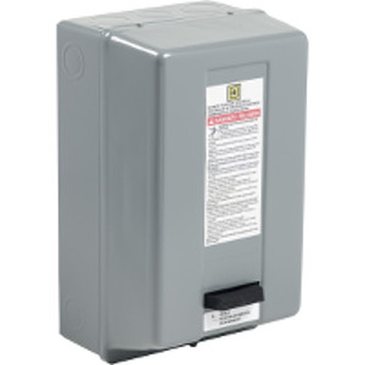

Square D | 8911DPSG42V09

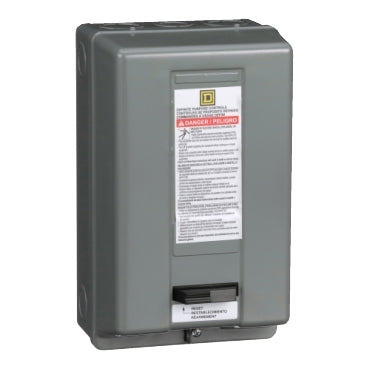

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 8911DPSG42V09

Documents and manuals

Square D 8911DPSG42V09 Documents

Overview

Details for 8911DPSG42V09

Definite Purpose Starter, 40A, NEMA 1, 220V 50Hz, 208-240V 60 Hz, 2-Poles, 1-Phase

Definite Purpose Starter
  • Line Rated Current: 40A
  • Poles Description: 2-Pole
  • Number of Phases: 1-Phase
  • Degree of Protection: NEMA 1
  • Control Circuit Voltage: 220V AC 50 Hz, 208-240V AC 60 Hz
8911 definite purpose starters are inexpensive starters for applications with relatively low duty cycles. Typical applications include air compressors, agricultural equipment, pumps, and HVAC equipment. This two pole definite purpose starter has a full load rating of 40 amperes. This starter has ratings of 3 HP at 115 VAC and 7.5 HP at 230 VAC single phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 220/208 to 240 VAC 50/60 Hz coil. The starter has straight through wiring. The melting alloy type overload relay uses Type B thermal units to sense over current conditions. A painted sheet steel NEMA 1 general purpose enclosure is used to protect this definite purpose starter. Enclosure is 8.50 inches tall, 4.84 inches wide and 4.02 inches deep. Auxiliary contacts are available for these starters. 8911DPS definite purpose starters are UL component recognized.

Specifications

Product
Definite Purpose Starter
Ampere Rating
40 A
Horsepower Rating
3 hp 115 V AC;1 phase;7.5 hp 230 V AC;1 phase
Maximum Voltage Rating
600 V AC
Control Circuit Voltage
220 V AC 50 Hz;208...240 V AC 60 Hz
Phase
1 phase
Enclosure Material
Painted sheet steel
Enclosure Rating
NEMA 1
Locked Rotor Amperes
240 A 230 V AC;200 A 460 V AC;160 A 575 V AC
Number of Poles
2P
Range
DPS
Overload Type
Melting alloy
Number of Thermal Units
1
Category
21381-8911 DP
Discount Schedule
CP1
GTIN
785901724766
Returnability
Yes
Country of origin
CN
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
6.50 in (16.51 cm)
Package 1 Width
7.00 in (17.78 cm)
Package 1 Length
11.30 in (28.702 cm)
Package 1 Weight
5.83 lb(US) (2.644 kg)
Warranty
18 months
